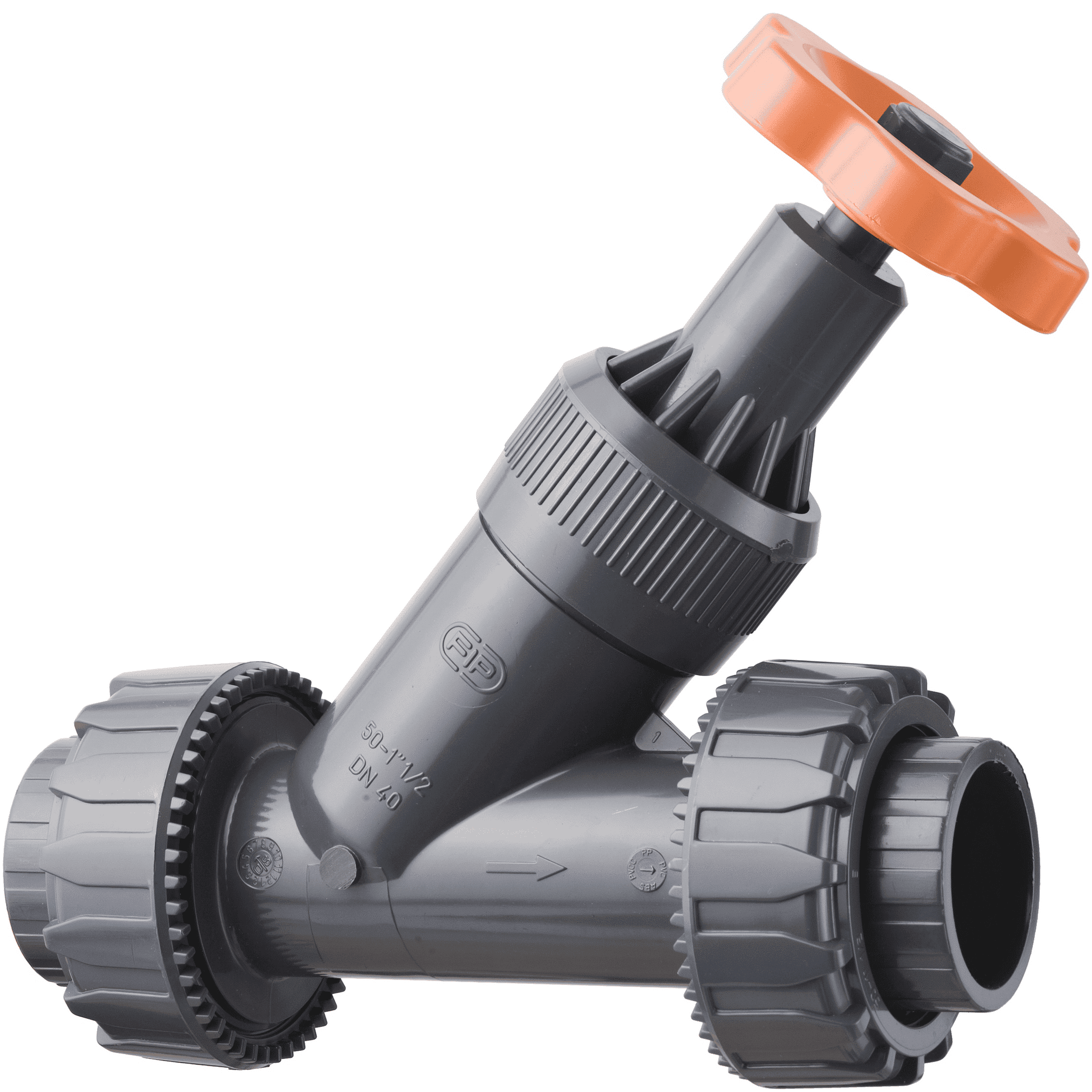

Snedsätesventil Invändig lim, union

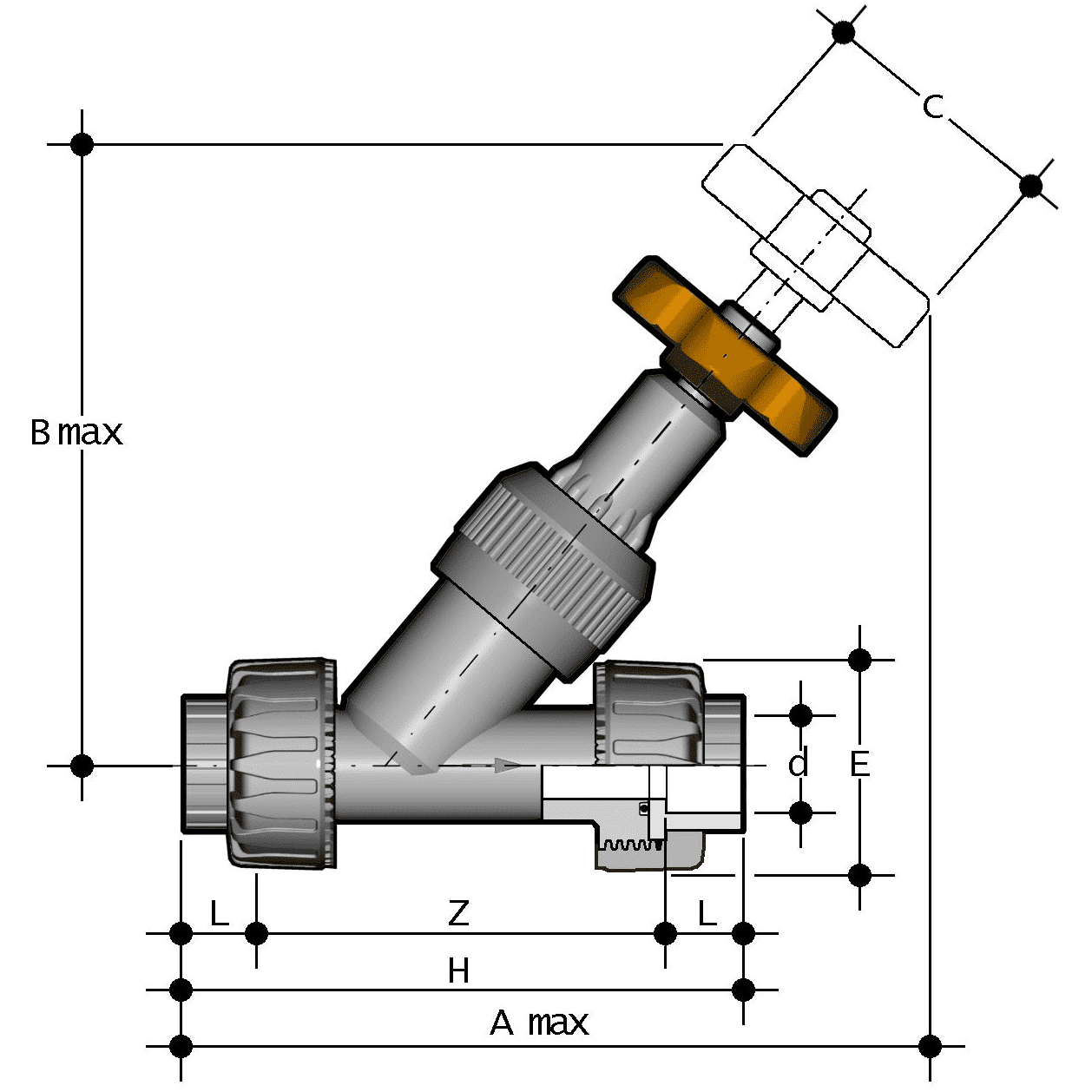

| Artikelnummer | RSK | d | DN | B max | C | E | L | Z | H | A max. | Filer |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VVUIV016 | 4307006 | 16 | 10 | 124 | 60 | 55 | 14 | 107 | 135 | 170 | CAD/Step |
| VVUIV020 | 4307007 | 20 | 15 | 124 | 60 | 55 | 16 | 103 | 135 | 173 | CAD/Step |
| VVUIV025 | 4307008 | 25 | 20 | 146 | 60 | 66 | 19 | 120 | 158 | 197 | CAD/Step |
| VVUIV032 | 4307009 | 32 | 25 | 173 | 70 | 75 | 22 | 132 | 176 | 223 | CAD/Step |
| VVUIV040 | 4307010 | 40 | 32 | 195 | 85 | 87 | 26 | 155 | 207 | 258 | CAD/Step |
| VVUIV050 | 4307011 | 50 | 40 | 222 | 105 | 100 | 31 | 181 | 243 | 295 | CAD/Step |
| VVUIV063 | 4307012 | 63 | 50 | 269 | 130 | 120 | 38 | 222 | 298 | 359 | CAD/Step |
