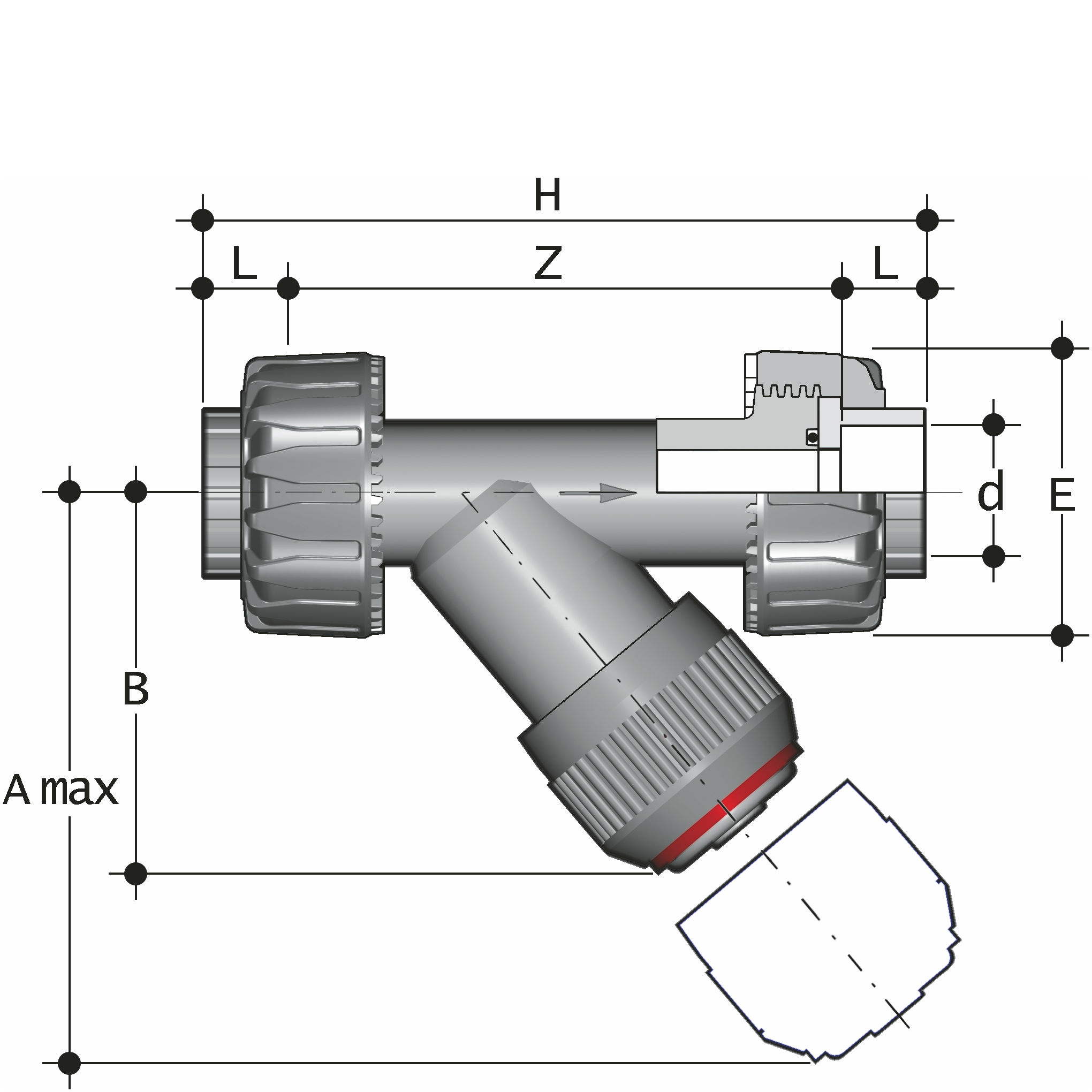

Backventil invändig lim, union
| Artikelnummer | RSK | d | DN | A max | B | E | L | Z | H | Vikt | Filer |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VRUIV016 | 4966405 | 16 | 10 | 125 | 72 | 55 | 14 | 107 | 135 | 218 g | CAD/Step |
| VRUIV020 | 4966406 | 20 | 15 | 125 | 72 | 55 | 16 | 103 | 135 | 226 g | CAD/Step |
| VRUIV025 | 4966407 | 25 | 20 | 145 | 84 | 66 | 19 | 120 | 158 | 388 g | CAD/Step |
| VRUIV032 | 4966408 | 32 | 25 | 165 | 95 | 75 | 22 | 132 | 176 | 606 g | CAD/Step |
| VRUIV040 | 4966409 | 40 | 32 | 190 | 111 | 87 | 26 | 155 | 207 | 923 g | CAD/Step |
| VRUIV050 | 4966410 | 50 | 40 | 210 | 120 | 100 | 31 | 181 | 243 | 1335 g | CAD/Step |
| VRUIV063 | 4966411 | 63 | 50 | 240 | 139 | 120 | 38 | 221.6 | 298 | 2313 g | CAD/Step |
| Artikelnummer | VRUIV016 |
| RSK | 4966405 |
| d | 16 |
| DN | 10 |
| A max | 125 |
| B | 72 |
| E | 55 |
| L | 14 |
| Z | 107 |
| H | 135 |
| Vikt | 218 g |
| Artikelnummer | VRUIV020 |
| RSK | 4966406 |
| d | 20 |
| DN | 15 |
| A max | 125 |
| B | 72 |
| E | 55 |
| L | 16 |
| Z | 103 |
| H | 135 |
| Vikt | 226 g |
| Artikelnummer | VRUIV025 |
| RSK | 4966407 |
| d | 25 |
| DN | 20 |
| A max | 145 |
| B | 84 |
| E | 66 |
| L | 19 |
| Z | 120 |
| H | 158 |
| Vikt | 388 g |
| Artikelnummer | VRUIV032 |
| RSK | 4966408 |
| d | 32 |
| DN | 25 |
| A max | 165 |
| B | 95 |
| E | 75 |
| L | 22 |
| Z | 132 |
| H | 176 |
| Vikt | 606 g |
| Artikelnummer | VRUIV040 |
| RSK | 4966409 |
| d | 40 |
| DN | 32 |
| A max | 190 |
| B | 111 |
| E | 87 |
| L | 26 |
| Z | 155 |
| H | 207 |
| Vikt | 923 g |
| Artikelnummer | VRUIV050 |
| RSK | 4966410 |
| d | 50 |
| DN | 40 |
| A max | 210 |
| B | 120 |
| E | 100 |
| L | 31 |
| Z | 181 |
| H | 243 |
| Vikt | 1335 g |
| Artikelnummer | VRUIV063 |
| RSK | 4966411 |
| d | 63 |
| DN | 50 |
| A max | 240 |
| B | 139 |
| E | 120 |
| L | 38 |
| Z | 221.6 |
| H | 298 |
| Vikt | 2313 g |
