TREL17

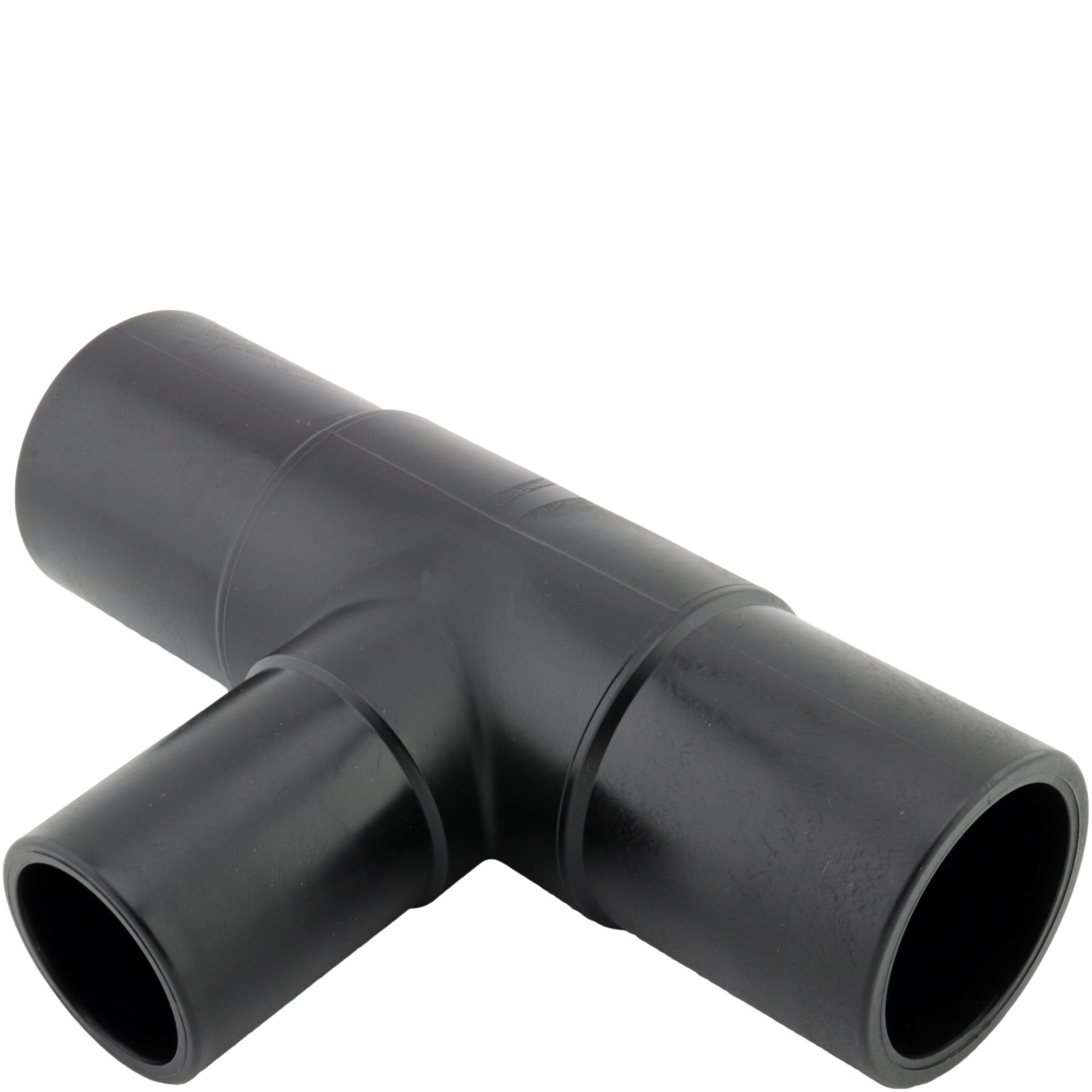

T-rör reducerat SDR17

PE100-RC T-rör 90° Reducerat
Långa ändar
SDR17: Vatten PN 10 Gas PN 6

Välj modell:

Modeller

Visa alla mått +

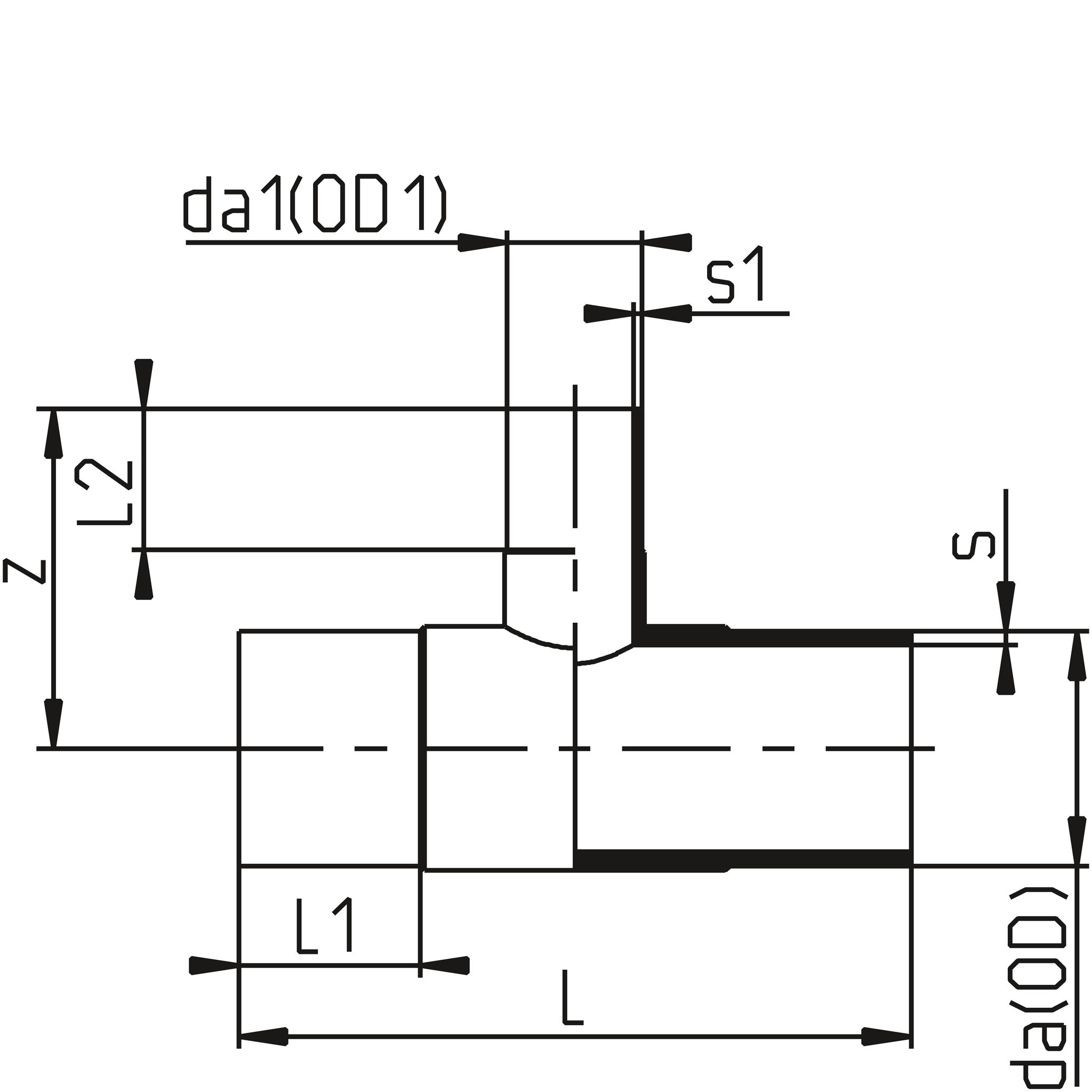

Artikelnummer	RSK	da*da1	SDR	s	z	L	s1	L1	L2	Filer
TREL17-140-075	077715140	140x75	SDR17	8.3	177	390	4.5	104	77
TREL17-180-110	077715180	180x110	SDR17	10.7	230	460	6.6	117	98
TREL17-225-063	077720225	225x63	SDR17	13.4	245	524	5.8	130	68
TREL17-280-110	077719280	280x110	SDR17	16.6	326	653	6.6	126
TREL17-280-160		280x160	SDR17	16.6	280	642	9.5	146	118
TREL17-RC-063-050	077712063	63×50	SDR17	3.8	100	213	3	60	56	CAD/Step
TREL17-RC-075-050	077713075	75×50	SDR17	4.5	111	260	3	72.5	56	CAD/Step
TREL17-RC-075-063	077712075	75×63	SDR17	4.5	117	255	3.8	70	63	CAD/Step
TREL17-RC-090-063	077713090	90×63	SDR17	5.4	137	264	3.8	79	66	CAD/Step
TREL17-RC-090-075	077712090	90×75	SDR17	5.4	138	272	4.5	73	68	CAD/Step
TREL17-RC-110-063	077714110	110×63	SDR17	6.6	156.5	305	3.8	86.5	65
TREL17-RC-110-075	077713110	110×75	SDR17	6.6	152	307	4.5	83	68
TREL17-RC-110-090	077712110	110×90	SDR17	6.6	155	312	5.4	84	79
TREL17-RC-125-063	077715125	125x63	SDR17	7.4	170	350	3.8	110	70
TREL17-RC-125-090	077713125	125x90	SDR17	7.4	170	348	5.4	109	83.5
TREL17-RC-125-110	077712125	125×110	SDR17	7.4	167	340	6.6	90	83
TREL17-RC-160-063	077717160	160×63	SDR17	9.5	172.5	340	3.8	97	67
TREL17-RC-160-075	077716160	160×75	SDR17	9.5	179	344	4.5	101	76
TREL17-RC-160-090	077715160	160×90	SDR17	9.5	177	343	5.4	100	80
TREL17-RC-160-110	077714160	160×110	SDR17	9.5	200	394	6.6	100	86
TREL17-RC-180-090	077716180	180×90	SDR17	10.7	200	420	5.4	136	97
TREL17-RC-180-160	077712180	180×160	SDR17	10.7	204	412	9.5	105	94
TREL17-RC-200-063	077719200	200×63	SDR17	11.9	225	550	3.8	134	80	CAD/Step
TREL17-RC-200-090	077717200	200×90	SDR17	11.9	225	550	5.4	134	95	CAD/Step
TREL17-RC-200-110	077716200	200×110	SDR17	11.9	240	550	6.6	134	103
TREL17-RC-200-125	077715200	200×125	SDR17	11.9	245	550	7.4	134	110	CAD/Step
TREL17-RC-200-160	077713200	200×160	SDR17	11.9	270	550	9.5	134	114	CAD/Step
TREL17-RC-225-075	077719225	225×75	SDR17	13.4	226	440	4.5	120	75	CAD/Step
TREL17-RC-225-090	077718225	225×90	SDR17	13.4	224	440	5.4	120	79	CAD/Step
TREL17-RC-225-110	077717225	225×110	SDR17	13.4	226	439	6.6	120	85	CAD/Step
TREL17-RC-225-160	077714225	225×160	SDR17	13.4	246	486	9.5	120	98	CAD/Step
TREL17-RC-225-180	077713225	225×180	SDR17	13.4	280	554	10.7	132	135	CAD/Step
TREL17-RC-250-110	077718250	250x110	SDR17	14.8	245	625	6.6	148	86	CAD/Step
TREL17-RC-250-160	077715250	250x160	SDR17	14.8	270	625	9.5	148	100	CAD/Step
TREL17-RC-250-200	077713250	250x200	SDR17	14.8	290	625	11.9	148	116	CAD/Step
TREL17-RC-315-090	077721315	315x90	SDR17	18.7	290	545	5.4	170	90	CAD/Step
TREL17-RC-315-110	077720315	315×110	SDR17	18.7	290	546	6.6	170	100	CAD/Step
TREL17-RC-315-160	077717315	315×160	SDR17	18.7	310	575	9.5	170	120	CAD/Step
TREL17-RC-315-200	077715315	315x200	SDR17	18.7	331	640	11.9	170	129.5	CAD/Step
TREL17-RC-315-225	077714315	315×225	SDR17	18.7	335	638	13.4	170	145	CAD/Step
TREL17-RC-315-250	077713315	315×250	SDR17	18.7	333	670	14.8	170	150	CAD/Step
TREL17-RC-355-160		355x160	SDR17	21.1	325	874	9.5	188	103
TREL17-RC-355-200		355x200	SDR17	21.1	350	874	13.4	188	125
TREL17-RC-355-250		355x250	SDR17	21.1	360	874	14.8	188	134
TREL17-RC-400-110		400x110	SDR17	23.7	330	940	6.6	198	87
TREL17-RC-400-160		400x160	SDR17	23.7	350	940	9.5	198	103
TREL17-RC-400-200		400x200	SDR17	23.7	365	940	11.9	198	117
TREL17-RC-400-225		400x225	SDR17	23.7	375	940	13.4	198	125
TREL17-RC-400-315		400x315	SDR17	23.7	415	940	18.7	198	155

Specifikationer


Artikelnummer	TREL17-140-075
RSK	077715140
da*da1	140x75
SDR	SDR17
s	8.3
z	177
L	390
s1	4.5
L1	104
L2	77


Artikelnummer	TREL17-180-110
RSK	077715180
da*da1	180x110
SDR	SDR17
s	10.7
z	230
L	460
s1	6.6
L1	117
L2	98


Artikelnummer	TREL17-225-063
RSK	077720225
da*da1	225x63
SDR	SDR17
s	13.4
z	245
L	524
s1	5.8
L1	130
L2	68


Artikelnummer	TREL17-280-110
RSK	077719280
da*da1	280x110
SDR	SDR17
s	16.6
z	326
L	653
s1	6.6
L1	126


Artikelnummer	TREL17-280-160
RSK
da*da1	280x160
SDR	SDR17
s	16.6
z	280
L	642
s1	9.5
L1	146
L2	118


Artikelnummer	TREL17-RC-063-050
RSK	077712063
da*da1	63×50
SDR	SDR17
s	3.8
z	100
L	213
s1	3
L1	60
L2	56


Artikelnummer	TREL17-RC-075-050
RSK	077713075
da*da1	75×50
SDR	SDR17
s	4.5
z	111
L	260
s1	3
L1	72.5
L2	56


Artikelnummer	TREL17-RC-075-063
RSK	077712075
da*da1	75×63
SDR	SDR17
s	4.5
z	117
L	255
s1	3.8
L1	70
L2	63


Artikelnummer	TREL17-RC-090-063
RSK	077713090
da*da1	90×63
SDR	SDR17
s	5.4
z	137
L	264
s1	3.8
L1	79
L2	66


Artikelnummer	TREL17-RC-090-075
RSK	077712090
da*da1	90×75
SDR	SDR17
s	5.4
z	138
L	272
s1	4.5
L1	73
L2	68


Artikelnummer	TREL17-RC-110-063
RSK	077714110
da*da1	110×63
SDR	SDR17
s	6.6
z	156.5
L	305
s1	3.8
L1	86.5
L2	65


Artikelnummer	TREL17-RC-110-075
RSK	077713110
da*da1	110×75
SDR	SDR17
s	6.6
z	152
L	307
s1	4.5
L1	83
L2	68


Artikelnummer	TREL17-RC-110-090
RSK	077712110
da*da1	110×90
SDR	SDR17
s	6.6
z	155
L	312
s1	5.4
L1	84
L2	79


Artikelnummer	TREL17-RC-125-063
RSK	077715125
da*da1	125x63
SDR	SDR17
s	7.4
z	170
L	350
s1	3.8
L1	110
L2	70


Artikelnummer	TREL17-RC-125-090
RSK	077713125
da*da1	125x90
SDR	SDR17
s	7.4
z	170
L	348
s1	5.4
L1	109
L2	83.5


Artikelnummer	TREL17-RC-125-110
RSK	077712125
da*da1	125×110
SDR	SDR17
s	7.4
z	167
L	340
s1	6.6
L1	90
L2	83


Artikelnummer	TREL17-RC-160-063
RSK	077717160
da*da1	160×63
SDR	SDR17
s	9.5
z	172.5
L	340
s1	3.8
L1	97
L2	67


Artikelnummer	TREL17-RC-160-075
RSK	077716160
da*da1	160×75
SDR	SDR17
s	9.5
z	179
L	344
s1	4.5
L1	101
L2	76


Artikelnummer	TREL17-RC-160-090
RSK	077715160
da*da1	160×90
SDR	SDR17
s	9.5
z	177
L	343
s1	5.4
L1	100
L2	80


Artikelnummer	TREL17-RC-160-110
RSK	077714160
da*da1	160×110
SDR	SDR17
s	9.5
z	200
L	394
s1	6.6
L1	100
L2	86


Artikelnummer	TREL17-RC-180-090
RSK	077716180
da*da1	180×90
SDR	SDR17
s	10.7
z	200
L	420
s1	5.4
L1	136
L2	97


Artikelnummer	TREL17-RC-180-160
RSK	077712180
da*da1	180×160
SDR	SDR17
s	10.7
z	204
L	412
s1	9.5
L1	105
L2	94


Artikelnummer	TREL17-RC-200-063
RSK	077719200
da*da1	200×63
SDR	SDR17
s	11.9
z	225
L	550
s1	3.8
L1	134
L2	80


Artikelnummer	TREL17-RC-200-090
RSK	077717200
da*da1	200×90
SDR	SDR17
s	11.9
z	225
L	550
s1	5.4
L1	134
L2	95


Artikelnummer	TREL17-RC-200-110
RSK	077716200
da*da1	200×110
SDR	SDR17
s	11.9
z	240
L	550
s1	6.6
L1	134
L2	103


Artikelnummer	TREL17-RC-200-125
RSK	077715200
da*da1	200×125
SDR	SDR17
s	11.9
z	245
L	550
s1	7.4
L1	134
L2	110


Artikelnummer	TREL17-RC-200-160
RSK	077713200
da*da1	200×160
SDR	SDR17
s	11.9
z	270
L	550
s1	9.5
L1	134
L2	114


Artikelnummer	TREL17-RC-225-075
RSK	077719225
da*da1	225×75
SDR	SDR17
s	13.4
z	226
L	440
s1	4.5
L1	120
L2	75


Artikelnummer	TREL17-RC-225-090
RSK	077718225
da*da1	225×90
SDR	SDR17
s	13.4
z	224
L	440
s1	5.4
L1	120
L2	79


Artikelnummer	TREL17-RC-225-110
RSK	077717225
da*da1	225×110
SDR	SDR17
s	13.4
z	226
L	439
s1	6.6
L1	120
L2	85


Artikelnummer	TREL17-RC-225-160
RSK	077714225
da*da1	225×160
SDR	SDR17
s	13.4
z	246
L	486
s1	9.5
L1	120
L2	98


Artikelnummer	TREL17-RC-225-180
RSK	077713225
da*da1	225×180
SDR	SDR17
s	13.4
z	280
L	554
s1	10.7
L1	132
L2	135


Artikelnummer	TREL17-RC-250-110
RSK	077718250
da*da1	250x110
SDR	SDR17
s	14.8
z	245
L	625
s1	6.6
L1	148
L2	86


Artikelnummer	TREL17-RC-250-160
RSK	077715250
da*da1	250x160
SDR	SDR17
s	14.8
z	270
L	625
s1	9.5
L1	148
L2	100


Artikelnummer	TREL17-RC-250-200
RSK	077713250
da*da1	250x200
SDR	SDR17
s	14.8
z	290
L	625
s1	11.9
L1	148
L2	116


Artikelnummer	TREL17-RC-315-090
RSK	077721315
da*da1	315x90
SDR	SDR17
s	18.7
z	290
L	545
s1	5.4
L1	170
L2	90


Artikelnummer	TREL17-RC-315-110
RSK	077720315
da*da1	315×110
SDR	SDR17
s	18.7
z	290
L	546
s1	6.6
L1	170
L2	100


Artikelnummer	TREL17-RC-315-160
RSK	077717315
da*da1	315×160
SDR	SDR17
s	18.7
z	310
L	575
s1	9.5
L1	170
L2	120


Artikelnummer	TREL17-RC-315-200
RSK	077715315
da*da1	315x200
SDR	SDR17
s	18.7
z	331
L	640
s1	11.9
L1	170
L2	129.5


Artikelnummer	TREL17-RC-315-225
RSK	077714315
da*da1	315×225
SDR	SDR17
s	18.7
z	335
L	638
s1	13.4
L1	170
L2	145


Artikelnummer	TREL17-RC-315-250
RSK	077713315
da*da1	315×250
SDR	SDR17
s	18.7
z	333
L	670
s1	14.8
L1	170
L2	150


Artikelnummer	TREL17-RC-355-160
RSK
da*da1	355x160
SDR	SDR17
s	21.1
z	325
L	874
s1	9.5
L1	188
L2	103


Artikelnummer	TREL17-RC-355-200
RSK
da*da1	355x200
SDR	SDR17
s	21.1
z	350
L	874
s1	13.4
L1	188
L2	125


Artikelnummer	TREL17-RC-355-250
RSK
da*da1	355x250
SDR	SDR17
s	21.1
z	360
L	874
s1	14.8
L1	188
L2	134


Artikelnummer	TREL17-RC-400-110
RSK
da*da1	400x110
SDR	SDR17
s	23.7
z	330
L	940
s1	6.6
L1	198
L2	87


Artikelnummer	TREL17-RC-400-160
RSK
da*da1	400x160
SDR	SDR17
s	23.7
z	350
L	940
s1	9.5
L1	198
L2	103


Artikelnummer	TREL17-RC-400-200
RSK
da*da1	400x200
SDR	SDR17
s	23.7
z	365
L	940
s1	11.9
L1	198
L2	117


Artikelnummer	TREL17-RC-400-225
RSK
da*da1	400x225
SDR	SDR17
s	23.7
z	375
L	940
s1	13.4
L1	198
L2	125


Artikelnummer	TREL17-RC-400-315
RSK
da*da1	400x315
SDR	SDR17
s	23.7
z	415
L	940
s1	18.7
L1	198
L2	155
