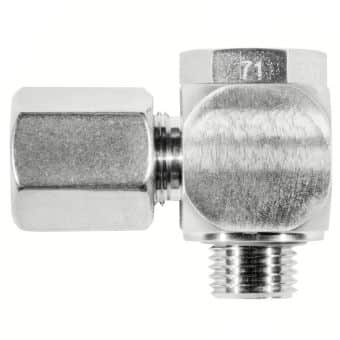

Name: SOL 52824
SKU: 92458

Visa alla mått +

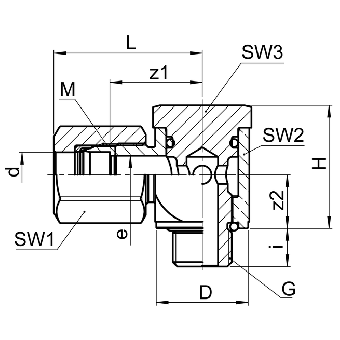

Artikelnummer	d	G	bar	M	SW1/SW2/SW3	L	D	H	i	z1/z2	e
0782841100	6	1/8	400	M10x1	14/16/14	28	18	21	7.5	18/10.5	4.5
0782841135	6.35	1/8	400	M10x1	14/16/14	29	18	21	10	18/10.5	4.5
0782841160	8	1/8	330	M12x1	17/19/14	29	18	22	6.5	19/10.5	4.5
0782841170	8	1/4	330	M12x1	17/24/19	31	21	27	11	20.5/12	7
0782841230	9.52	1/4	330	M14x1	19/24/19	33.5	21	27	9	20.5/12	7
0782841270	10	1/4	330	M14x1	19/24/19	33	21	27	11	20.5/12	7
0782841390	12	3/8	330	M16x1	22/30/24	36.5	28	35	12	24/15	9
0782841434	12.7	1/2	330	M20x1.5	27/35/27	43.5	32	41.5	13.5	28.5/18	11
0782841534	15	1/2	250	M20x1.5	27/35/27	43	32	41.5	13	28/18	12
0782841566	16	1/2	200	M24x1.5	30/35/27	46	32	43.5	11	28.5/18	12
0782841646	18	1/2	200	M24x1.5	30/35/27	45	32	43.5	11	28.5/18	12

Datablad

Produktblad

SOL 52824
