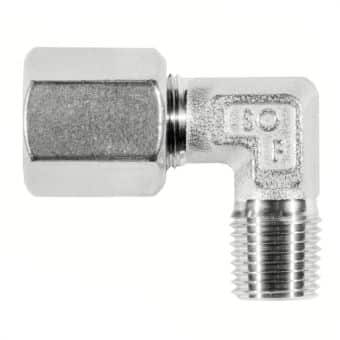

SOL 52421 NPT

Vinkelunion utv. gänga

  • Syrafast-vinkelunion utv. gänga NPT
Nollställ
Visa alla mått +

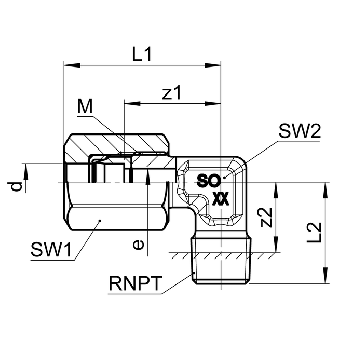

Artikelnummer RSK dRbarMSW1/SW2L1/L2z1/z2eFiler
0782402100 6NPT1/8400M10x114/926/17.516/13.54.5
0782402135 6.35NPT1/8330M10x114/927/17.516.5/13.54.5
0782402170 8NPT1/4330M12x117/1028/22.518/18.56.5
0782402230 9.52NPT1/4330M14x119/1233.5/2521/198
0782402270 10NPT1/4330M14x119/1233/2520.5/198.5
0782402390 12NPT3/8330M16x122/1435/2621.5/2010
0782402434 12.7NPT1/2250M20x1.527/1739.5/29.524.5/21.511
0782402534 15NPT1/2330M20x1.527/1739/29.524/21.513
Artikelnummer 0782402100
RSK
d 6
R NPT1/8
bar 400
M M10x1
SW1/SW2 14/9
L1/L2 26/17.5
z1/z2 16/13.5
e 4.5
Artikelnummer 0782402135
RSK
d 6.35
R NPT1/8
bar 330
M M10x1
SW1/SW2 14/9
L1/L2 27/17.5
z1/z2 16.5/13.5
e 4.5
Artikelnummer 0782402170
RSK
d 8
R NPT1/4
bar 330
M M12x1
SW1/SW2 17/10
L1/L2 28/22.5
z1/z2 18/18.5
e 6.5
Artikelnummer 0782402230
RSK
d 9.52
R NPT1/4
bar 330
M M14x1
SW1/SW2 19/12
L1/L2 33.5/25
z1/z2 21/19
e 8
Artikelnummer 0782402270
RSK
d 10
R NPT1/4
bar 330
M M14x1
SW1/SW2 19/12
L1/L2 33/25
z1/z2 20.5/19
e 8.5
Artikelnummer 0782402390
RSK
d 12
R NPT3/8
bar 330
M M16x1
SW1/SW2 22/14
L1/L2 35/26
z1/z2 21.5/20
e 10
Artikelnummer 0782402434
RSK
d 12.7
R NPT1/2
bar 250
M M20x1.5
SW1/SW2 27/17
L1/L2 39.5/29.5
z1/z2 24.5/21.5
e 11
Artikelnummer 0782402534
RSK
d 15
R NPT1/2
bar 330
M M20x1.5
SW1/SW2 27/17
L1/L2 39/29.5
z1/z2 24/21.5
e 13
