Visa alla mått +

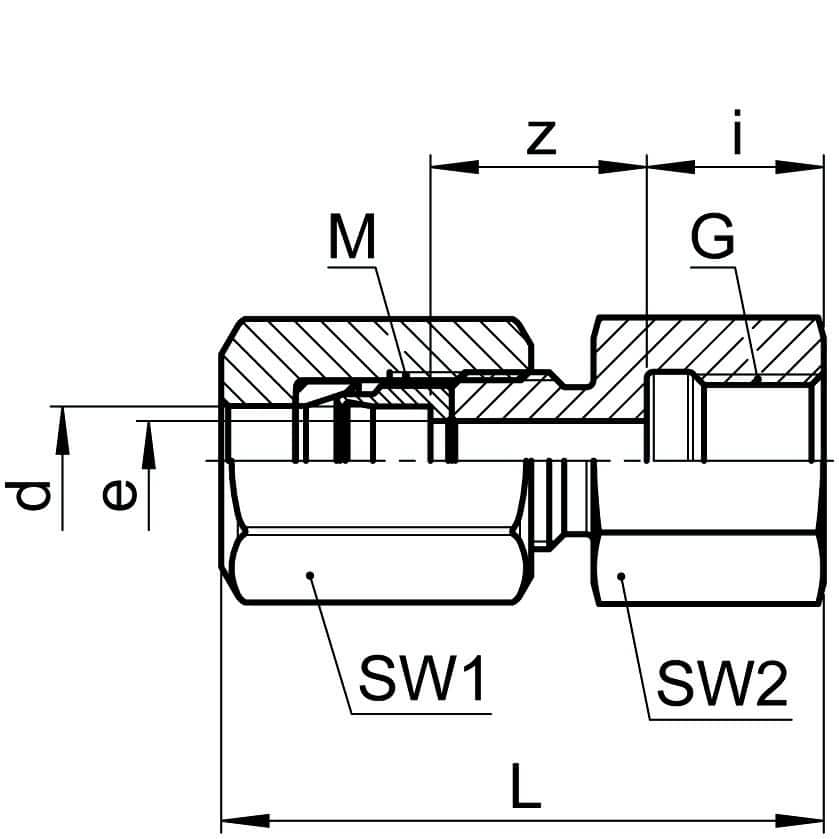

| Artikelnummer | RSK | d | G | bar | M | SW1 | SW2 | L | i | z | e | Filer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0781201100 | 6 | 1/8 | 400 | 10x1 | 14 | 14 | 32 | 10 | 12 | 4.5 | ||
| 0781201110 | 6 | 1/4 | 400 | 10x1 | 14 | 17 | 34 | 11 | 13 | 4.5 | ||
| 0781201120 | 6 | 3/8 | 400 | 10x1 | 14 | 22 | 35 | 12 | 13 | 4.5 | ||
| 0781201125 | 6 | 1/2 | 400 | 10x1 | 14 | 27 | 41 | 14 | 17 | 4.5 | ||
| 0781201170 | 8 | 1/4 | 330 | 12x1 | 17 | 17 | 35.5 | 11 | 14 | 6.5 | ||
| 0781201270 | 10 | 1/4 | 330 | 14x1 | 19 | 17 | 37.5 | 11 | 14 | 8.5 | ||
| 0781201280 | 10 | 3/8 | 330 | 14x1 | 19 | 22 | 38/,5 | 12 | 14 | 8.5 | ||
| 0781201285 | 10 | 1/2 | 330 | 14x1 | 19 | 27 | 40.5 | 14 | 14 | 8.5 | ||
| 0781201380 | 12 | 1/4 | 330 | 16x1 | 22 | 17 | 38.5 | 11 | 14 | 10 | ||
| 0781201390 | 12 | 3/8 | 330 | 16x1 | 22 | 22 | 39.5 | 12 | 14 | 10 | ||
| 0781201400 | 12 | 1/2 | 330 | 16x1 | 22 | 27 | 41.5 | 14 | 14 | 10 | ||
| 0781201534 | 15 | 1/2 | 250 | 20x1,5 | 27 | 27 | 45.5 | 14 | 16.5 | 13 | ||
| 0781201566 | 16 | 1/2 | 200 | 24x1,5 | 30 | 27 | 49 | 14 | 16.5 | 14 | ||
| 0781201646 | 18 | 1/2 | 200 | 24x1,5 | 30 | 27 | 47 | 14 | 16.5 | 15 | ||
| 0781201135 | 6.35 | 1/8 | 400 | 10x1 | 14 | 14 | 32 | 10 | 12 | 4.5 | ||
| 0781201140 | 6.35 | 1/4 | 400 | 10x1 | 14 | 17 | 32 | 11 | 13 | 4.5 | ||
| 0781201145 | 6.35 | 3/8 | 400 | 10x1 | 14 | 22 | 35 | 12 | 13 | 4.5 | ||
| 0781201150 | 6.35 | 1/2 | 400 | 10x1 | 14 | 27 | 41 | 14 | 17 | 4.5 | ||
| 0781201230 | 9.52 | 1/4 | 330 | 14x1 | 19 | 17 | 38 | 11 | 14 | 8 | ||
| 0781201235 | 9.52 | 3/8 | 330 | 14x1 | 19 | 22 | 39 | 12 | 14 | 8 | ||
| 0781201240 | 9.52 | 1/2 | 330 | 14x1 | 19 | 27 | 40 | 14 | 14 | 8 | ||
| 0781201434 | 12.7 | 1/2 | 250 | 20x1,5 | 27 | 27 | 40 | 14 | 16.5 | 11 |
