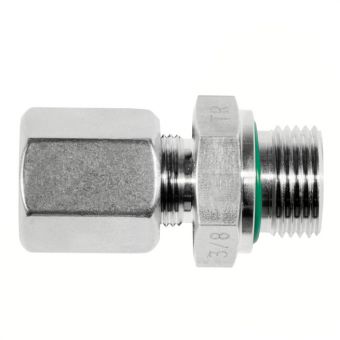

SOL 51124 OR

Union utv. gänga

  • Syrafast-union utv. gänga OR
Nollställ
Visa alla mått +

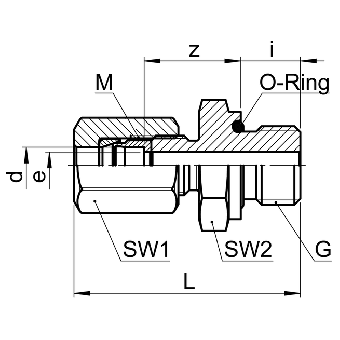

Artikelnummer RSK dGbarMSW1/SW2LDiO-RingzeFiler
0781171100 61/8400M10x114/1432.514.588.73x1.7814.54.5
0781171110 61/4400M10x114/193618.51011.1x1.78164.5
0781171135 6.351/8400M10x114/1431.514.588.73x1.7814.54.5
0781171140 6.351/4400M10x114/193518.51011.1x1.78164.5
0781171170 81/4330M12x117/1937.518.51011.1x1.78176.5
0781171230 9.521/4330M14x119/194018.51011.1x1.78177
0781171235 9.523/8330M14x119/224122.51014x1.7818.58
0781171280 103/8330M14x119/224122.51014/1.7818.58.5
0781171390 123/8330M16x122/224222.51014/1.7818.510
0781171400 121/2330M16x122/2744.5271218.72/2.621910
0781171434 12.71/2330M20x1.527/2749271218.72x2.622211
0781171534 151/2250M20x1.527/2748.5271218.72/2.6221.513
0781171566 161/2200M24x1.530/2752271218.72/2.6221.513
0781171646 181/2200M24x1.530/2750271218.72/2.6221.513
Artikelnummer 0781171100
RSK
d 6
G 1/8
bar 400
M M10x1
SW1/SW2 14/14
L 32.5
D 14.5
i 8
O-Ring 8.73x1.78
z 14.5
e 4.5
Artikelnummer 0781171110
RSK
d 6
G 1/4
bar 400
M M10x1
SW1/SW2 14/19
L 36
D 18.5
i 10
O-Ring 11.1x1.78
z 16
e 4.5
Artikelnummer 0781171135
RSK
d 6.35
G 1/8
bar 400
M M10x1
SW1/SW2 14/14
L 31.5
D 14.5
i 8
O-Ring 8.73x1.78
z 14.5
e 4.5
Artikelnummer 0781171140
RSK
d 6.35
G 1/4
bar 400
M M10x1
SW1/SW2 14/19
L 35
D 18.5
i 10
O-Ring 11.1x1.78
z 16
e 4.5
Artikelnummer 0781171170
RSK
d 8
G 1/4
bar 330
M M12x1
SW1/SW2 17/19
L 37.5
D 18.5
i 10
O-Ring 11.1x1.78
z 17
e 6.5
Artikelnummer 0781171230
RSK
d 9.52
G 1/4
bar 330
M M14x1
SW1/SW2 19/19
L 40
D 18.5
i 10
O-Ring 11.1x1.78
z 17
e 7
Artikelnummer 0781171235
RSK
d 9.52
G 3/8
bar 330
M M14x1
SW1/SW2 19/22
L 41
D 22.5
i 10
O-Ring 14x1.78
z 18.5
e 8
Artikelnummer 0781171280
RSK
d 10
G 3/8
bar 330
M M14x1
SW1/SW2 19/22
L 41
D 22.5
i 10
O-Ring 14/1.78
z 18.5
e 8.5
Artikelnummer 0781171390
RSK
d 12
G 3/8
bar 330
M M16x1
SW1/SW2 22/22
L 42
D 22.5
i 10
O-Ring 14/1.78
z 18.5
e 10
Artikelnummer 0781171400
RSK
d 12
G 1/2
bar 330
M M16x1
SW1/SW2 22/27
L 44.5
D 27
i 12
O-Ring 18.72/2.62
z 19
e 10
Artikelnummer 0781171434
RSK
d 12.7
G 1/2
bar 330
M M20x1.5
SW1/SW2 27/27
L 49
D 27
i 12
O-Ring 18.72x2.62
z 22
e 11
Artikelnummer 0781171534
RSK
d 15
G 1/2
bar 250
M M20x1.5
SW1/SW2 27/27
L 48.5
D 27
i 12
O-Ring 18.72/2.62
z 21.5
e 13
Artikelnummer 0781171566
RSK
d 16
G 1/2
bar 200
M M24x1.5
SW1/SW2 30/27
L 52
D 27
i 12
O-Ring 18.72/2.62
z 21.5
e 13
Artikelnummer 0781171646
RSK
d 18
G 1/2
bar 200
M M24x1.5
SW1/SW2 30/27
L 50
D 27
i 12
O-Ring 18.72/2.62
z 21.5
e 13
