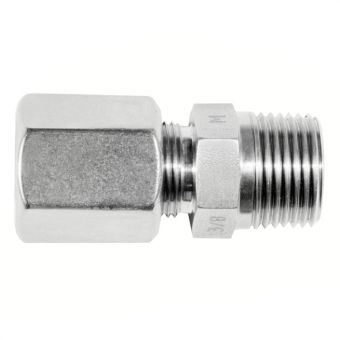

SOL 51121 NPT

Union utv. gänga

  • Syrafast-union utv. gänga NPT
Nollställ
Visa alla mått +

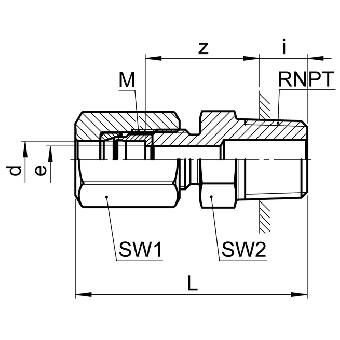

Artikelnummer RSK dRbarMSW1/SW2LizeFiler
0781102100 6NPT1/8400M10x114/1234719.94.5
0781102110 6NPT1/4400M10x114/14391023.24.5
0781102135 6.35NPT1/8400M10x114/12337204.5
0781102140 6.35NPT1/4400M10x114/14381023.54.5
0781102160 8NPT1/8330M12x117/1235.5720.96
0781102170 8NPT1/4330M12x117/1440.51024.26.5
0781102180 8NPT3/8330M12x117/1740.51023.96.5
0781102185 8NPT1/2330M12x117/2246.51427.96.5
0781102230 9.52NPT1/4330M14x119/14471024.58
0781102240 9.52NPT1/2330M14x119/224814288
0781102270 10NPT1/4330M14x119/1442.51024.28.5
0781102285 10NPT1/2330M14x119/2248.51427.98.5
0781102405 12NPT3/4330M16x122/2752.51430.410
0781102434 12.7NPT1/2330M20x1.527/22501430.511
0781102534 15NPT1/2250M20x1.527/22531430.413
0781102566 16NPT1/2200M24x1.530/2457.51431.413.5
Artikelnummer 0781102100
RSK
d 6
R NPT1/8
bar 400
M M10x1
SW1/SW2 14/12
L 34
i 7
z 19.9
e 4.5
Artikelnummer 0781102110
RSK
d 6
R NPT1/4
bar 400
M M10x1
SW1/SW2 14/14
L 39
i 10
z 23.2
e 4.5
Artikelnummer 0781102135
RSK
d 6.35
R NPT1/8
bar 400
M M10x1
SW1/SW2 14/12
L 33
i 7
z 20
e 4.5
Artikelnummer 0781102140
RSK
d 6.35
R NPT1/4
bar 400
M M10x1
SW1/SW2 14/14
L 38
i 10
z 23.5
e 4.5
Artikelnummer 0781102160
RSK
d 8
R NPT1/8
bar 330
M M12x1
SW1/SW2 17/12
L 35.5
i 7
z 20.9
e 6
Artikelnummer 0781102170
RSK
d 8
R NPT1/4
bar 330
M M12x1
SW1/SW2 17/14
L 40.5
i 10
z 24.2
e 6.5
Artikelnummer 0781102180
RSK
d 8
R NPT3/8
bar 330
M M12x1
SW1/SW2 17/17
L 40.5
i 10
z 23.9
e 6.5
Artikelnummer 0781102185
RSK
d 8
R NPT1/2
bar 330
M M12x1
SW1/SW2 17/22
L 46.5
i 14
z 27.9
e 6.5
Artikelnummer 0781102230
RSK
d 9.52
R NPT1/4
bar 330
M M14x1
SW1/SW2 19/14
L 47
i 10
z 24.5
e 8
Artikelnummer 0781102240
RSK
d 9.52
R NPT1/2
bar 330
M M14x1
SW1/SW2 19/22
L 48
i 14
z 28
e 8
Artikelnummer 0781102270
RSK
d 10
R NPT1/4
bar 330
M M14x1
SW1/SW2 19/14
L 42.5
i 10
z 24.2
e 8.5
Artikelnummer 0781102285
RSK
d 10
R NPT1/2
bar 330
M M14x1
SW1/SW2 19/22
L 48.5
i 14
z 27.9
e 8.5
Artikelnummer 0781102405
RSK
d 12
R NPT3/4
bar 330
M M16x1
SW1/SW2 22/27
L 52.5
i 14
z 30.4
e 10
Artikelnummer 0781102434
RSK
d 12.7
R NPT1/2
bar 330
M M20x1.5
SW1/SW2 27/22
L 50
i 14
z 30.5
e 11
Artikelnummer 0781102534
RSK
d 15
R NPT1/2
bar 250
M M20x1.5
SW1/SW2 27/22
L 53
i 14
z 30.4
e 13
Artikelnummer 0781102566
RSK
d 16
R NPT1/2
bar 200
M M24x1.5
SW1/SW2 30/24
L 57.5
i 14
z 31.4
e 13.5
