Reglerventil 90°

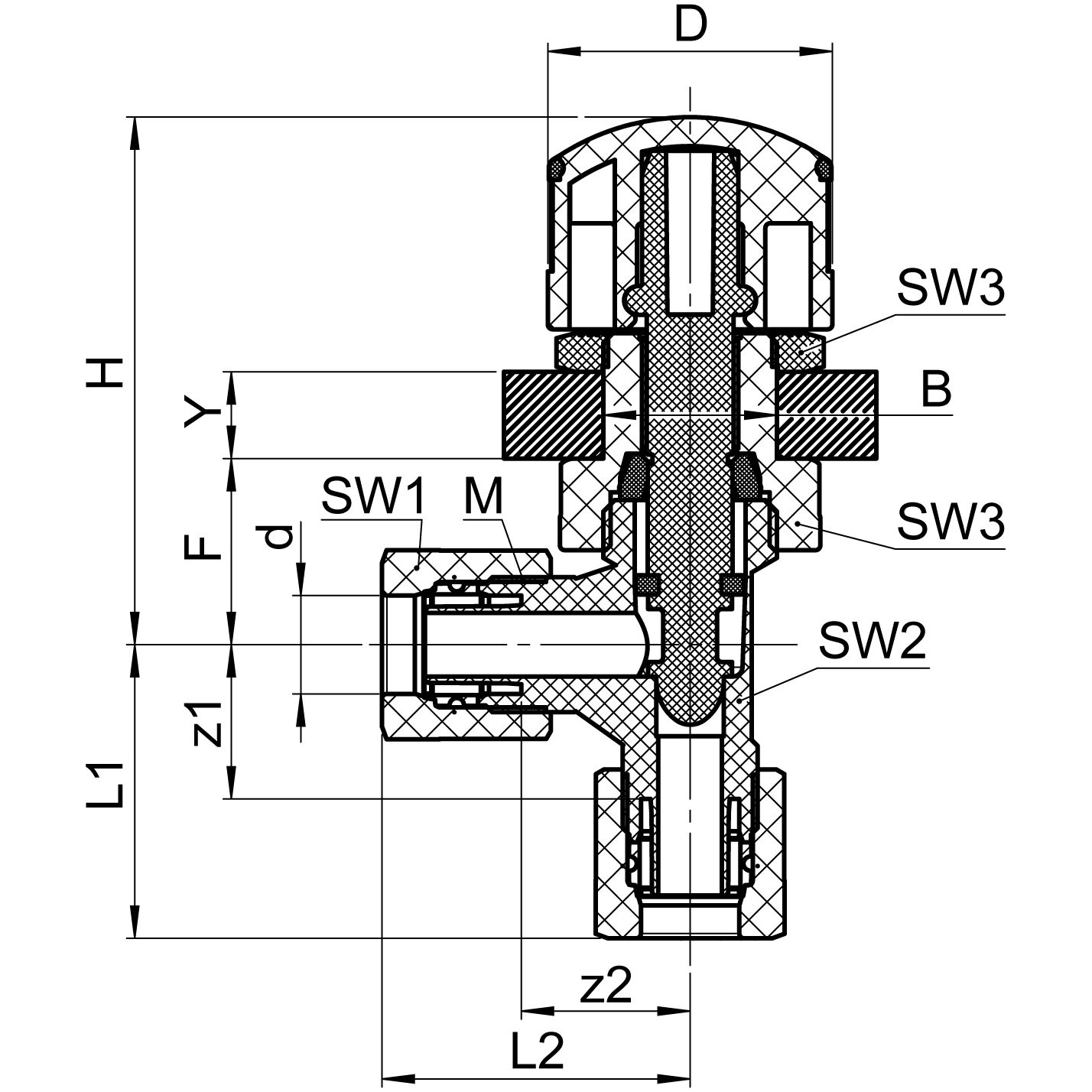

| Artikelnummer | RSK | d | L1/L2 | e | H | F | z1/z2 | SW1/SW2 | SW3 | bar | M | Filer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1481410060 | 6 | 26/26 | 3.5 | 38 | 13.5 | 14/14 | 12/10 | 17 | 10 | 10x1 | ||
| 1481410080 | 8 | 28,5/28,5 | 3.5 | 38 | 13.5 | 15/15 | 14/11 | 17 | 10 | 12x1 | ||
| 1481410100 | 10 | 30,5/32 | 7 | 54 | 18 | 16/17,5 | 17/14 | 24 | 10 | 14x1 | ||
| 1481410120 | 12 | 34/35,5 | 7 | 53 | 18 | 16/17,5 | 19/16 | 24 | 10 | 16x1 |
| Artikelnummer | 1481410060 |
| RSK | |
| d | 6 |
| L1/L2 | 26/26 |
| e | 3.5 |
| H | 38 |
| F | 13.5 |
| z1/z2 | 14/14 |
| SW1/SW2 | 12/10 |
| SW3 | 17 |
| bar | 10 |
| M | 10x1 |
| Artikelnummer | 1481410080 |
| RSK | |
| d | 8 |
| L1/L2 | 28,5/28,5 |
| e | 3.5 |
| H | 38 |
| F | 13.5 |
| z1/z2 | 15/15 |
| SW1/SW2 | 14/11 |
| SW3 | 17 |
| bar | 10 |
| M | 12x1 |
| Artikelnummer | 1481410100 |
| RSK | |
| d | 10 |
| L1/L2 | 30,5/32 |
| e | 7 |
| H | 54 |
| F | 18 |
| z1/z2 | 16/17,5 |
| SW1/SW2 | 17/14 |
| SW3 | 24 |
| bar | 10 |
| M | 14x1 |
| Artikelnummer | 1481410120 |
| RSK | |
| d | 12 |
| L1/L2 | 34/35,5 |
| e | 7 |
| H | 53 |
| F | 18 |
| z1/z2 | 16/17,5 |
| SW1/SW2 | 19/16 |
| SW3 | 24 |
| bar | 10 |
| M | 16x1 |
