Name: SO NV 01A40
SKU: 70733

Visa alla mått +

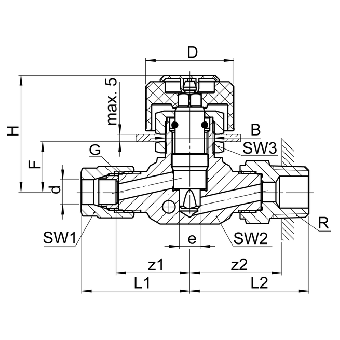

Artikelnummer	d	G	bar	R	SW1/SW2/SW3	L1/L2	D	H	B	F	z1/z2	e
2587140060	4	1/8	50	1/8	12/14/19	32/34.5	26	47	16.5	10	25/28	3.5
2587140082	5	1/8	50	1/8	12/14/19	32/34.5	26	47	16.5	10	25/28	4
2587140110	6	1/8	50	1/4	12/14/19	32/38.5	26	47	16.5	10	25/31	4
2587140160	8	1/4	50	1/8	14/14/19	35/36.5	26	47	16.5	10	25.5/30.5	5
2587140170	8	1/4	50	1/4	14/14/19	35/40.5	26	47	16.5	10	25.5/31	5
2587140180	8	1/4	50	3/8	14/14/19	35/40.5	26	47	16.5	10	25.5/30.5	5
2587140185	8	1/4	50	1/2	14/14/19	35/44.5	26	47	16.5	10	25.5/31.5	5
2587140270	10	3/8	50	1/4	17/18/24	42/46.5	36	54.5	20.5	14	30/37	6.5
2587140280	10	3/8	50	3/8	17/18/24	42/46.5	36	54.5	20.5	14	30/36.5	6.5
2587140285	10	3/8	50	1/2	17/18/24	42/48.5	36	54.5	20.5	14	30/36.5	6.5
2587140380	12	1/2	50	1/4	19/22/27	47.5/49.5	36	66	24.5	15	33/40	9.5
2587140390	12	1/2	50	3/8	19/22/27	47.5/49.5	36	66	24.5	15	33/39.5	9.5
2587140400	12	1/2	50	1/2	19/22/27	47.5/51.5	36	66	24.5	15	33/38.5	9.5
2587140405	12	1/2	50	3/4	19/22/27	47.5/53.5	36	66	24.5	15	33/38.5	9.5
2587140504	14	1/2	50	1/2	22/22/27	49.5/51.5	36	66	24.5	15	33.5/38.5	9.5
2587140534	15	1/2	50	1/2	22/22/27	49.5/53.5	36	66	24.5	15	33.5/38.5	9.5

Datablad

Produktblad

SO NV 01A40
