Name: SO NV 01A30
SKU: 70712

Visa alla mått +

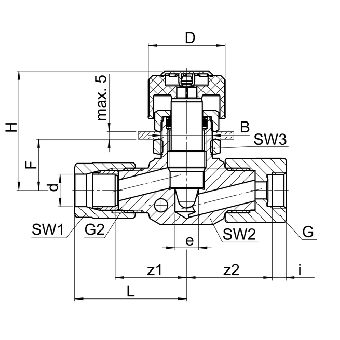

Artikelnummer	d	GxG2	bar	SW1/SW2/SW3	L	D	H	B	F	i	z1/z2	e
2587130060	4	1/8x1/8	50	12/14/19	32	26	47	16.5	10	8	25/30.5	4
2587130082	5	1/8x1/8	50	12/14/19	32	26	47	16.5	10	8	25/30.5	4
2587130100	6	1/8x1/8	50	12/14/19	32	26	47	16.5	10	8	25/30.5	4
2587130110	6	1/4x1/8	50	12/14/19	32	26	47	16.5	10	9	25/31	4
2587130160	8	1/8x1/4	50	14/14/19	35	26	47	16.5	10	8	25/31	5
2587130185	8	1/2x1/4	50	14/14/19	35	26	47	16.5	10	11.5	25.5/33	5
2587130270	10	1/4x3/8	50	14/14/19	42	36	54.5	20.5	14	9	30/36	6.5
2587130280	10	3/8x3/8	50	17/17/24	42	36	54.5	20.5	14	9.5	30/37	6.5
2587130285	10	1/2x3/8	50	17/17/24	42	36	54.5	20.5	14	11.5	30/37.5	6.5
2587130380	12	1/4x1/2	50	19/22/27	47.5	36	66	24.5	15	9	33/39	9.5
2587130390	12	3/8x1/2	50	19/22/27	47.5	36	66	24.5	15	9.5	33/40	9.5
2587130400	12	1/2x1/2	50	19/22/27	47.5	36	66	24.5	15	11.5	33/40	9.5
2587130405	12	3/4x1/2	50	19/22/27	47.5	36	66	24.5	15	14	33/41.5	9.5
2587130504	14	1/2x1/2	50	22/22/27	49.5	36	66	24.5	15	11	33.5/40	9.5
2587130534	15	1/2x1/2	50	22/22/27	49.5	36	66	24.5	15	11	33.5/40	9.5

Datablad

Produktblad

SO NV 01A30
