Name: SO CV 03A40
SKU: 70676

Visa alla mått +

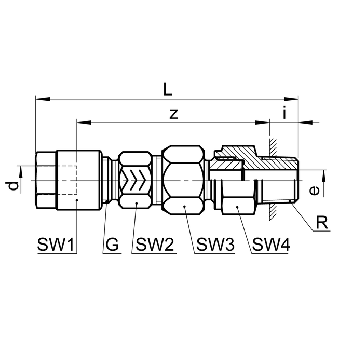

Artikelnummer	d	G	bar	R	SW1/SW2/SW3	L	i	z	e
2583400110	6	1/8	100	1/4	12/12/14/14	65	8	48	3.4
2583400160	8	1/4	100	1/8	14/14/17/17	70	5	54.5	4.5
2583400180	8	1/4	100	3/8	14/14/17/17	74	8	55.5	5.8
2583400185	8	1/4	100	1/2	14/14/17/22	78	10	57.5	5.8
2583400270	10	1/2	64	1/4	19/24/27/27	96.5	8	74.5	7
2583400280	10	1/2	64	3/8	19/24/27/27	96.5	8	74.5	10
2583400285	10	1/2	64	1/2	19/24/27/27	98	10	74.5	10.5
2583400380	12	1/2	50	1/4	19/24/27/27	96	8	73.5	7
2583400390	12	1/2	50	3/8	19/24/27/27	96	8	73.5	10
2583400400	12	1/2	50	1/2	19/24/27/27	98	10	73.5	10.5
2583400405	12	1/2	50	3/4	19/24/27/30	100	12	73.5	10.5
2583400504	14	1/2	50	1/2	22/24/27/27	101.5	10	74	10.5

Datablad

Produktblad

SO CV 03A40
