Hem / Produkter / Koppling / Slang / Instrumentkoppling / SO 82721

SO 82721

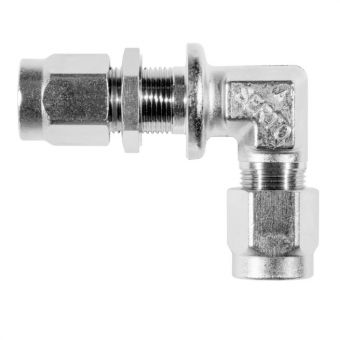

Vinkelunion väggenomföring (5mm) förnicklad

Vinkelunion väggenomföring (5mm) förnicklad mässing

Modeller
Dokument

Modeller

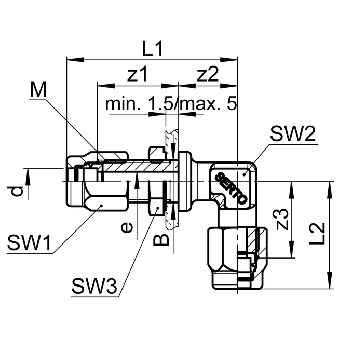

Visa alla mått +

Artikelnummer	d	bar	M	SW1/SW2/SW3	L1/L2	B	z1/z2	z3	e
0382700040	4	100	M10x1	12/10/14	40.5/25.5	10.5	19/14	18	3.4
0382700060	6	200	M10x1	12/10/14	40.5/25.5	10.5	19/14	18	4
0382700100	10	80	M14x1	17/17/19	49/33.5	14.5	21/18	23.5	8
0382700120	12	80	M16x1	19/17/19	50/34.5	16.5	21/18	23.5	10
0382700150	15	25	M20x1.5	24/19/27	57/38	20.5	24.5/20	25.5	13
