SO52621

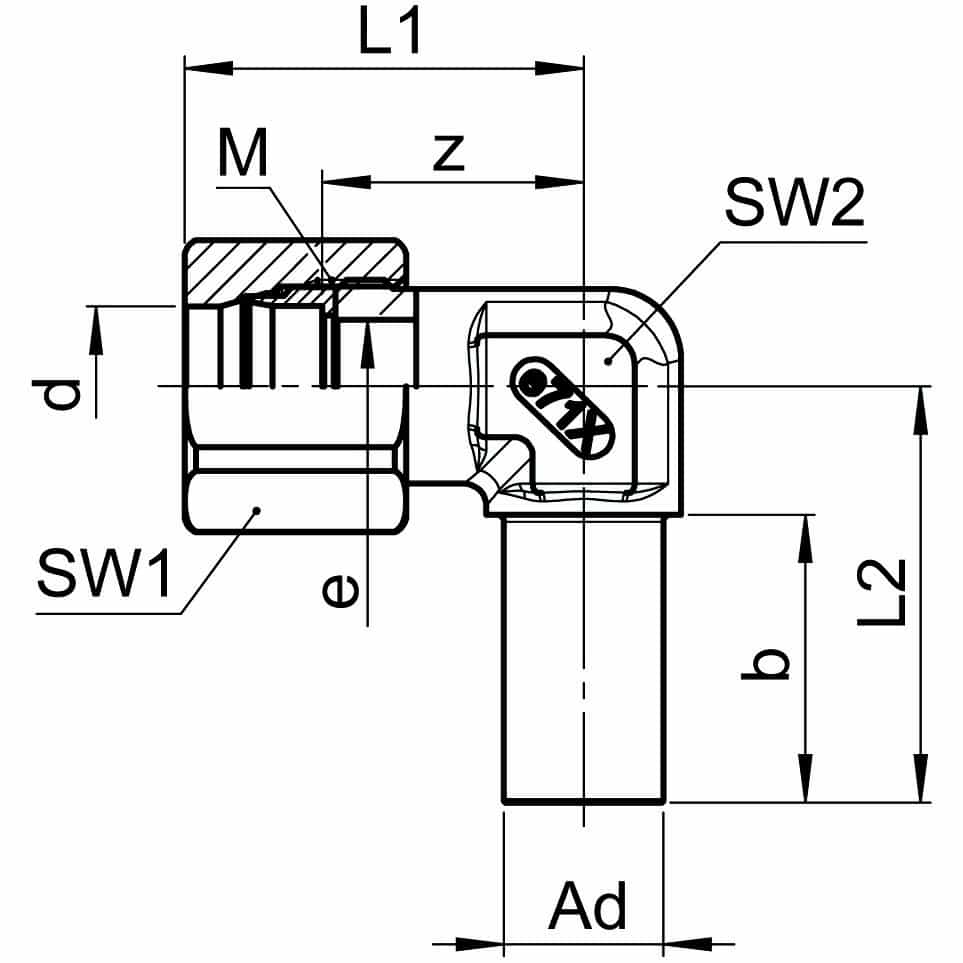

Svivel vinkel 90°

Visa alla mått +

Artikelnummer	d	AD	bar	z	M	e	SW1	SW2	L1	L2
0582600045	4	6	200	16	10 x 1	3.5	12	9	24	18
0582600053	5	6	200	16	10 x 1	4	12	9	24	18
0582600060	6	6	200	16	10 x 1	4	12	9	24	18
0582600063	6	8	200	18.5	12 x 1	4.5	14	10	27	23
0582600067	6.35	6	200	16	10 x 1	4	12	9	24	18
0582600080	8	8	200	18	12 x 1	6	14	10	26.5	23
0582600083	8	10	160	21	14 x 1	6.5	17	12	32	25.5
0582600100	10	10	160	20.5	14 x 1	7	17	12	32	25.5
0582600120	12	12	160	21.5	16 x 1	9	19	14	33.5	26.5
0582600150	15	15	100	24.5	20 x 1,5	12	24	17	38.5	30
0582600180	18	18	100	29.5	24 x 1,5	15	30	24	45	47
