SO 03221

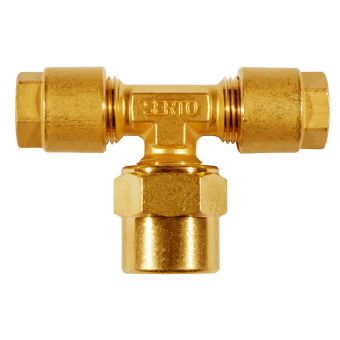

Mässings t-rör

Mässings t-rör inv. gänga

Modeller

Visa alla mått +

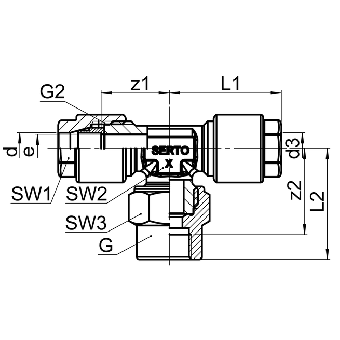

Artikelnummer	RSK	d	GxG2	d3	bar	SW1/SW2/SW3	L1	L2	z1	z2	e	Filer
2483201100		6	1/8x1/8	6	125	10/12/14	28	33.5	20	23.5	4
2483201110		6	1/4x1/4	6	125	11/14/19	31	37	22		4.5
2483201120		6	3/8x1/4	6	125	11/14/22	31	38.5	22		4.5
2483201160		8	1/8x1/4	8	125	11/14/17	31.5	35.5	22		6
2483201170		8	1/4x1/4	8	125	11/14/19	31.5	37	22		6
2483201180		8	3/8x3/8	8	125	14/17/24	34.5	39.5	23		7
2483201270		10	1/4x3/8	10	100	14/17/22	34.5	38	23		8
2483201280		10	3/8x3/8	10	100	14/17/24	35	39.5	23		8
2483201290		10	1/2x1/2	10	100	19/19/30	39	45	26.5		9
2483201390		12	3/8x1/2	12	100	19/19/27	40	42.5	26.5		10
2483201400		12	1/2x1/2	12	100	19/19/30	40	45	26.5		11
2483201410		12	3/4x1/2	12	100	19/19/32	40	48.5	26.5		11
2483201540		14	1/2x1/2	14	64	19/22/30	42.5	45	26.5		12
2483201580		15	3/8x1/2	15	64	19/22/24	42.5	42.5	26.5		8
2483201590		15	1/2x1/2	15	64	19/22/30	42.5	45	26.5		12

Specifikationer


Artikelnummer	2483201100
RSK
d	6
GxG2	1/8x1/8
d3	6
bar	125
SW1/SW2/SW3	10/12/14
L1	28
L2	33.5
z1	20
z2	23.5
e	4


Artikelnummer	2483201110
RSK
d	6
GxG2	1/4x1/4
d3	6
bar	125
SW1/SW2/SW3	11/14/19
L1	31
L2	37
z1	22
e	4.5


Artikelnummer	2483201120
RSK
d	6
GxG2	3/8x1/4
d3	6
bar	125
SW1/SW2/SW3	11/14/22
L1	31
L2	38.5
z1	22
e	4.5


Artikelnummer	2483201160
RSK
d	8
GxG2	1/8x1/4
d3	8
bar	125
SW1/SW2/SW3	11/14/17
L1	31.5
L2	35.5
z1	22
e	6


Artikelnummer	2483201170
RSK
d	8
GxG2	1/4x1/4
d3	8
bar	125
SW1/SW2/SW3	11/14/19
L1	31.5
L2	37
z1	22
e	6


Artikelnummer	2483201180
RSK
d	8
GxG2	3/8x3/8
d3	8
bar	125
SW1/SW2/SW3	14/17/24
L1	34.5
L2	39.5
z1	23
e	7


Artikelnummer	2483201270
RSK
d	10
GxG2	1/4x3/8
d3	10
bar	100
SW1/SW2/SW3	14/17/22
L1	34.5
L2	38
z1	23
e	8


Artikelnummer	2483201280
RSK
d	10
GxG2	3/8x3/8
d3	10
bar	100
SW1/SW2/SW3	14/17/24
L1	35
L2	39.5
z1	23
e	8


Artikelnummer	2483201290
RSK
d	10
GxG2	1/2x1/2
d3	10
bar	100
SW1/SW2/SW3	19/19/30
L1	39
L2	45
z1	26.5
e	9


Artikelnummer	2483201390
RSK
d	12
GxG2	3/8x1/2
d3	12
bar	100
SW1/SW2/SW3	19/19/27
L1	40
L2	42.5
z1	26.5
e	10


Artikelnummer	2483201400
RSK
d	12
GxG2	1/2x1/2
d3	12
bar	100
SW1/SW2/SW3	19/19/30
L1	40
L2	45
z1	26.5
e	11


Artikelnummer	2483201410
RSK
d	12
GxG2	3/4x1/2
d3	12
bar	100
SW1/SW2/SW3	19/19/32
L1	40
L2	48.5
z1	26.5
e	11


Artikelnummer	2483201540
RSK
d	14
GxG2	1/2x1/2
d3	14
bar	64
SW1/SW2/SW3	19/22/30
L1	42.5
L2	45
z1	26.5
e	12


Artikelnummer	2483201580
RSK
d	15
GxG2	3/8x1/2
d3	15
bar	64
SW1/SW2/SW3	19/22/24
L1	42.5
L2	42.5
z1	26.5
e	8


Artikelnummer	2483201590
RSK
d	15
GxG2	1/2x1/2
d3	15
bar	64
SW1/SW2/SW3	19/22/30
L1	42.5
L2	45
z1	26.5
e	12
