SO 02121

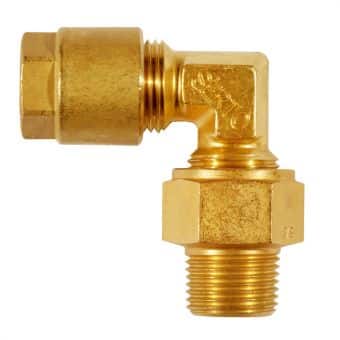

Mässings vinkelunion

Mässings vinkelunion utv. gänga

Modeller

Visa alla mått +

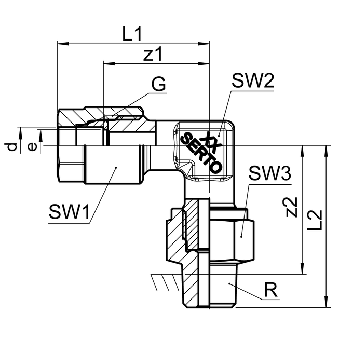

Artikelnummer	RSK	d	G	R	bar	SW1/SW2/SW3	L1	L2	z1	z2	e	Filer
2482101100		6	1/8	1/8	125	12/10/14	28	29.5	20	24.5	4
2482101110		6	1/4	1/8	125	12/10/14	28	33.5	20	25.5	4
2482101120		6	3/8	1/8	125	12/10/17	28	35.5	20	27.5	4
2482101125		6	1/2	1/4	125	14/11/22	31.5	41	22	31	4.5
2482101160		8	1/8	1/4	125	14/11/17	31.5	33	22	29	5
2482101170		8	1/4	1/4	125	14/11/17	31.5	37	22	29	6
2482101180		8	3/8	1/4	125	14/11/17	31.5	37	22	31	6
2482101185		8	1/2	1/4	125	14/11/22	31.5	41	22	31.5	6
2482101270		10	1/4	3/8	100	17/14/22	35	39.5	23	31.5	8
2482101280		10	3/8	3/8	100	17/14/22	35	39.5	23	31.5	8
2482101285		10	1/2	3/8	100	17/14/22	35	41.5	23	34.5	8
2482101380		12	1/4	1/2	100	19/17/27	39.5	42.5	26	34.5	7
2482101390		12	3/8	1/2	100	19/17/27	39.5	42.5	26	34.5	10
2482101400		12	1/2	1/2	100	19/17/27	39.5	44.5	26	34.5	11
2482101502		14	3/8	1/2	64	22/19/27	45.5	45.5	29.5	37.5	10

Specifikationer


Artikelnummer	2482101100
RSK
d	6
G	1/8
R	1/8
bar	125
SW1/SW2/SW3	12/10/14
L1	28
L2	29.5
z1	20
z2	24.5
e	4


Artikelnummer	2482101110
RSK
d	6
G	1/4
R	1/8
bar	125
SW1/SW2/SW3	12/10/14
L1	28
L2	33.5
z1	20
z2	25.5
e	4


Artikelnummer	2482101120
RSK
d	6
G	3/8
R	1/8
bar	125
SW1/SW2/SW3	12/10/17
L1	28
L2	35.5
z1	20
z2	27.5
e	4


Artikelnummer	2482101125
RSK
d	6
G	1/2
R	1/4
bar	125
SW1/SW2/SW3	14/11/22
L1	31.5
L2	41
z1	22
z2	31
e	4.5


Artikelnummer	2482101160
RSK
d	8
G	1/8
R	1/4
bar	125
SW1/SW2/SW3	14/11/17
L1	31.5
L2	33
z1	22
z2	29
e	5


Artikelnummer	2482101170
RSK
d	8
G	1/4
R	1/4
bar	125
SW1/SW2/SW3	14/11/17
L1	31.5
L2	37
z1	22
z2	29
e	6


Artikelnummer	2482101180
RSK
d	8
G	3/8
R	1/4
bar	125
SW1/SW2/SW3	14/11/17
L1	31.5
L2	37
z1	22
z2	31
e	6


Artikelnummer	2482101185
RSK
d	8
G	1/2
R	1/4
bar	125
SW1/SW2/SW3	14/11/22
L1	31.5
L2	41
z1	22
z2	31.5
e	6


Artikelnummer	2482101270
RSK
d	10
G	1/4
R	3/8
bar	100
SW1/SW2/SW3	17/14/22
L1	35
L2	39.5
z1	23
z2	31.5
e	8


Artikelnummer	2482101280
RSK
d	10
G	3/8
R	3/8
bar	100
SW1/SW2/SW3	17/14/22
L1	35
L2	39.5
z1	23
z2	31.5
e	8


Artikelnummer	2482101285
RSK
d	10
G	1/2
R	3/8
bar	100
SW1/SW2/SW3	17/14/22
L1	35
L2	41.5
z1	23
z2	34.5
e	8


Artikelnummer	2482101380
RSK
d	12
G	1/4
R	1/2
bar	100
SW1/SW2/SW3	19/17/27
L1	39.5
L2	42.5
z1	26
z2	34.5
e	7


Artikelnummer	2482101390
RSK
d	12
G	3/8
R	1/2
bar	100
SW1/SW2/SW3	19/17/27
L1	39.5
L2	42.5
z1	26
z2	34.5
e	10


Artikelnummer	2482101400
RSK
d	12
G	1/2
R	1/2
bar	100
SW1/SW2/SW3	19/17/27
L1	39.5
L2	44.5
z1	26
z2	34.5
e	11


Artikelnummer	2482101502
RSK
d	14
G	3/8
R	1/2
bar	64
SW1/SW2/SW3	22/19/27
L1	45.5
L2	45.5
z1	29.5
z2	37.5
e	10

Dokument

Datablad
