SO 01524

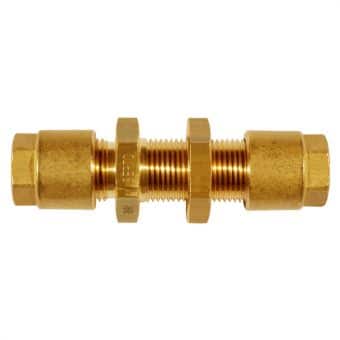

Mässings union

  • Mässings union väggenomföring (16mm)
Nollställ
Visa alla mått +

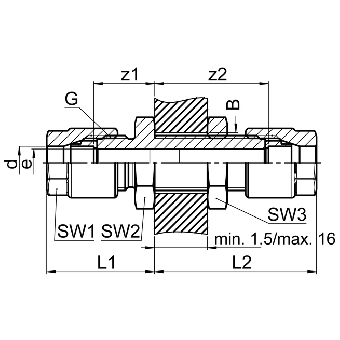

Artikelnummer RSK dGbarSW1/SW2/SW3L1L2z1z2eBFiler
2481540040 1/812512/14/1423.539.51632410.5
2481540050 1/812512/14/1424401632410.5
2481540063 1/812512/14/1425411632410.5
2481540095 3/812517/24/2431.547.518.534.58.517
2481540127 1/210022/30/3037.553.522.5381221.5
2481540140 1/26422/30/30405622.538.51221.5
2481540150 1/26422/30/3040562238.51221.5
Artikelnummer 2481540040
RSK
G 1/8
bar 125
SW1/SW2/SW3 12/14/14
L1 23.5
L2 39.5
z1 16
z2 32
e 4
B 10.5
Artikelnummer 2481540050
RSK
G 1/8
bar 125
SW1/SW2/SW3 12/14/14
L1 24
L2 40
z1 16
z2 32
e 4
B 10.5
Artikelnummer 2481540063
RSK
G 1/8
bar 125
SW1/SW2/SW3 12/14/14
L1 25
L2 41
z1 16
z2 32
e 4
B 10.5
Artikelnummer 2481540095
RSK
G 3/8
bar 125
SW1/SW2/SW3 17/24/24
L1 31.5
L2 47.5
z1 18.5
z2 34.5
e 8.5
B 17
Artikelnummer 2481540127
RSK
G 1/2
bar 100
SW1/SW2/SW3 22/30/30
L1 37.5
L2 53.5
z1 22.5
z2 38
e 12
B 21.5
Artikelnummer 2481540140
RSK
G 1/2
bar 64
SW1/SW2/SW3 22/30/30
L1 40
L2 56
z1 22.5
z2 38.5
e 12
B 21.5
Artikelnummer 2481540150
RSK
G 1/2
bar 64
SW1/SW2/SW3 22/30/30
L1 40
L2 56
z1 22
z2 38.5
e 12
B 21.5
Datablad
