Hem / Produkter / Rörsystem / Rördelar PE / S11E17

S11E17

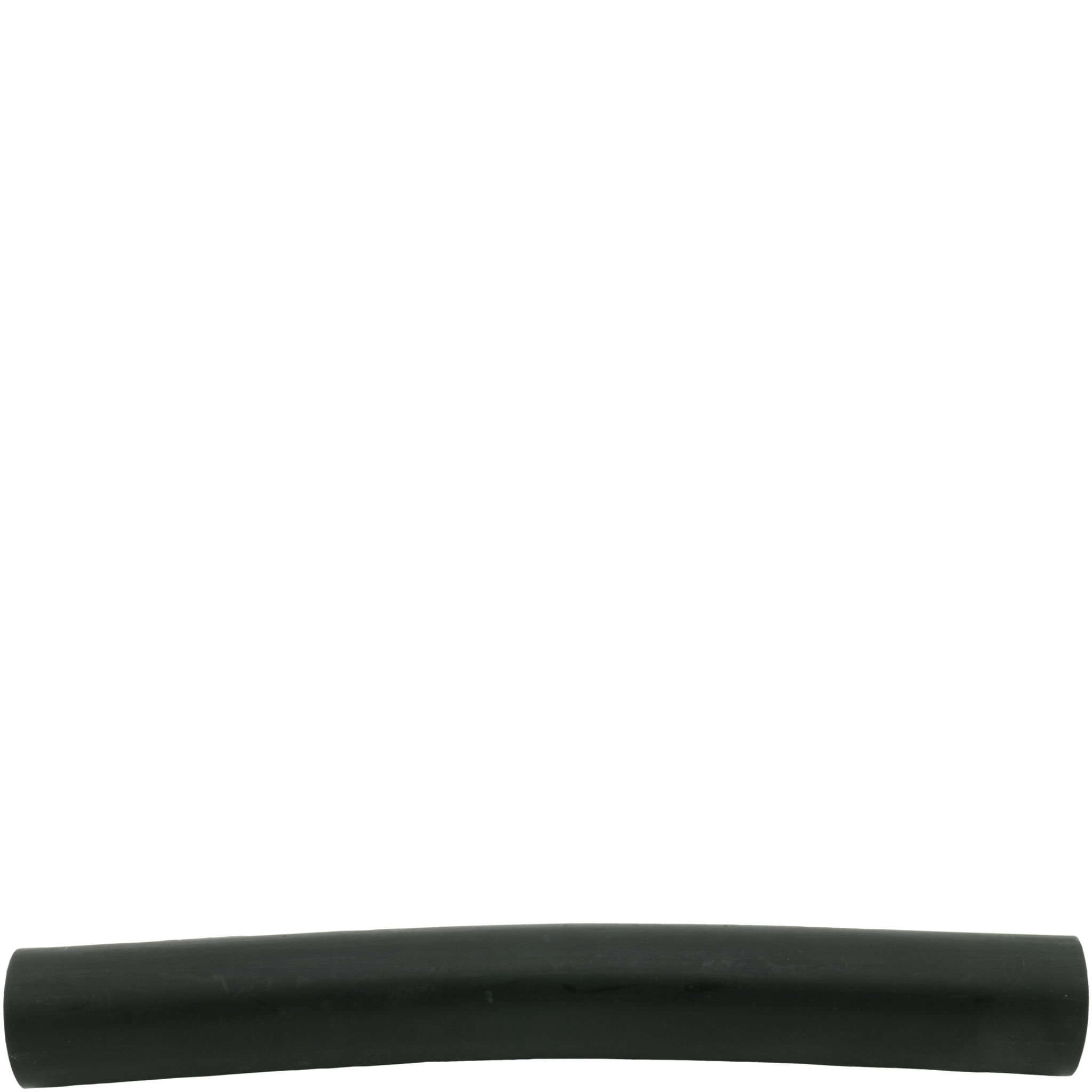

PE Böj 11° böjd av rör SDR17

PE100-böj 11°
Böjd av rör
SDR17: Vatten PN 10 Gas PN 6

Modeller
Dokument

Modeller

Visa alla mått +

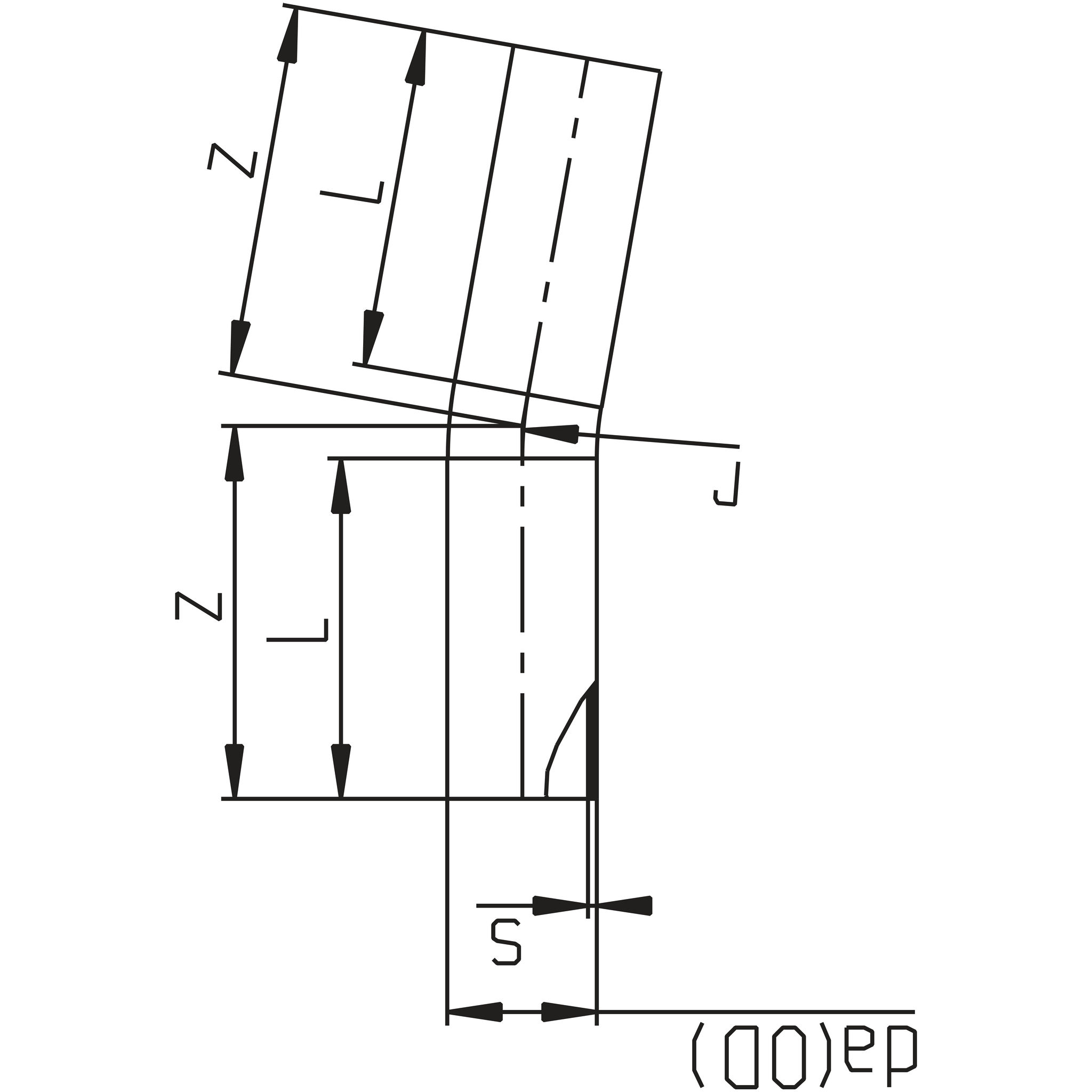

Artikelnummer	da(OD)	SDR	Z	L	R	S	Filer
S11E17-RC-090	90	SDR17	340	150	135	5.4	CAD/Step
S11E17-RC-110	110	SDR17	330	150	165	6.6	CAD/Step
S11E17-RC-125	125	SDR17	380	150	188	7.4	CAD/Step
S11E17-RC-140	140	SDR17	395	150	210	8.3	CAD/Step
S11E17-RC-160	160	SDR17	415	150	480	9.5	CAD/Step
S11E17-RC-180	180	SDR17	450	150	270	10.7	CAD/Step
S11E17-RC-200	200	SDR17	480	150	300	11.9	CAD/Step
S11E17-RC-225	225	SDR17	510	150	338	13.4	CAD/Step
S11E17-RC-250	250	SDR17	540	250	375	14.8	CAD/Step
S11E17-RC-280	280	SDR17	450	250	420	16.6	CAD/Step
S11E17-RC-315	315	SDR17	500	300	496	18.7	CAD/Step
S11E17-RC-355	355	SDR17	590	300	560	21.1	CAD/Step
S11E17-RC-400	400	SDR17	650	300	637	23.7	CAD/Step
S11E17-RC-450	450	SDR17	700	300	711	26.7	CAD/Step
S11E17-RC-500	500	SDR17	750	350	783	29.7	CAD/Step
S11E17-RC-560	560	SDR17	800	350	877	33.2	CAD/Step
S11E17-RC-630	630	SDR17	850	350	955	37.4	CAD/Step

Dokument

Datablad

Produktblad

Teknisk information

Teknisk information
