REL07

Reducering SDR7,4

  • PE100-RC Huv
  • Långa ändar
  • Vatten PN 25 SDR 7 ,4
Nollställ
Visa alla mått +

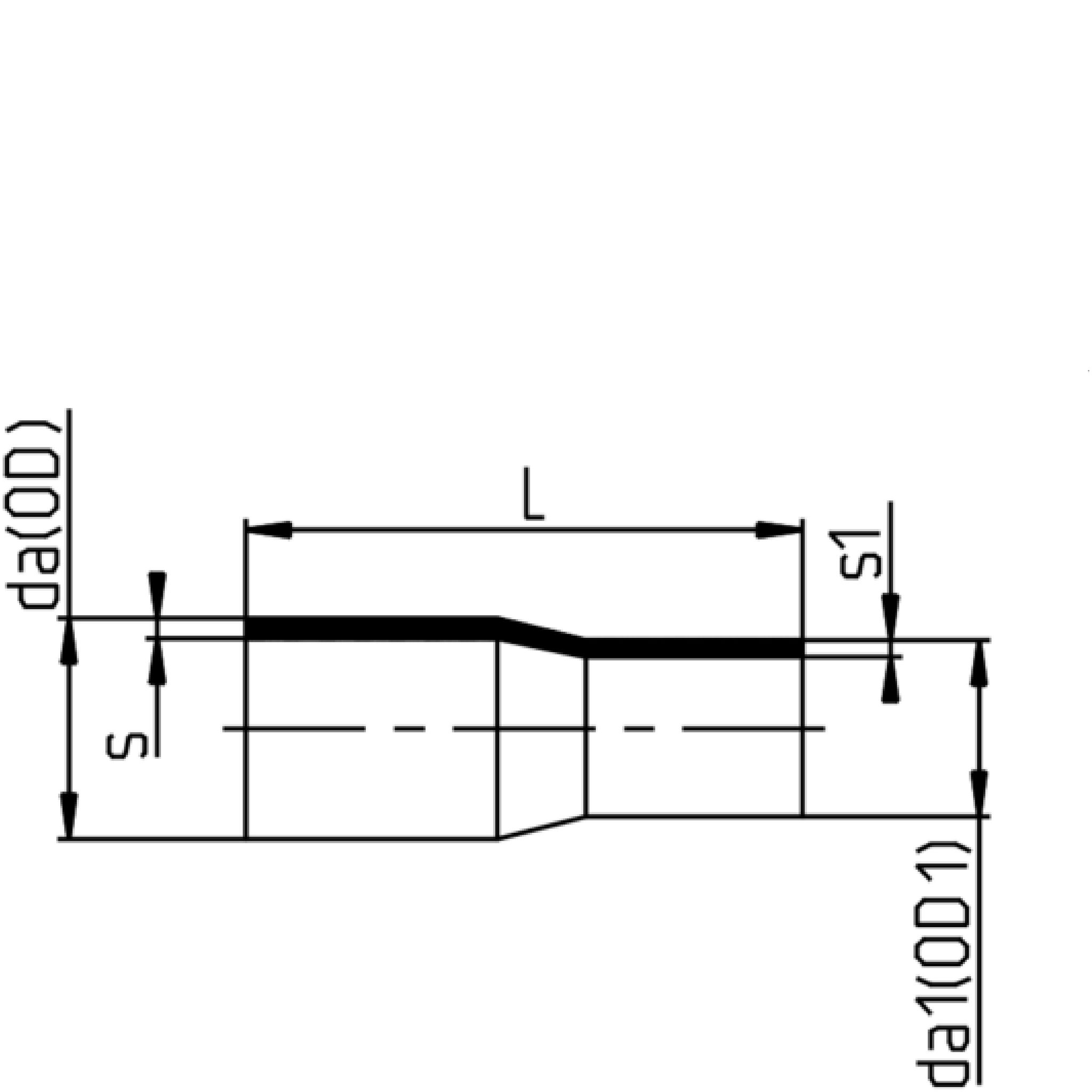

Artikelnummer RSK da*da1SDRs2Ls1L1L2Filer
REL07-RC-110-063 110×63SDR7,48.617815.18059
REL07-RC-110-090 110×90SDR7,412.317815.18075
REL07-RC-125-063 125×63SDR7,48.6192.517.18562
REL07-RC-125-090 125×90SDR7,412.318917.185.576
REL07-RC-125-110 125×110SDR7,415.1197.517.18480
REL07-RC-160-090 160×90SDR7,412.321621.98977
REL07-RC-160-125 160×125SDR7,417.122821.99390
REL07-RC-200-160 200×160SDR7,421.924927.496106
REL07-RC-225-160 225x160SDR7,421.926830.8120104 CAD/Step
REL07-RC-250-160 250x160SDR7,421.931434.2152.5112 CAD/Step
REL07-RC-250-225 250x225SDR7,430.831234.2152.5130.5 CAD/Step
Artikelnummer REL07-RC-110-063
RSK
da*da1 110×63
SDR SDR7,4
s2 8.6
L 178
s1 15.1
L1 80
L2 59
Artikelnummer REL07-RC-110-090
RSK
da*da1 110×90
SDR SDR7,4
s2 12.3
L 178
s1 15.1
L1 80
L2 75
Artikelnummer REL07-RC-125-063
RSK
da*da1 125×63
SDR SDR7,4
s2 8.6
L 192.5
s1 17.1
L1 85
L2 62
Artikelnummer REL07-RC-125-090
RSK
da*da1 125×90
SDR SDR7,4
s2 12.3
L 189
s1 17.1
L1 85.5
L2 76
Artikelnummer REL07-RC-125-110
RSK
da*da1 125×110
SDR SDR7,4
s2 15.1
L 197.5
s1 17.1
L1 84
L2 80
Artikelnummer REL07-RC-160-090
RSK
da*da1 160×90
SDR SDR7,4
s2 12.3
L 216
s1 21.9
L1 89
L2 77
Artikelnummer REL07-RC-160-125
RSK
da*da1 160×125
SDR SDR7,4
s2 17.1
L 228
s1 21.9
L1 93
L2 90
Artikelnummer REL07-RC-200-160
RSK
da*da1 200×160
SDR SDR7,4
s2 21.9
L 249
s1 27.4
L1 96
L2 106
Artikelnummer REL07-RC-225-160
RSK
da*da1 225x160
SDR SDR7,4
s2 21.9
L 268
s1 30.8
L1 120
L2 104
Artikelnummer REL07-RC-250-160
RSK
da*da1 250x160
SDR SDR7,4
s2 21.9
L 314
s1 34.2
L1 152.5
L2 112
Artikelnummer REL07-RC-250-225
RSK
da*da1 250x225
SDR SDR7,4
s2 30.8
L 312
s1 34.2
L1 152.5
L2 130.5
