Hem / Produkter / Rörsystem / Rördelar PVDF / QBF33

QBF33

PVDF Kraghylsa

PVDF- Kraghylsa DIN
Formsprutad
Stumsvetning och IR-svetsning
PN 10
SDR 33

Modeller
Dokument

Modeller

Visa alla mått +

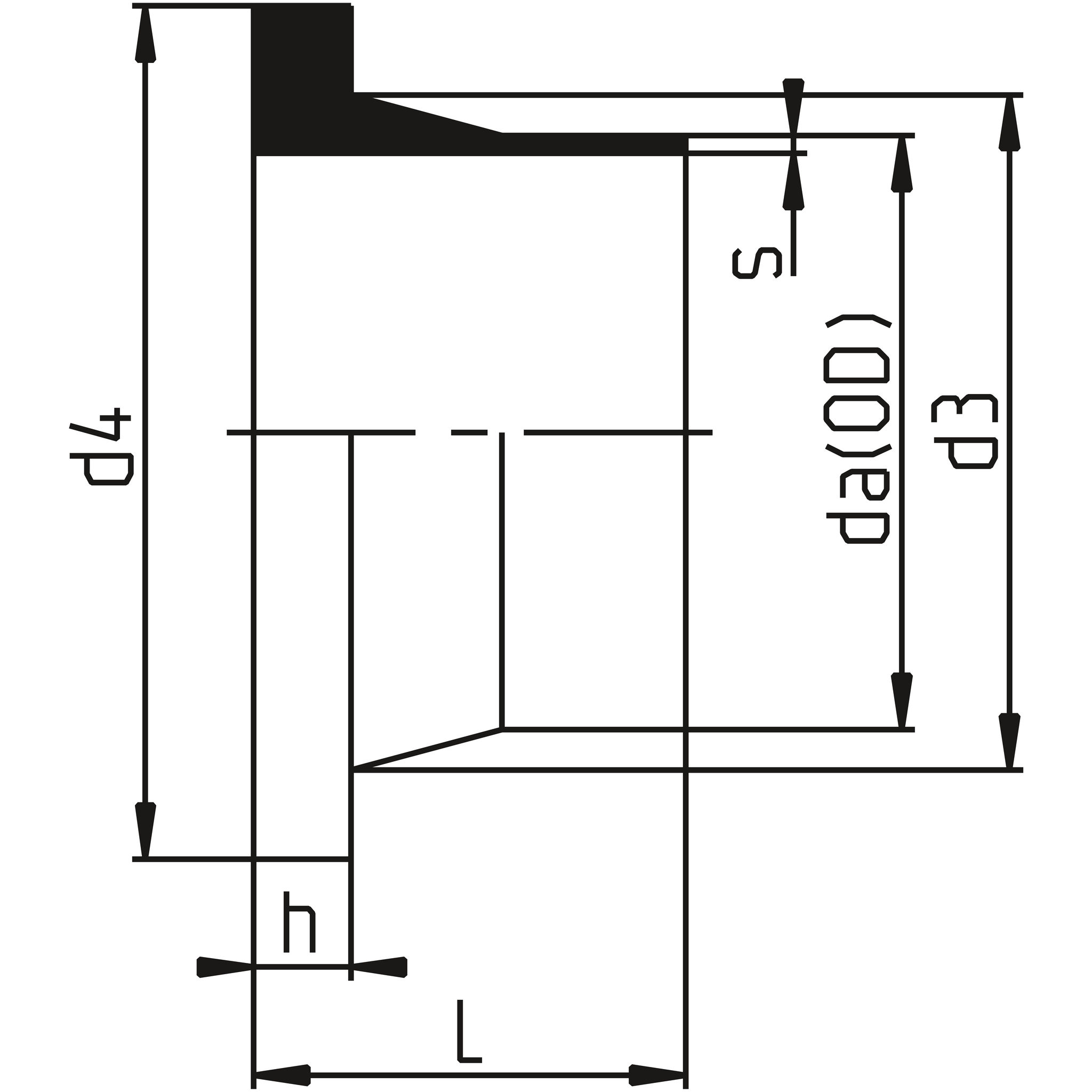

Artikelnummer	d	SDR	s	L	d3	d4	h	Filer
QBF33-090	90	SDR33	2.8	80	105	138	11	CAD/Step
QBF33-110	110	SDR33	3.4	80	125	158	12	CAD/Step
QBF33-125	125	SDR33	3.9	80	132	158	14	CAD/Step
QBF33-140	140	SDR33	4.3	80	155	188	15	CAD/Step
QBF33-160	160	SDR33	4.9	81	175	212	16	CAD/Step
QBF33-180	180	SDR33	5.5	80	183	212	18	CAD/Step
QBF33-200	200	SDR33	6.2	100	232	268	18	CAD/Step
QBF33-225	225	SDR33	6.9	100	235	268	18	CAD/Step
QBF33-250	250	SDR33	7.7	100	285	320	20	CAD/Step
QBF33-280	280	SDR33	8.6	100	288	320	20	CAD/Step
QBF33-315	315	SDR33	9.7	100	335	370	20	CAD/Step

Dokument

Datablad

Produktblad

Teknisk information

Teknisk information
