Plugg utv. gänga

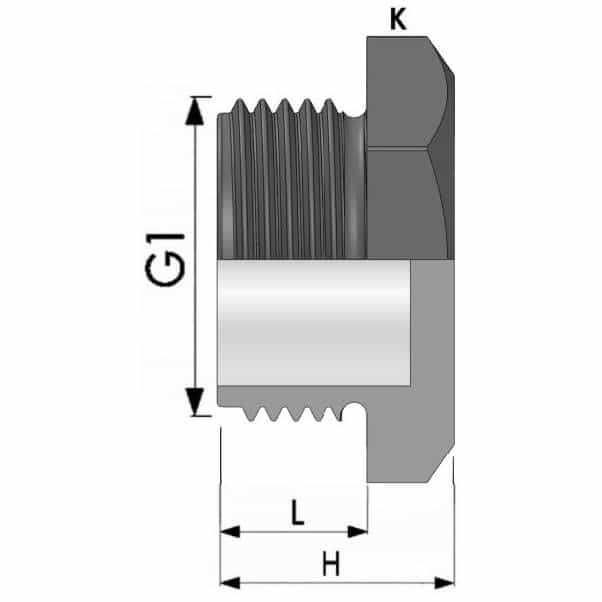

| Artikelnummer | RSK | G1 | L | H | K | Filer |
|---|---|---|---|---|---|---|
| PFM R006 | 1/8" | 8 | 14 | 14 | ||
| PFM R008 | 1/4" | 12 | 22.5 | 17 | CAD/Step | |
| PFM R010 | 2818219 | 3/8" | 13.5 | 21 | 22 | |
| PFM R015 | 2818227 | 1/2" | 14 | 22.5 | 27 | |
| PFM R020 | 2818235 | 3/4" | 15 | 24 | 34 | |
| PFM R025 | 2818243 | 1" | 15.5 | 25 | 40 | |
| PFM R032 | 2818250 | 1 1/4" | 20 | 39 | 46 | |
| PFM R040 | 2818268 | 1 1/2" | 20 | 39 | 55 | |
| PFM R050 | 2818276 | 2" | 24 | 43 | 64 |
| Artikelnummer | PFM R006 |
| RSK | |
| G1 | 1/8" |
| L | 8 |
| H | 14 |
| K | 14 |
| Artikelnummer | PFM R008 |
| RSK | |
| G1 | 1/4" |
| L | 12 |
| H | 22.5 |
| K | 17 |
| Artikelnummer | PFM R010 |
| RSK | 2818219 |
| G1 | 3/8" |
| L | 13.5 |
| H | 21 |
| K | 22 |
| Artikelnummer | PFM R015 |
| RSK | 2818227 |
| G1 | 1/2" |
| L | 14 |
| H | 22.5 |
| K | 27 |
| Artikelnummer | PFM R020 |
| RSK | 2818235 |
| G1 | 3/4" |
| L | 15 |
| H | 24 |
| K | 34 |
| Artikelnummer | PFM R025 |
| RSK | 2818243 |
| G1 | 1" |
| L | 15.5 |
| H | 25 |
| K | 40 |
| Artikelnummer | PFM R032 |
| RSK | 2818250 |
| G1 | 1 1/4" |
| L | 20 |
| H | 39 |
| K | 46 |
| Artikelnummer | PFM R040 |
| RSK | 2818268 |
| G1 | 1 1/2" |
| L | 20 |
| H | 39 |
| K | 55 |
| Artikelnummer | PFM R050 |
| RSK | 2818276 |
| G1 | 2" |
| L | 24 |
| H | 43 |
| K | 64 |
