Dubbelnippel utv. gänga

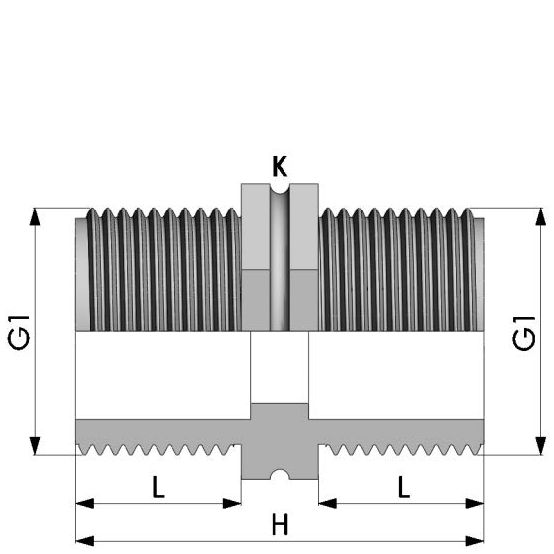

| Artikelnummer | RSK | G1 | L | H | K | Filer |
|---|---|---|---|---|---|---|
| NFM R006 | 1/8" | 8 | 24 | 14 | ||
| NFM R008 | 1/4" | 12 | 33 | 17 | CAD/Step | |
| NFM R010 | 2511593 | 3/8" | 14.5 | 36 | 20 | |
| NFM R015 | 2511594 | 1/2" | 15.5 | 38 | 24 | |
| NFM R020 | 2511595 | 3/4" | 16 | 39 | 28 | |
| NFM R025 | 2511596 | 1" | 18 | 43 | 36 | |
| NFM R032 | 2511597 | 1 1/4" | 20 | 57.5 | 46 | |
| NFM R040 | 2511598 | 1 1/2" | 20 | 57.5 | 54 | |
| NFM R050 | 2511599 | 2" | 24 | 65.5 | 64 | |
| NFM R080 | 2511600 | 3" | 92 |
| Artikelnummer | NFM R006 |
| RSK | |
| G1 | 1/8" |
| L | 8 |
| H | 24 |
| K | 14 |
| Artikelnummer | NFM R008 |
| RSK | |
| G1 | 1/4" |
| L | 12 |
| H | 33 |
| K | 17 |
| Artikelnummer | NFM R010 |
| RSK | 2511593 |
| G1 | 3/8" |
| L | 14.5 |
| H | 36 |
| K | 20 |
| Artikelnummer | NFM R015 |
| RSK | 2511594 |
| G1 | 1/2" |
| L | 15.5 |
| H | 38 |
| K | 24 |
| Artikelnummer | NFM R020 |
| RSK | 2511595 |
| G1 | 3/4" |
| L | 16 |
| H | 39 |
| K | 28 |
| Artikelnummer | NFM R025 |
| RSK | 2511596 |
| G1 | 1" |
| L | 18 |
| H | 43 |
| K | 36 |
| Artikelnummer | NFM R032 |
| RSK | 2511597 |
| G1 | 1 1/4" |
| L | 20 |
| H | 57.5 |
| K | 46 |
| Artikelnummer | NFM R040 |
| RSK | 2511598 |
| G1 | 1 1/2" |
| L | 20 |
| H | 57.5 |
| K | 54 |
| Artikelnummer | NFM R050 |
| RSK | 2511599 |
| G1 | 2" |
| L | 24 |
| H | 65.5 |
| K | 64 |
| Artikelnummer | NFM R080 |
| RSK | 2511600 |
| G1 | 3" |
| H | 92 |
