Muff

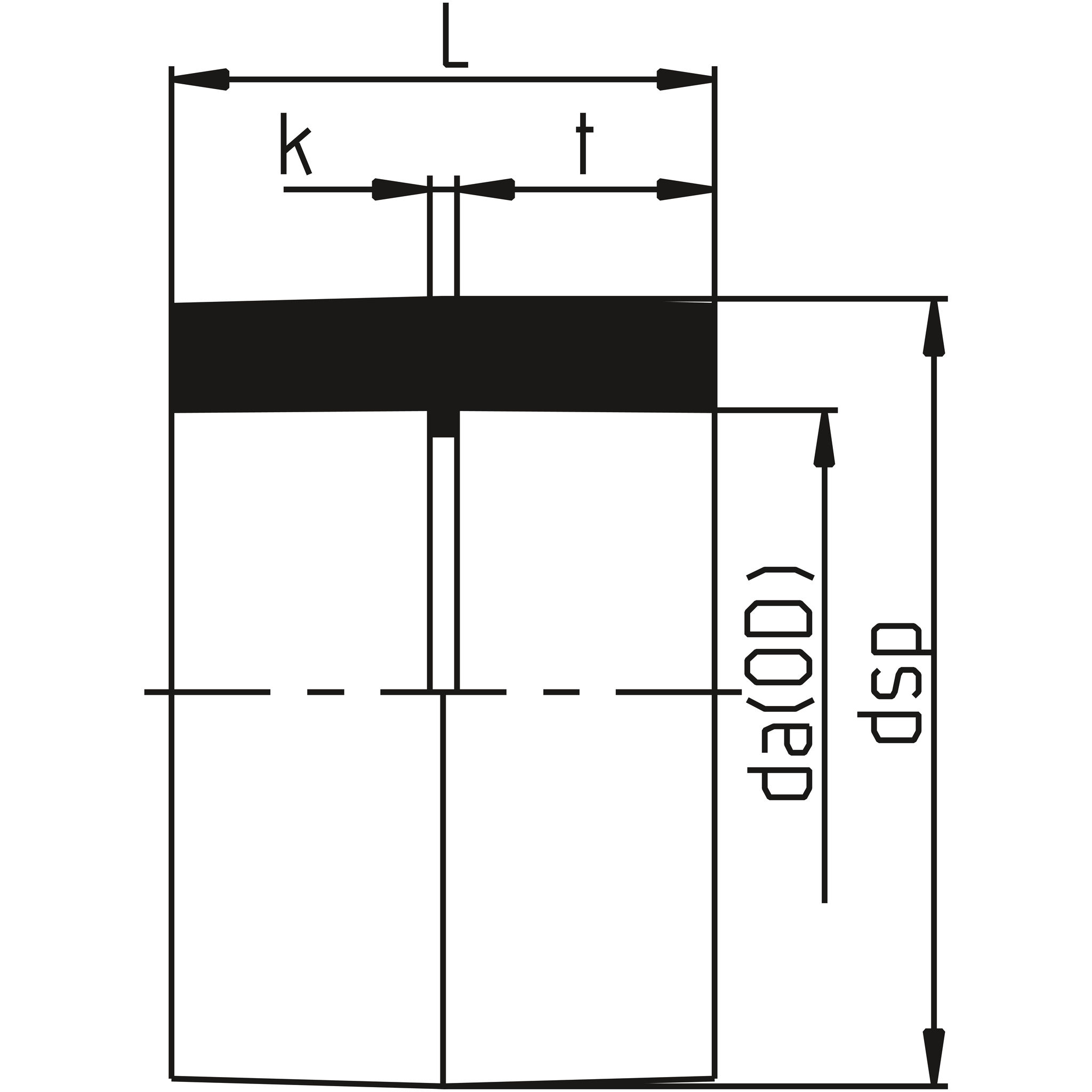

| Artikelnummer | RSK | da(OD) | dsp | L | k | t | Filer |
|---|---|---|---|---|---|---|---|
| MIM016 | 16 | 26 | 33 | 7 | |||
| MIM-A 020 | 2665345 | 20 | 29.4 | 35 | 3 | 16 | CAD/Step |
| MIM-A 025 | 2665346 | 25 | 35.1 | 39 | 3 | 18 | CAD/Step |
| MIM-A 032 | 2665347 | 32 | 43.2 | 43 | 3 | 20 | CAD/Step |
| MIM-A 040 | 2665348 | 40 | 51 | 48 | 6.5 | 21 | CAD/Step |
| MIM-A 050 | 2665349 | 50 | 64.4 | 52.5 | 4.5 | 24 | CAD/Step |
| MIM-A 063 | 2665350 | 63 | 81 | 60.5 | 4.5 | 28 | CAD/Step |
| MIM-A 075 | 2665351 | 75 | 92.5 | 70 | 3 | 33.5 | CAD/Step |
| MIM-A 090 | 2665352 | 90 | 115 | 78.5 | 6 | 36 | CAD/Step |
| MIM-A 110 | 2665353 | 110 | 135 | 92 | 6 | 43 | CAD/Step |
| Artikelnummer | MIM016 |
| RSK | |
| da(OD) | 16 |
| dsp | 26 |
| L | 33 |
| k | 7 |
| Artikelnummer | MIM-A 020 |
| RSK | 2665345 |
| da(OD) | 20 |
| dsp | 29.4 |
| L | 35 |
| k | 3 |
| t | 16 |
| Artikelnummer | MIM-A 025 |
| RSK | 2665346 |
| da(OD) | 25 |
| dsp | 35.1 |
| L | 39 |
| k | 3 |
| t | 18 |
| Artikelnummer | MIM-A 032 |
| RSK | 2665347 |
| da(OD) | 32 |
| dsp | 43.2 |
| L | 43 |
| k | 3 |
| t | 20 |
| Artikelnummer | MIM-A 040 |
| RSK | 2665348 |
| da(OD) | 40 |
| dsp | 51 |
| L | 48 |
| k | 6.5 |
| t | 21 |
| Artikelnummer | MIM-A 050 |
| RSK | 2665349 |
| da(OD) | 50 |
| dsp | 64.4 |
| L | 52.5 |
| k | 4.5 |
| t | 24 |
| Artikelnummer | MIM-A 063 |
| RSK | 2665350 |
| da(OD) | 63 |
| dsp | 81 |
| L | 60.5 |
| k | 4.5 |
| t | 28 |
| Artikelnummer | MIM-A 075 |
| RSK | 2665351 |
| da(OD) | 75 |
| dsp | 92.5 |
| L | 70 |
| k | 3 |
| t | 33.5 |
| Artikelnummer | MIM-A 090 |
| RSK | 2665352 |
| da(OD) | 90 |
| dsp | 115 |
| L | 78.5 |
| k | 6 |
| t | 36 |
| Artikelnummer | MIM-A 110 |
| RSK | 2665353 |
| da(OD) | 110 |
| dsp | 135 |
| L | 92 |
| k | 6 |
| t | 43 |
