Muff inv. svets/inv. gänga

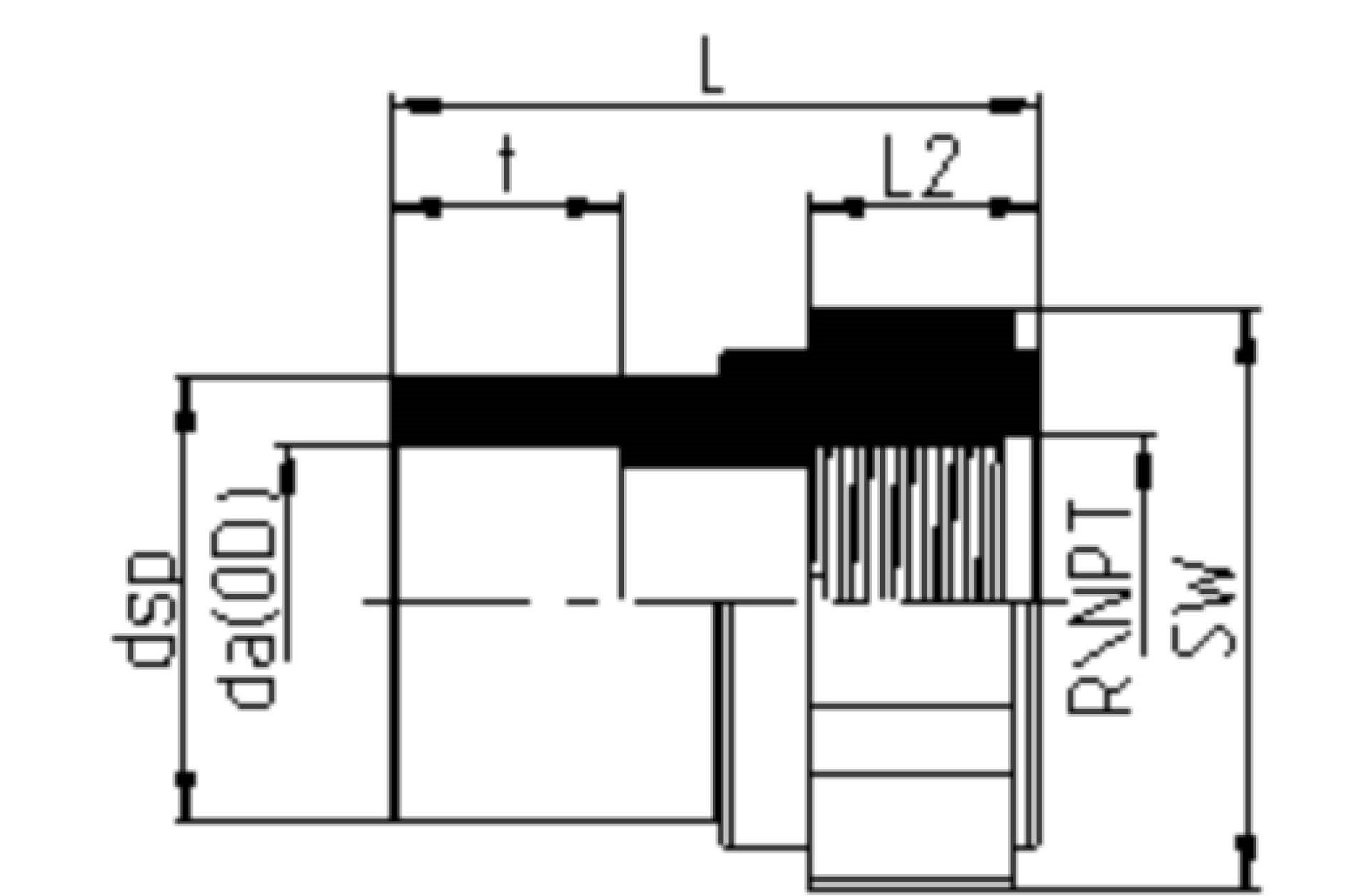

| Artikelnummer | RSK | dxR | da(OD) | L | L2 | SW | R | dsp | Filer |
|---|---|---|---|---|---|---|---|---|---|
| MIFM-A 020-R015 | 2665354 | 20x1/2" | 20 | 45 | 16 | 32 | 1/2" | 29 | CAD/Step |
| MIFM-A 025-R020 | 2665355 | 25×3/4" | 25 | 50.5 | 18 | 41 | 3/4" | 35 | CAD/Step |
| MIFM-A 032-R025 | 2665356 | 32×1" | 32 | 57 | 20 | 46 | 1" | 43 | CAD/Step |
| MIFM-A 040-R032 | 2665357 | 40×1 1/4" | 40 | 62.5 | 24 | 55 | 1 1/4" | 52.5 | CAD/Step |
| MIFM-A 050-R040 | 2665358 | 50×1 1/2" | 50 | 68 | 25.5 | 70 | 1 1/2" | 65 | CAD/Step |
| MIFM-A 063-R050 | 2665359 | 63×2" | 63 | 74 | 30 | 85 | 2" | 81 | CAD/Step |
| MIFM 090-R080 | 90×3" | 90 |
| Artikelnummer | MIFM-A 020-R015 |
| RSK | 2665354 |
| dxR | 20x1/2" |
| da(OD) | 20 |
| L | 45 |
| L2 | 16 |
| SW | 32 |
| R | 1/2" |
| dsp | 29 |
| Artikelnummer | MIFM-A 025-R020 |
| RSK | 2665355 |
| dxR | 25×3/4" |
| da(OD) | 25 |
| L | 50.5 |
| L2 | 18 |
| SW | 41 |
| R | 3/4" |
| dsp | 35 |
| Artikelnummer | MIFM-A 032-R025 |
| RSK | 2665356 |
| dxR | 32×1" |
| da(OD) | 32 |
| L | 57 |
| L2 | 20 |
| SW | 46 |
| R | 1" |
| dsp | 43 |
| Artikelnummer | MIFM-A 040-R032 |
| RSK | 2665357 |
| dxR | 40×1 1/4" |
| da(OD) | 40 |
| L | 62.5 |
| L2 | 24 |
| SW | 55 |
| R | 1 1/4" |
| dsp | 52.5 |
| Artikelnummer | MIFM-A 050-R040 |
| RSK | 2665358 |
| dxR | 50×1 1/2" |
| da(OD) | 50 |
| L | 68 |
| L2 | 25.5 |
| SW | 70 |
| R | 1 1/2" |
| dsp | 65 |
| Artikelnummer | MIFM-A 063-R050 |
| RSK | 2665359 |
| dxR | 63×2" |
| da(OD) | 63 |
| L | 74 |
| L2 | 30 |
| SW | 85 |
| R | 2" |
| dsp | 81 |
| Artikelnummer | MIFM 090-R080 |
| RSK | |
| dxR | 90×3" |
| da(OD) | 90 |
