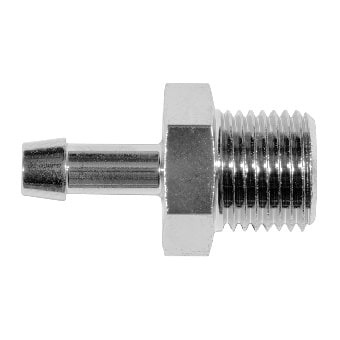

Mässings slangsockel

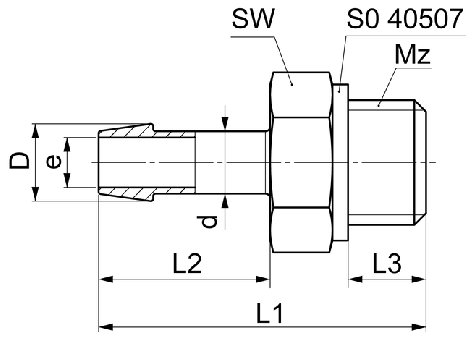

| Artikelnummer | RSK | d | G | SW | L1/L2 | D | e | Filer |
|---|---|---|---|---|---|---|---|---|
| 3661143006 | 1.5 | M5 | 7 | 14/6/4.5 | 2 | 1 | ||
| 3661143011 | 1.5 | M8x1 | 10 | 16/6/6 | 2 | 1 | ||
| 3661143020 | 2 | M5 | 7 | 15/7/4.5 | 2.5 | 1.4 | ||
| 3661143030 | 2.5 | M5 | 7 | 16/8/4.5 | 3 | 1.9 | ||
| 3661143035 | 2 | M8x1 | 10 | 17/7/6 | 2.5 | 1.4 | ||
| 3661143043 | 2.5 | M8x1 | 10 | 18/8/6 | 3 | 1.9 | ||
| 3661143050 | 3 | M5 | 7 | 17/9/4.5 | 3.7 | 2.3 | ||
| 3661143060 | 3 | M8x1 | 10 | 19/9/6 | 3.7 | 2.3 | ||
| 3661143080 | 4 | M5 | 7 | 19/11/4.5 | 5 | 3.2 | ||
| 3661143090 | 4 | M8x1 | 10 | 21/11/6 | 5 | 3.2 |
| Artikelnummer | 3661143006 |
| RSK | |
| d | 1.5 |
| G | M5 |
| SW | 7 |
| L1/L2 | 14/6/4.5 |
| D | 2 |
| e | 1 |
| Artikelnummer | 3661143011 |
| RSK | |
| d | 1.5 |
| G | M8x1 |
| SW | 10 |
| L1/L2 | 16/6/6 |
| D | 2 |
| e | 1 |
| Artikelnummer | 3661143020 |
| RSK | |
| d | 2 |
| G | M5 |
| SW | 7 |
| L1/L2 | 15/7/4.5 |
| D | 2.5 |
| e | 1.4 |
| Artikelnummer | 3661143030 |
| RSK | |
| d | 2.5 |
| G | M5 |
| SW | 7 |
| L1/L2 | 16/8/4.5 |
| D | 3 |
| e | 1.9 |
| Artikelnummer | 3661143035 |
| RSK | |
| d | 2 |
| G | M8x1 |
| SW | 10 |
| L1/L2 | 17/7/6 |
| D | 2.5 |
| e | 1.4 |
| Artikelnummer | 3661143043 |
| RSK | |
| d | 2.5 |
| G | M8x1 |
| SW | 10 |
| L1/L2 | 18/8/6 |
| D | 3 |
| e | 1.9 |
| Artikelnummer | 3661143050 |
| RSK | |
| d | 3 |
| G | M5 |
| SW | 7 |
| L1/L2 | 17/9/4.5 |
| D | 3.7 |
| e | 2.3 |
| Artikelnummer | 3661143060 |
| RSK | |
| d | 3 |
| G | M8x1 |
| SW | 10 |
| L1/L2 | 19/9/6 |
| D | 3.7 |
| e | 2.3 |
| Artikelnummer | 3661143080 |
| RSK | |
| d | 4 |
| G | M5 |
| SW | 7 |
| L1/L2 | 19/11/4.5 |
| D | 5 |
| e | 3.2 |
| Artikelnummer | 3661143090 |
| RSK | |
| d | 4 |
| G | M8x1 |
| SW | 10 |
| L1/L2 | 21/11/6 |
| D | 5 |
| e | 3.2 |
