SO NV 51A40E

Reglerventil vinkel 90° union/utv. gänga

Reglerbar vinkelventil med övergångsnippel
SS 316 Ti, 1.4571
*med reducerande klämring

Modeller
Dokument

Modeller

Visa alla mått +

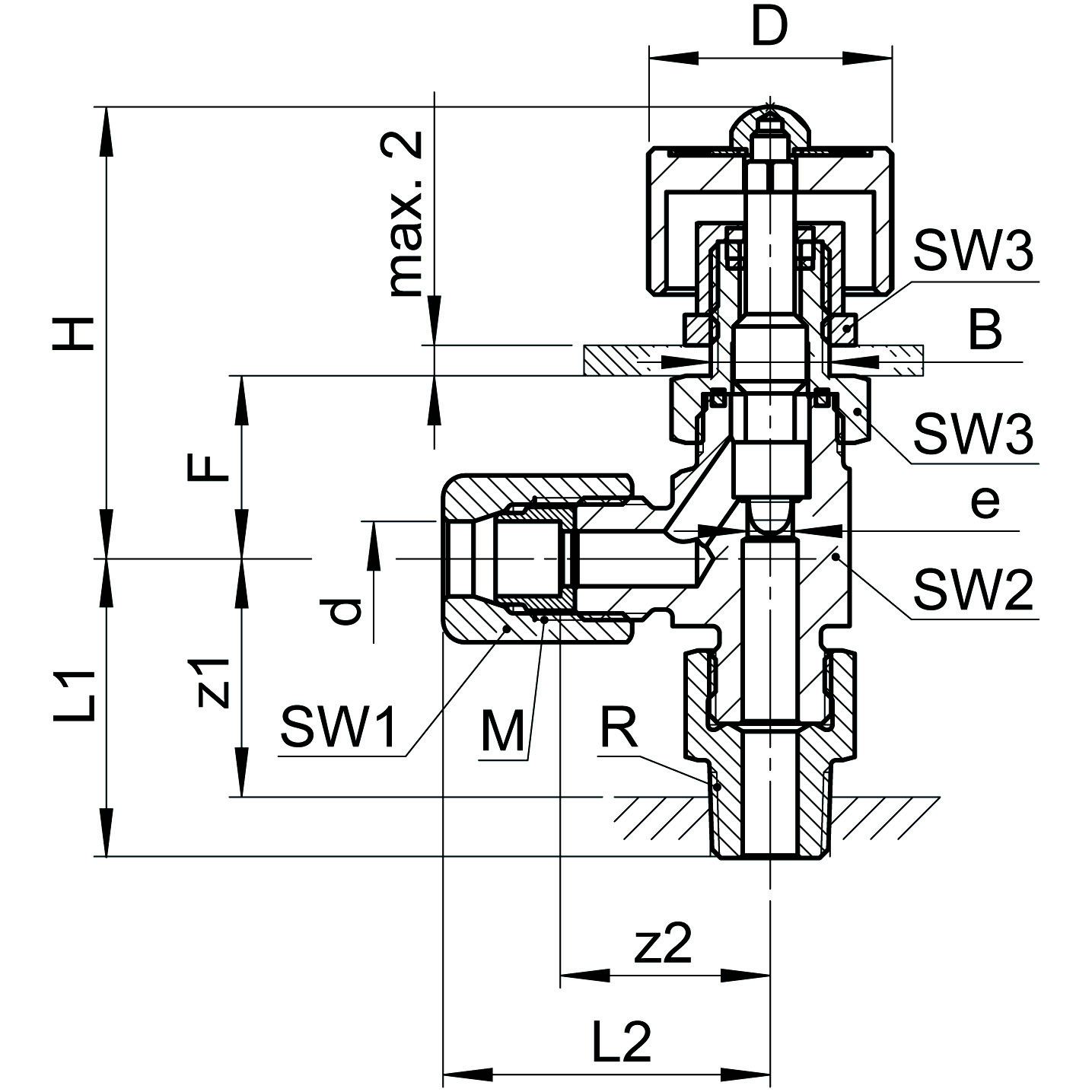

Artikelnummer	RSK	d	G	bar	e	M	SW1/SW2/SW3	H	F	L1/L2	z1/z2	Filer
0680023065		4	1/4	100	3.5	10 x 1	12/14/14	37	14.5	28,5/25	19/17
0680023084		5	1/4	100	3.5	10 x 1	12/14/14	37	14.5	28,5/25	19/17
0680023180		8	3/8	64	6.5	14 x 1	17/22/22	51	21.5	31/35	21/23,5
0680023185		8	1/2	64	6.5	14 x 1	17/22/22	51	21.5	32/35	19/23,5
0680023230		9.52	1/4	64	7	14 x 1	17/22/22	51	21.5	31/34,5	21,5/23,5
0680023235		9.52	3/8	64	7	14 x 1	17/22/22	51	21.5	31/34,5	21/23,5
0680023240		9.52	1/2	64	7	14 x 1	17/22/22	51	21.5	32/34,5	16/23,5
0680023270		10	1/4	64	7	14 x 1	17/22/22	51	22	31/35	21,5/23,5
0680023280		10	3/8	64	7	14 x 1	17/22/22	51	22	31/35	21/23,5
0680023285		10	1/2	64	7	14 x 1	17/22/22	51	22	32/35	19/23,5
0680023400		12	1/2	64	7	16 x 1	19/22/22	51	21.5	36/36	23/23,5
0680023434		12.7	1/2	64	7	20 X 1,5	22/24/24	51	21.5	36/36	36/36
0680023534		15	1/2	64	7	20 X 1,5	22/24/24	51	21.5	36/36	23/23,5

Dokument

Datablad
