Name: SO NV 51A40
SKU: 39858

Visa alla mått +

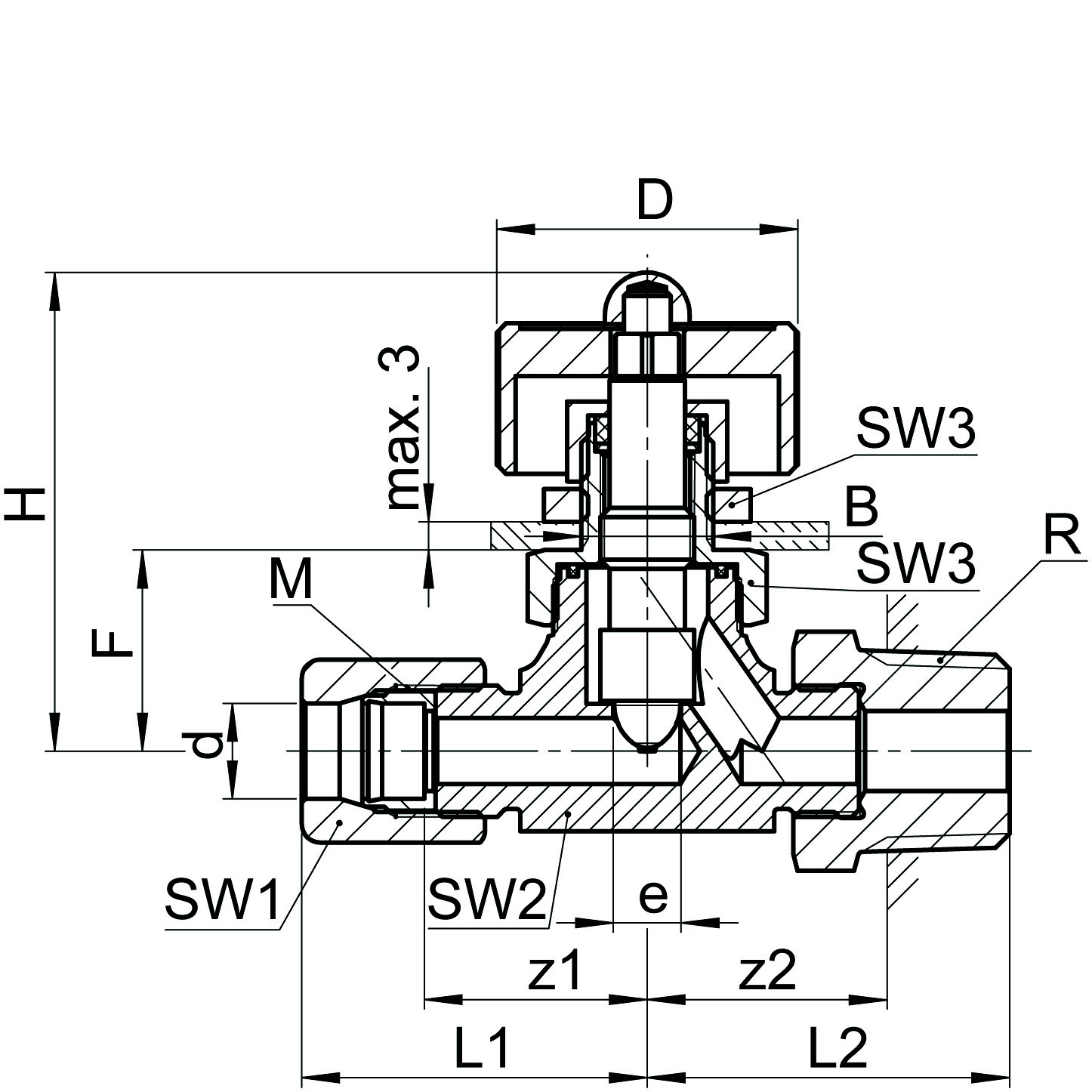

Artikelnummer	d	R	kv	bar	M	SW1/SW2/SW3	L1/L2	z1/z2	H	F
680014040	3	1/8	3	100	6 x 0,75	12/14/14	25/27	17/20,5	37	14.5
680014060	4	1/8	3	100	10 x 1	12/14/14	25/27	17/20,5	37	14.5
680014065	4	1/4	3	100	10 x 1	12/14/14	25/31	17/21,5	37	14.5
680014082	5	1/8	3.2	100	10 x 1	12714/14	25/27	17/20,5	37	14.5
680014084	5	1/4	3.2	100	10 x 1	12/14/14	25/31	17/21,5	37	14.5
680014100	6	1/8	3.5	100	10 x 1	12/14/14	25/27	17/20,5	37	14.5
680014110	6	1/4	3.5	100	10 x 1	12/14/14	25/31	17/21,5	37	14.5
680014135	6.35	1/8	3.5	100	10 x 1	12/14/14	25/27	17/20,5	37	14.5
680014140	6.35	1/4	3.5	100	10 x 1	12/14/14	25/31	17/21	37	14.5
680014160	8	1/8	3.5	100	12 x 1	14/14/14	27/28,5	18,5/22	37	14.5
680014170	8	1/4	3.5	100	12 x 1	14/14/14	27/32,5	18,5/23	37	14.5
680014180	8	3/8	3.5	100	12 x 1	14/14/14	27/32,5	18,5/22,5	37	14.5
680014185	8	1/2	3.5	100	12 x 1	14/14/14	27/36,5	18,5/23,5	37	14.5
680014230	9.52	1/4	10.5	64	14 x 1	17/22/22	34,5/37,5	23,5/27,5	51	21
680014235	9.52	3/8	10.5	64	14 x 1	17/22/22	34,5/37,5	23,5/27,5	51	21
680014240	9.52	1/2	10.5	64	14 x 1	17/22/22	34,5/38,5	23,5/25,5	51	21
680014270	10	1/4	10.5	64	14 x 1	17/22/22	35/37,5	23,5/28	51	21.5
680014280	10	3/8	10.5	64	14 x 1	17/22/22	35/37,5	23,5/27,5	51	21.5
680014285	10	1/2	10.5	64	14 x 1	17/22/22	35/38,5	23,5/25,5	51	21.5
680014380	12	1/4	12.5	64	16 x 1	19/22/22	36/38,5	23,5/29	51	21
680014390	12	3/8	12.5	64	16 x 1	19/22/22	36/37,5	23,5/27,5	51	21
680014400	12	1/2	12.5	64	16 x 1	19/22/22	36/41,5	23,5/28,5	51	21
680014434	12.7	1/2	12.5	64	20 x 1,5	24/24/22	39,5/43,5	26/30,5	52	22
680014534	15	1/2	12.5	64	20 x 1,5	24/24/22	39,5/43,5	26/30,5	52	22

Datablad

Produktblad

SO NV 51A40
