Name: Industri A2 M8/M10
SKU: 93930

Visa alla mått +

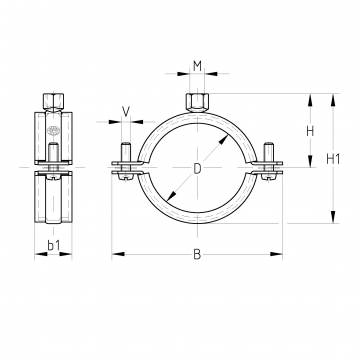

Artikelnummer	Spännvidd (mm)	M	B	b1	H	H1	V	Filer
MU-157024	14-20	M8/M10	64	23	35.5	55	M6 x 20	CAD/Step
MU-157025	21-26	M8/M10	71	23	38.5	61	M6 x 20	CAD/Step
MU-157026	26-30	M8/M10	75	23	40.5	65	M6 x 20	CAD/Step
MU-157027	31-38	M8/M10	81	23	43.5	71	M6 x 25	CAD/Step
MU-157028	40-47	M8/M10	91	23	48.5	81	M6 x 25	CAD/Step
MU-157029	48-54	M8/M10	100	23	52.5	89	M6 x 25	CAD/Step
MU-157120	54-60	M8/M10	105	23	55	94	M6 x 25	CAD/Step
MU-157121	60-66	M8/M10	111	23	58	100	M6 x 25	CAD/Step
MU-157122	68-73	M8/M10	126	28	62.5	109	M8 x 35	CAD/Step
MU-157123	73-80	M8/M10	131	28	65	114	M8 x 35	CAD/Step
MU-157124	82-87	M8/M10	142	28	70	124	M8 x 35	CAD/Step
MU-157125	87-94	M8/M10	146	28	72	128	M8 x 40	CAD/Step
MU-157126	99-104	M8/M10	157	28	77.5	139	M8 x 40	CAD/Step
MU-157127	105-112	M8/M10	166	28	82	148	M8 x 40	CAD/Step
MU-157128	112-118	M8/M10	172	28	85	154	M8 x 40	CAD/Step
MU-157129	122-128	M8/M10	182	28	90	164	M8 x 40	CAD/Step
MU-157130	132-137	M8/M10	191	28	94.5	173	M8 x 40	CAD/Step
MU-157131	137-142	M8/M10	196	28	97	178	M8 x 40	CAD/Step
MU-157132	159-164	M8/M10	218	28	108	200	M8 x 40	CAD/Step
MU-157133	164-169	M8/M10	223	28	110.5	205	M8 x 40	CAD/Step

Datablad

Produktblad

Industri A2 M8/M10
