BEF-HP

Union

PVDF-union
Formsprutad
Lång skänkel
Stumsvetning, IR-svetsning och elmuff
O-ring i VITON (PTFE mot förfrågan)
PN 10 = SDR 33
PN 16 = SDR 21
High Purity levereras i förslutna plastplåsar

Modeller
Dokument

Modeller

Visa alla mått +

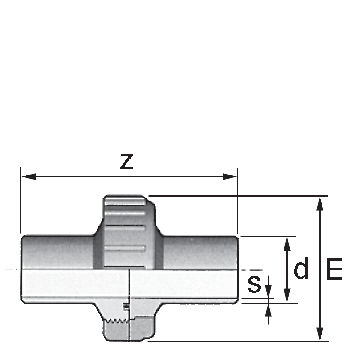

Artikelnummer	d	s	Z	E
BEF-HP21-020	20	1.9	106	43
BEF-HP21-025	25	1.9	112	53
BEF-HP21-032	32	2.4	120	60
BEF-HP21-040	40	2.4	125	76.5
BEF-HP21-050	50	3	132	82
BEF-HP21-063	63	3	137	100
BEF-HP21-075	75	3.6	132	130
BEF-HP21-090	90	4.3	130	130

Dokument

Datablad

Produktblad

Teknisk information

Teknisk information
