Hem / Produkter / Ventiler / Backventiler / 570

570

Spjällbackventil fjäderbelastad

PP-spjällbackventil med fjäder
PN 6
Klaff och hus PP
EPDM-tätning (FPM tätning mot förfrågan)
Använd kraghylsa QBSM (PP) och QBSE (PE)
Större dimensioner mot förfrågan

Modeller

Visa alla mått +

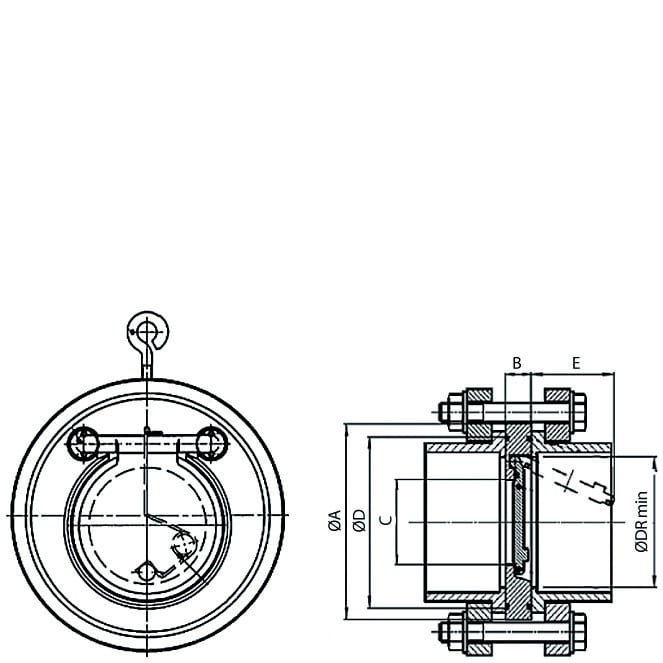

Artikelnummer	RSK	d	DN	A	B	C	Öppningstryck m bar ×
570032	4425534	40	32	85	15	18	20
570040	4425535	50	40	95	16	22	20
570050	4425536	63	50	109	18	32	20
570065	4425537	75	65	129	20	40	20
570080	4425538	90	80	144	20	54	20
570100	4425539	110	100	164	23	70	20
570125	4425540	140	125	195	23	92	20
570150	4425541	160	150	220	26	105	20
570200	4425542	225	200	275	34	154	20
570250		280	250	330	40	192	20
570300		315	300	380	45	227	20

Dokument

Datablad

Produktblad

Teknisk information

Teknisk information

Tillbehör
