SO53625 T

T-rör justerbar

Visa alla mått +

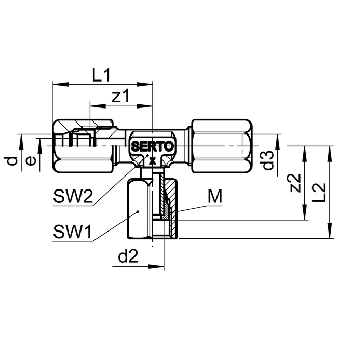

Artikelnummer	d	d2	d3	bar	M	SW1/SW2	L1/L2	z1/z2	e
583620045	4	6	4	200	M10x1	12/9	24/25.5	16/19	3.5
583620053	5	6	5	200	M10x1	12/9	24/25.5	16/19	4
583620060	6	6	6	200	M10x1	12/9	24/25.5	16/19	4
583620063	6	8	6	200	M12x1	14/10	26.5/31.5	18/24	4.5
583620067	6.35	6	6.35	200	M10x1	12/9	24/25.5	16/19	4
583620070	6.35	8	6.35	200	M12x1	14/10	26.5/31.5	18/24	4.5
583620083	8	10	8	160	M14x1	17/12	32/33.5	20.5/26.5	6.5
583620100	10	10	10	160	M14x1	17/12	32/33.5	20.5/26.5	7
583620120	12	12	12	160	M16x1	19/17	33.5/34.5	21.5/27.5	9
