M1OU/CE-E

PVC-kulventil flänsad PN 10/16 elektriskt don EPDM

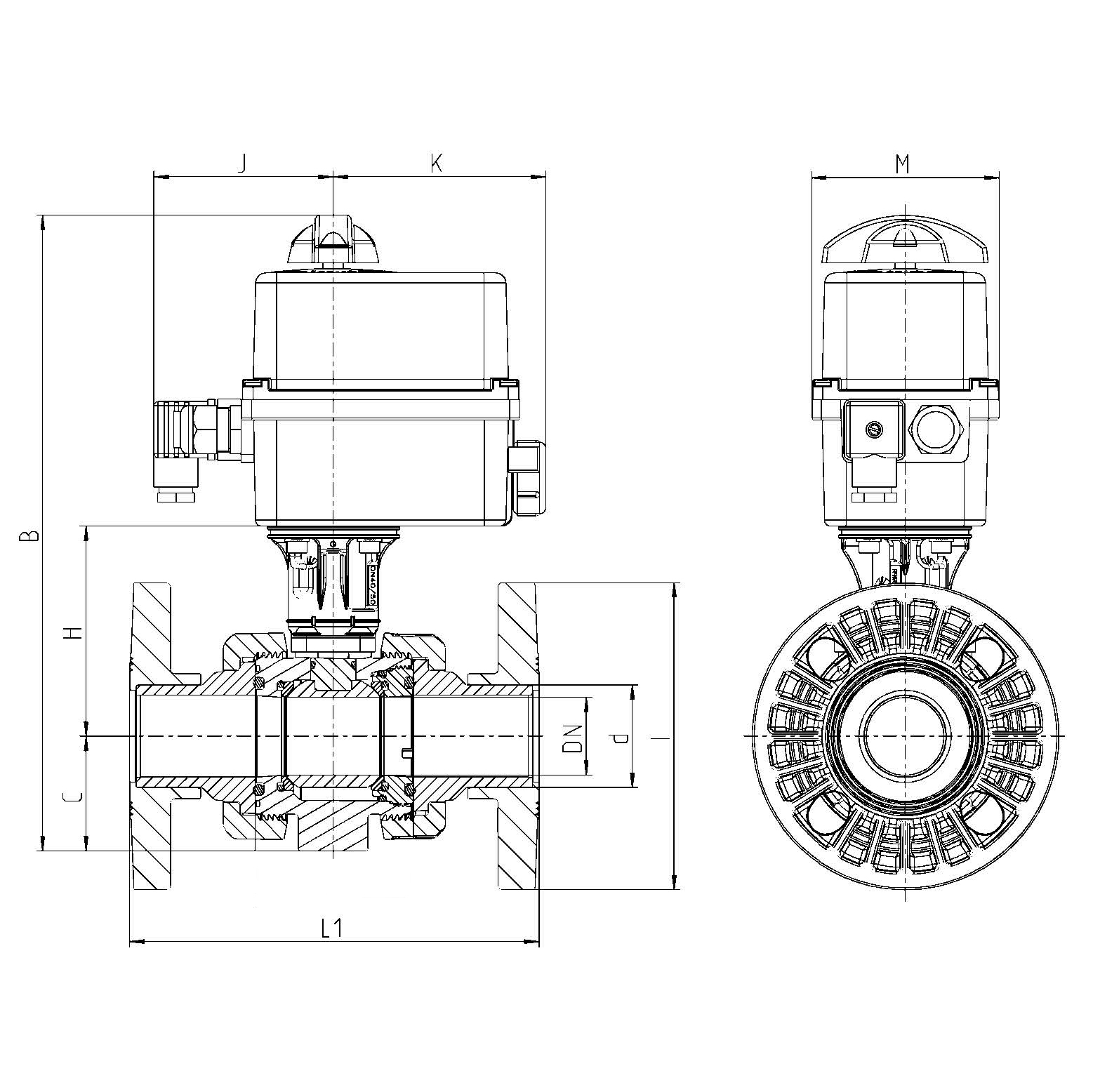

Visa alla mått +

Artikelnummer	d	DN	I	L1	C	H	B	J	K	M
M1OU/CE-E-020	20	15	97	130	33	80	265	90	107	92
M1OU/CE-E-025	25	20	105	150	40	85.5	277.5	90	107	92
M1OU/CE-E-032	32	25	125	160	43	88	283	90	107	92
M1OU/CE-E-040	40	32	140	180	51	97	300	90	107	92
M1OU/CE-E-050	50	40	150	200	56	103	311	90	107	92
M1OU/CE-E-063	63	50	165	230	64	109.5	325.5	90	107	92
M1OU/CE-E-075	75	65	185	266	85	136.5	398	98	107	128
M1OU/CE-E-090	90	80	200	307.5	100	159.5	436.5	98	107	128
M1OU/CE-E-110	110	80	229	324.5	100	159.5	436.5	98	107	128

Datablad
