M1OM/CE-E

PP-kulventil flänsad DIN PN10/16 elektriskt don EPDM

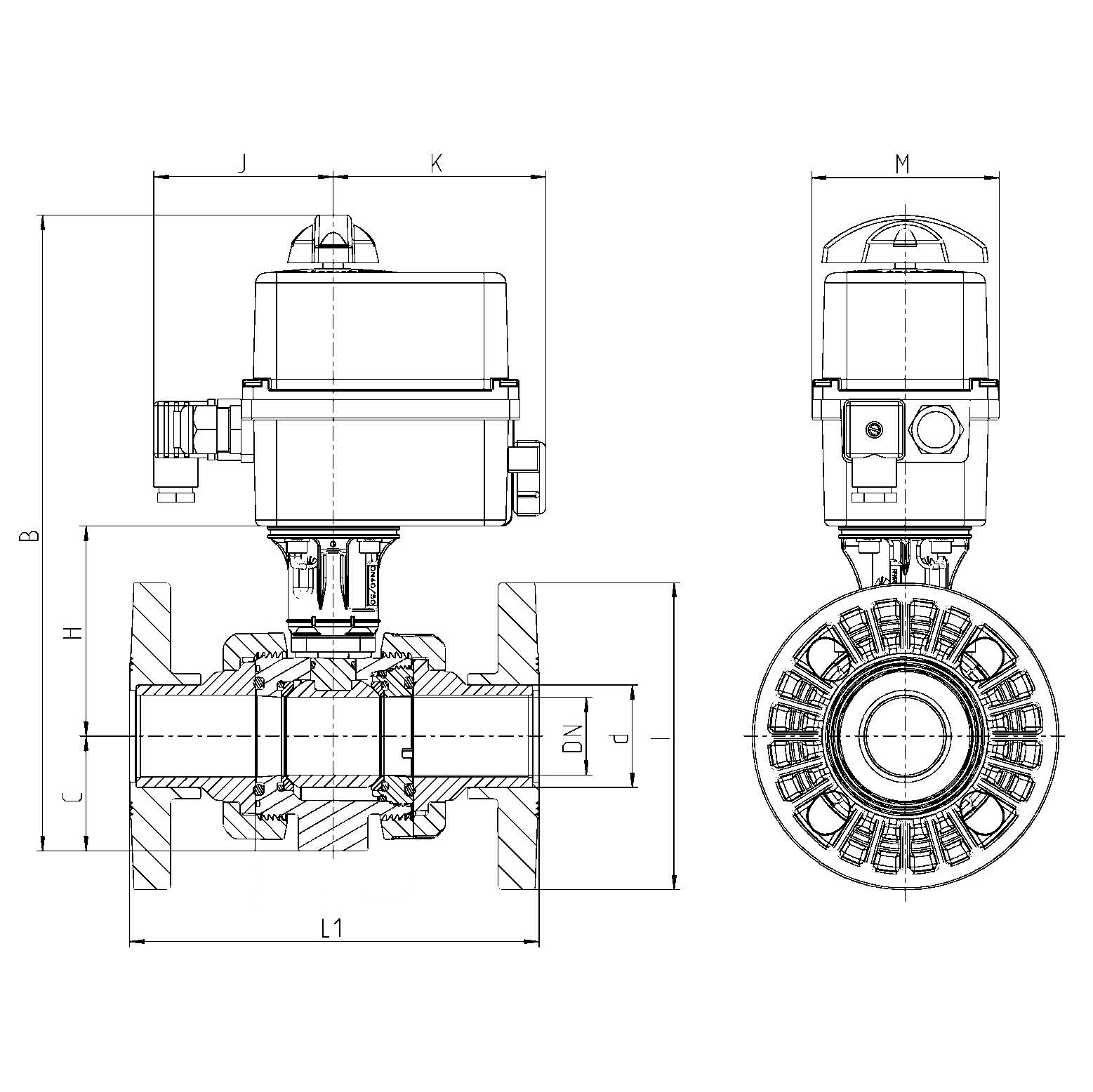

Visa alla mått +

Artikelnummer	d	DN	I	L1	C	H	B	J	K	M
M1OM/CE-E-020	20	15	95	203	33	81	266	90	107	92
M1OM/CE-E-025	25	20	108	225	40	86.5	278.5	90	107	92
M1OM/CE-E-032	32	25	115	236	43.5	89.5	285	90	107	92
M1OM/CE-E-040	40	32	140	253	51	97	300	90	107	92
M1OM/CE-E-050	50	40	150	274	56.5	104.5	313	90	107	92
M1OM/CE-E-063	63	50	165	308	64.5	111.5	328	90	107	92
M1OM/CE-E-075	75	65	186	420	85	138.5	400	98	107	128
M1OM/CE-E-090	90	80	202	380	100	168	445	98	107	128
M1OM/CE-E-110	110	80	220	437	100	168	445	98	107	128

Datablad
