SO NV 51A40E

Syrafast Reglerventil vinkel 90° utv gänga PTFE

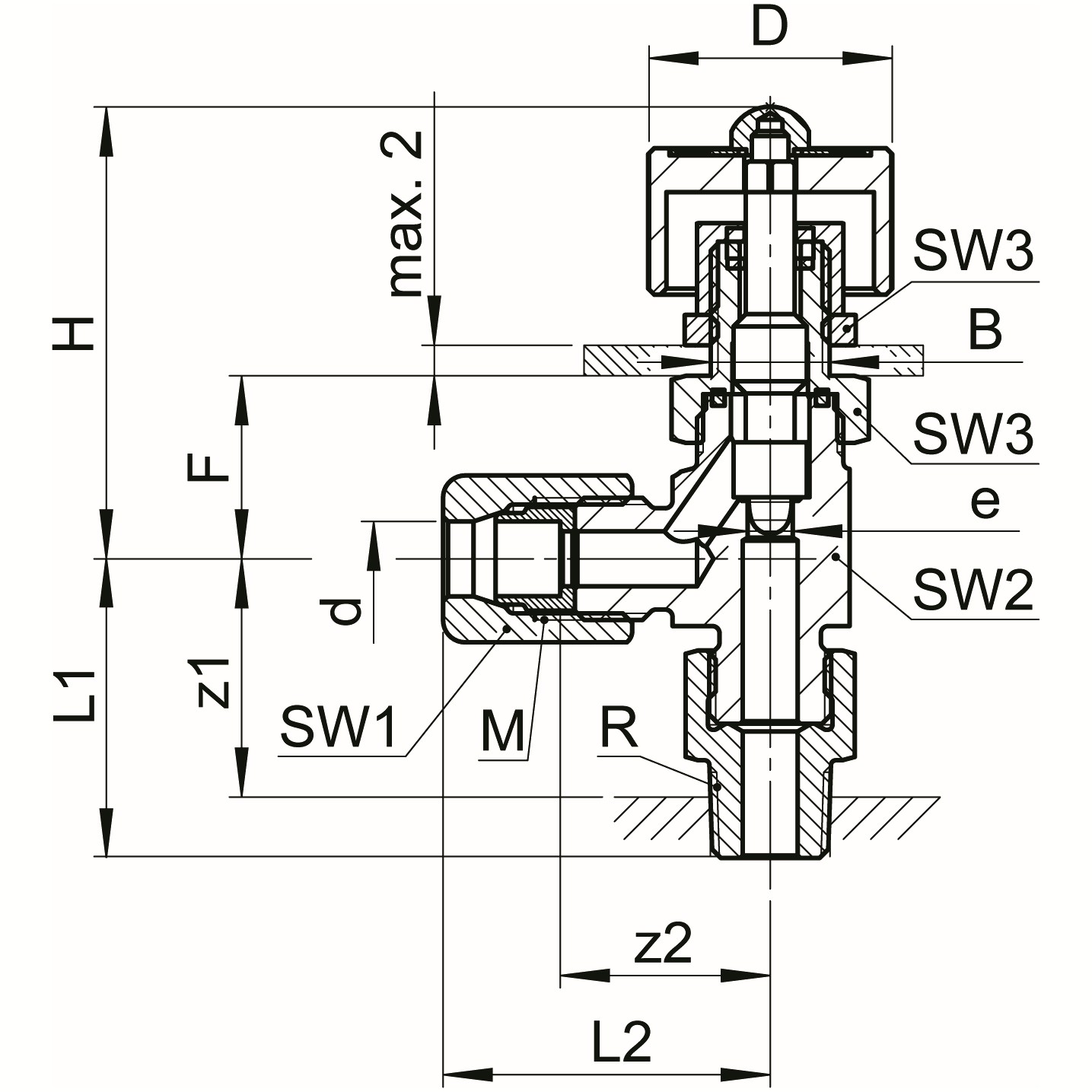

Visa alla mått +

Artikelnummer	d	G	bar	e	M	SW1/SW2/SW3	H	F	L1/L2	z1/z2
0680023065	4	1/4	100	3.5	10 x 1	12/14/14	37	14.5	28,5/25	19/17
0680023084	5	1/4	100	3.5	10 x 1	12/14/14	37	14.5	28,5/25	19/17
0680023180	8	3/8	64	6.5	14 x 1	17/22/22	51	21.5	31/35	21/23,5
0680023185	8	1/2	64	6.5	14 x 1	17/22/22	51	21.5	32/35	19/23,5
0680023230	9.52	1/4	64	7	14 x 1	17/22/22	51	21.5	31/34,5	21,5/23,5
0680023235	9.52	3/8	64	7	14 x 1	17/22/22	51	21.5	31/34,5	21/23,5
0680023240	9.52	1/2	64	7	14 x 1	17/22/22	51	21.5	32/34,5	16/23,5
0680023270	10	1/4	64	7	14 x 1	17/22/22	51	22	31/35	21,5/23,5
0680023280	10	3/8	64	7	14 x 1	17/22/22	51	22	31/35	21/23,5
0680023285	10	1/2	64	7	14 x 1	17/22/22	51	22	32/35	19/23,5
0680023400	12	1/2	64	7	16 x 1	19/22/22	51	21.5	36/36	23/23,5
