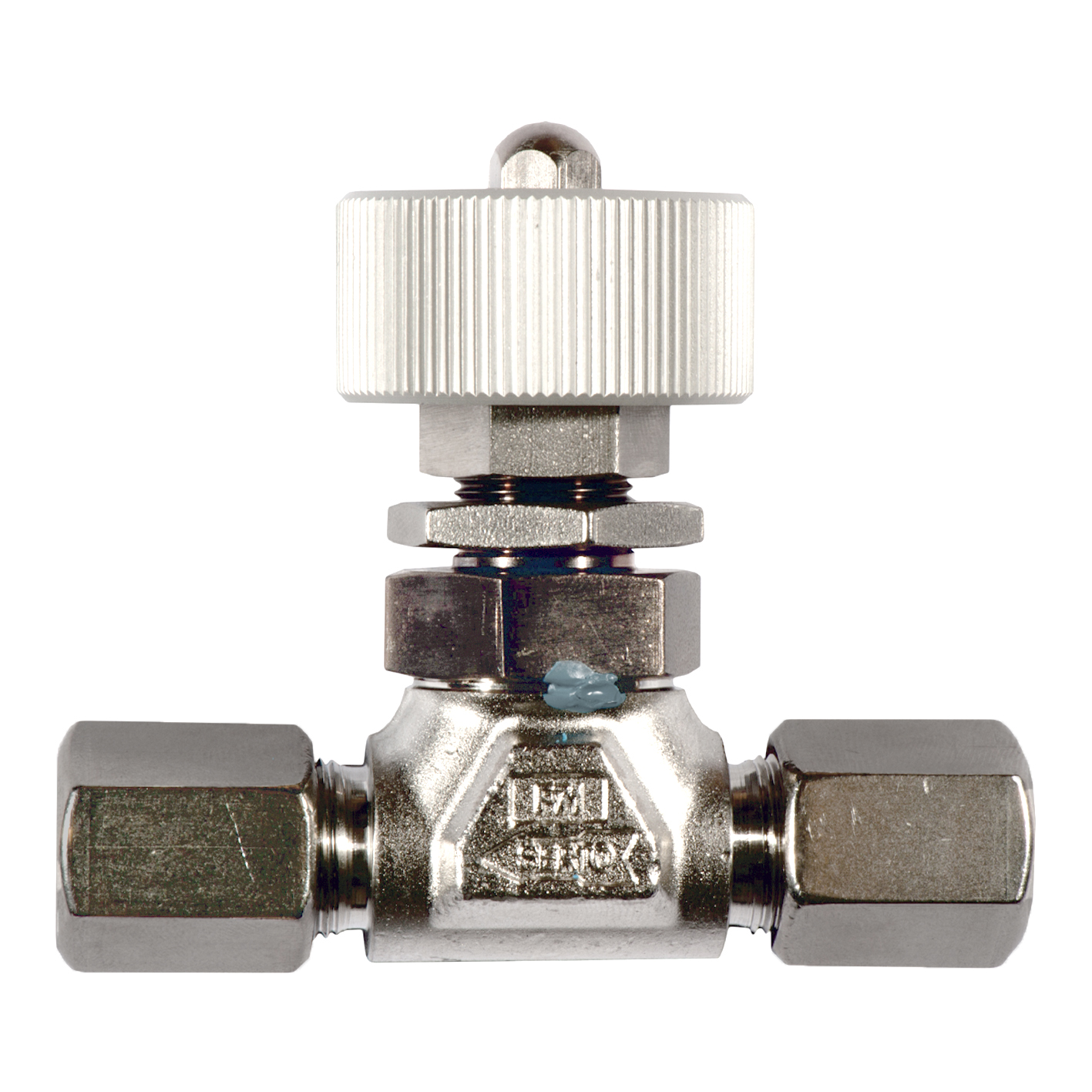

SO NV 51A21

Syrafast Reglerventil union PTFE

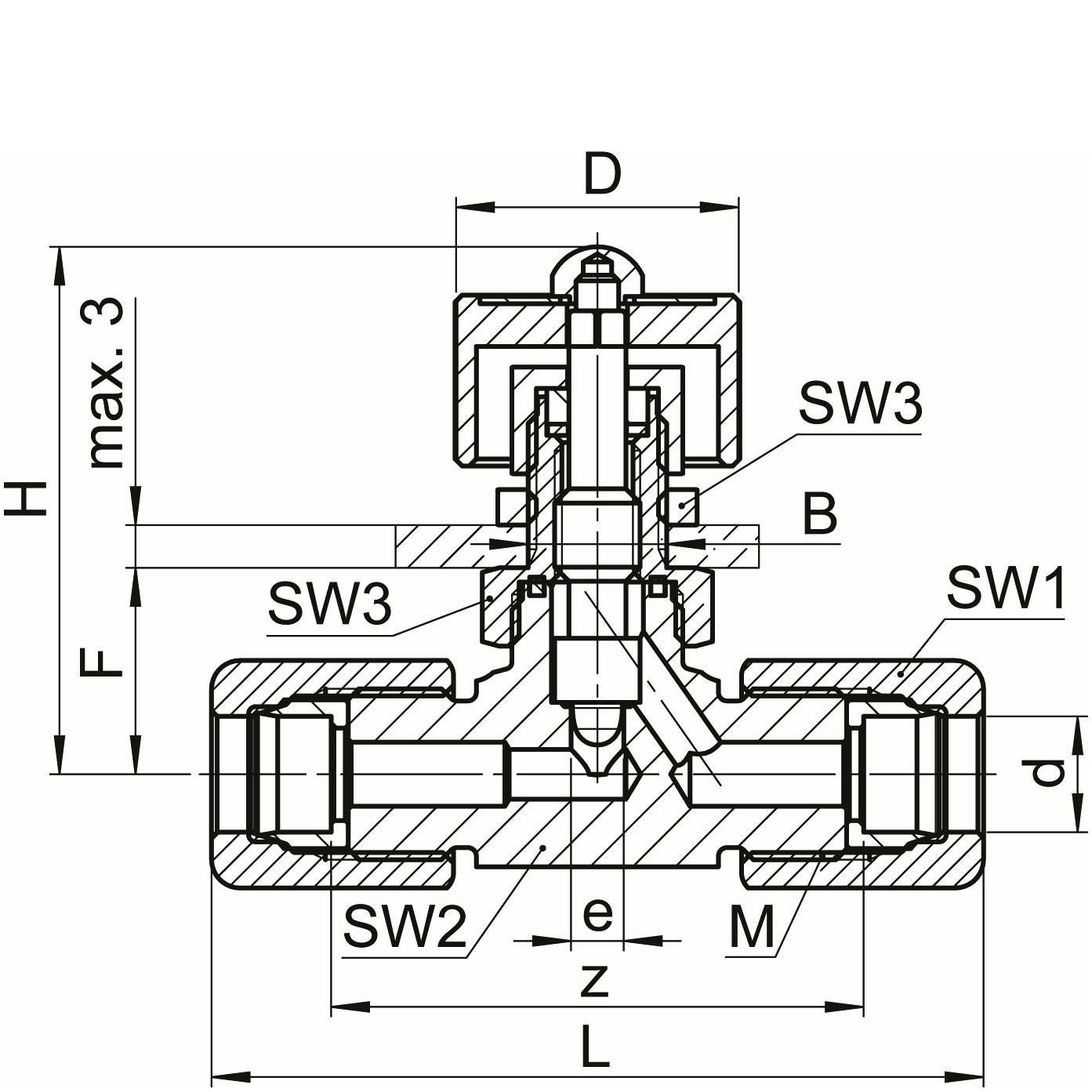

Visa alla mått +

Artikelnummer	d	bar	SW1/SW2/SW3	L	M	D	H	B	F	z/e	Flöde
0680011020	2	100	8/12/14	30	6 x 0,75	20	37	10	12.5	30/2,2
0680011030	3	100	8/12/14	30	6 x 0,75	20	37	10	12.5	30/2,2
0680011040	4	100	12/14/14	50	10 x 1	20	37	10	14.5	34/3,5	2.5 L/min
0680011050	5	100	12/14/14	50	10 x 1	20	37	10	14.5	34/3,5	2.5 L/min
0680011060	6	100	12/14/14	50	10 x 1	20	37	10	14.5	34/3,5	2.5 L/min
0680011080	8	100	14/14/14	54	12 x 1	20	37	10	14.5	37,5/3,5	3.5 L/min
0680011095	9.52	64	22/22/22	69	14 x 1	32	50.5	14.5	21	47,5/7	11.5 L/min
0680011100	10	64	17/22/22	70	14 x 1	32	50.5	14.5	21.5	47,5/7	11.5 L/min
0680011120	12	64	19/22/22	72	16 x 1	32	50.5	14.5	21	47,5/7	12.0 L/min
0680011127	12.7	64	24/24/22	79	20 x 1,5	32	51.5	14.5	22	52/7	13.0 L/min
0680011135	13.5	64	24/24/22	85	20 x 1,5	32	50.5	14.5	21	52/7	13.0 L/min
0680011140	14	64	24/24/22	80	20 x 1,5	32	51.5	14.5	22	52/7	13.0 L/min
0680011150	15	64	24/24/22	79	20 x 1,5	32	51.5	14.5	22	51,5/7	13.0 L/min

Datablad
