Name: SO NV 41A40
SKU: 41740

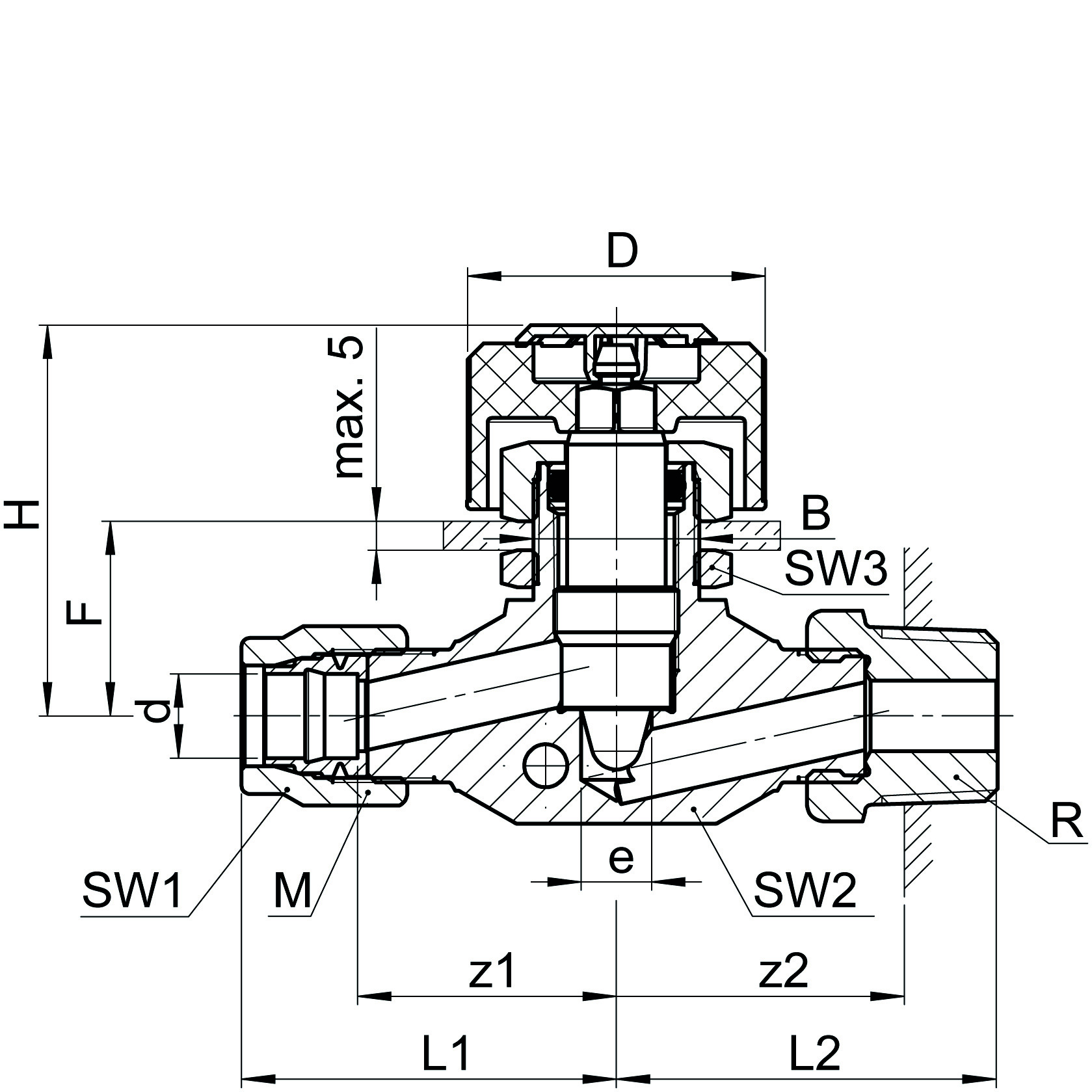

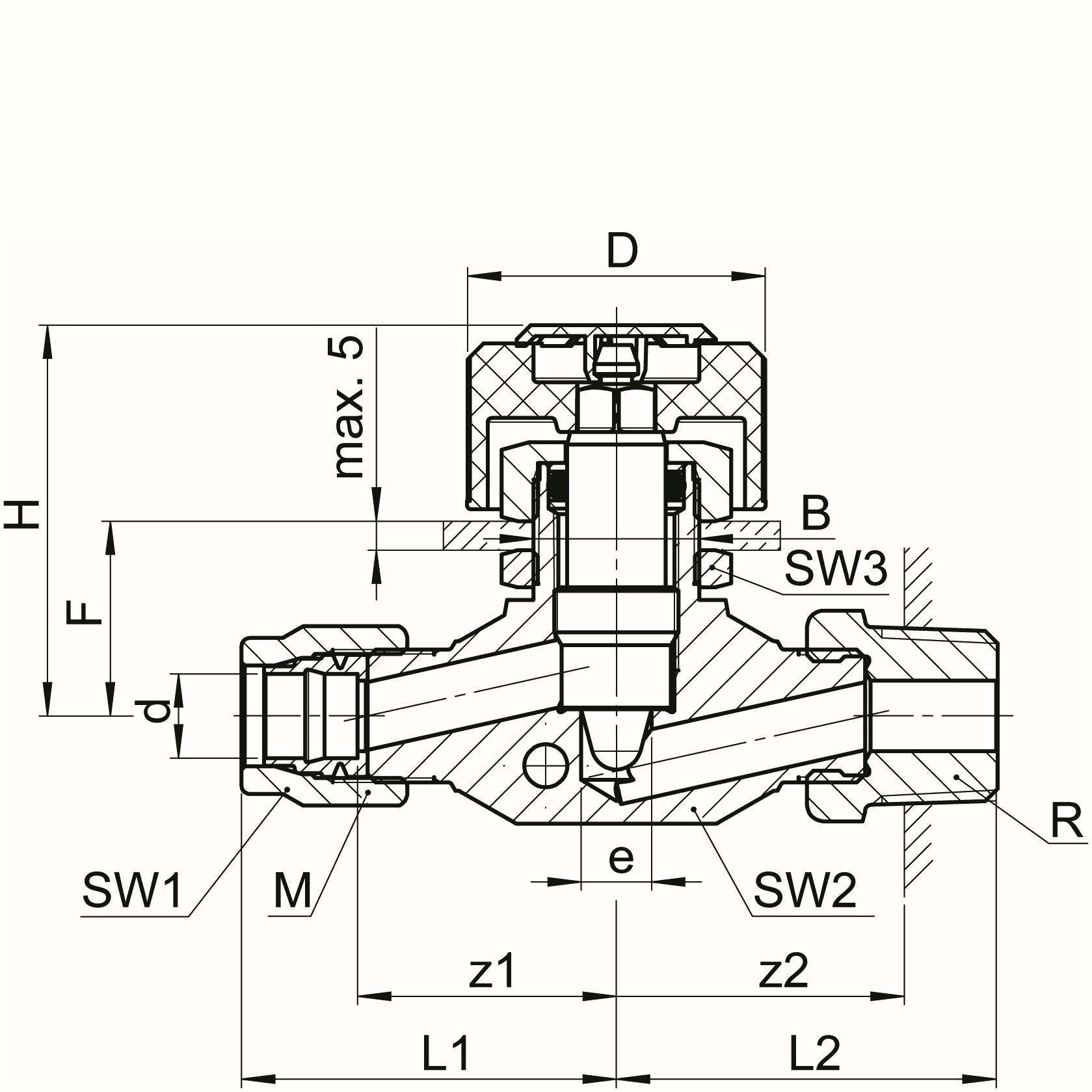

Visa alla mått +

Artikelnummer	d	R	bar	M	SW1/SW2/SW3	L1/L2	H	F	z1/z2	e
0280300060	4	1/8	50	10 x 1	12/14/19	30,5/33	47	19	23/26,5	3.4
0280300065	4	1/4	50	10 x 1	12/14/19	30,5/37	47	19	23/27,5	3.4
0280300068	4	3/8	50	10 x 1	12/14/19	30,5/36	47	19	23/26	3.4
0280300082	5	1/8	50	10 x 1	12/14/19	30,5/33	47	19	23/26,5	4
0280300084	5	1/4	50	10 x 1	12/14/19	30,5/37	47	19	23/27,5	4
0280300100	6	1/8	50	10 x 1	12/14/19	30,5/33	47	19	23,5/26,5	4
0280300110	6	1/4	50	10 x 1	12/14/19	30,5/37	47	19	23/27,5	4
0280300120	6	3/8	50	10 x 1	12/14/19	30,5/36	47	19	23,5/26	4
0280300135	6.35	1/8	50	10 x 1	12/14/19	30,5/33	41.5	19	23/26,5	3.7
0280300140	6.35	1/4	50	10 x 1	12/14/19	30,5/37	41.5	19	23/27,5	3.7
0280300145	6.35	3/8	50	10 x 1	12/14/19	30,5/36	41.5	19	23/26	3.7
0280300160	8	1/8	50	12 x 1	14/14/19	31/33	47	19	23/26,5	5
0280300170	8	1/4	50	12 x 1	14/14/19	31/37	47	19	23,5/27,5	5
0280300180	8	3/8	50	12 x 1	14/14/19	31/37	47	19	23,5/27	5
0280300230	9.52	1/4	50	14 x 1	17/18/24	38/48	54.5	21.5	27,5/31,5	9.2
0280300235	9.52	3/8	50	14 x 1	17/18/24	38/41	54.5	21.5	27,5/31	9.2
0280300240	9.52	1/2	50	14 x 1	17/18/24	38/42	54.5	21.5	27,5/29	9.2
0280300270	10	1/4	50	14 x 1	17/18/24	38/41	54.5	21.5	27,5/31,5	6.5
0280300280	10	3/8	50	14 x 1	17/18/24	38/41	54.5	21.5	27,5/31	6.5
0280300285	10	1/2	50	14 x 1	17/18/24	38/44	54.5	21.5	27,5/31	6.5
0280300380	12	1/4	50	16 x 1	19/18/24	43,5/46	56.5	23.5	32/36,5	8
0280300390	12	3/8	50	16 x 1	19/18/24	43,5/46	56.5	23.5	32/36	8
0280300400	12	1/2	50	16 x 1	19/18/24	43,5/49	56.5	23.5	32/36	8
0280300432	12.7	3/8	50	20 x 1,5	24/22/27	46/48	66	27.5	33,5/38	22.3
0280300434	12.7	1/2	50	20 x 1,5	24/22/27	46/50	66	27.5	33,5/37	22.3
0280300504	14	1/2	50	20 x 1,5	24/22/27	46/50	66	27.5	33,5/37	10
0280300534	15	1/2	50	20 x 1,5	24/22/27	46/50	66	27.5	33,5/37	10

Datablad

Produktblad

SO NV 41A40
