BIV

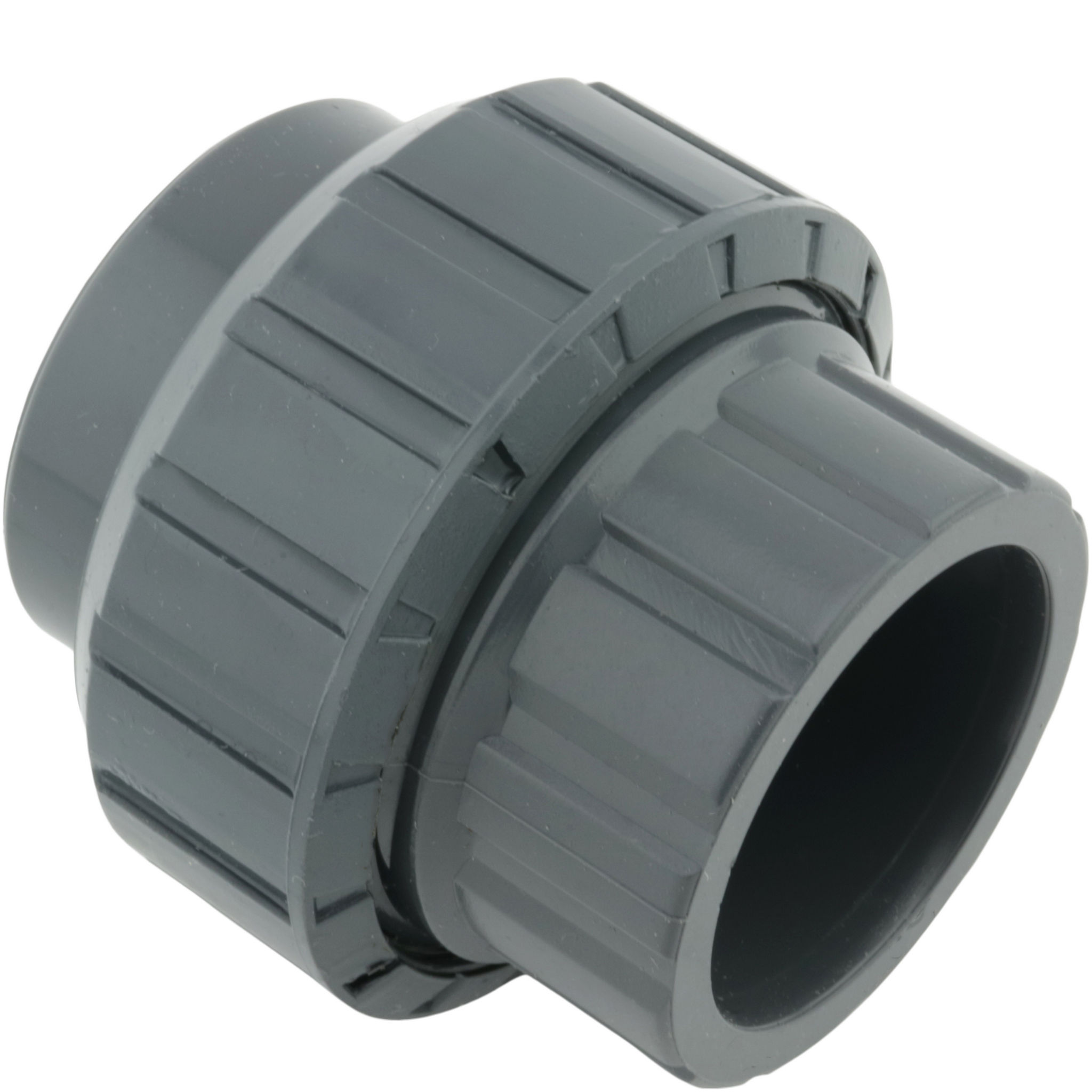

PVC Unionskoppling

  • PVC-U Unionkoppling
  • Invändig lim
  • EPDM O-ring
  • PN 16 d12-d63
  • PN 6 d75-d110
  • FPM O-ring säljes separat

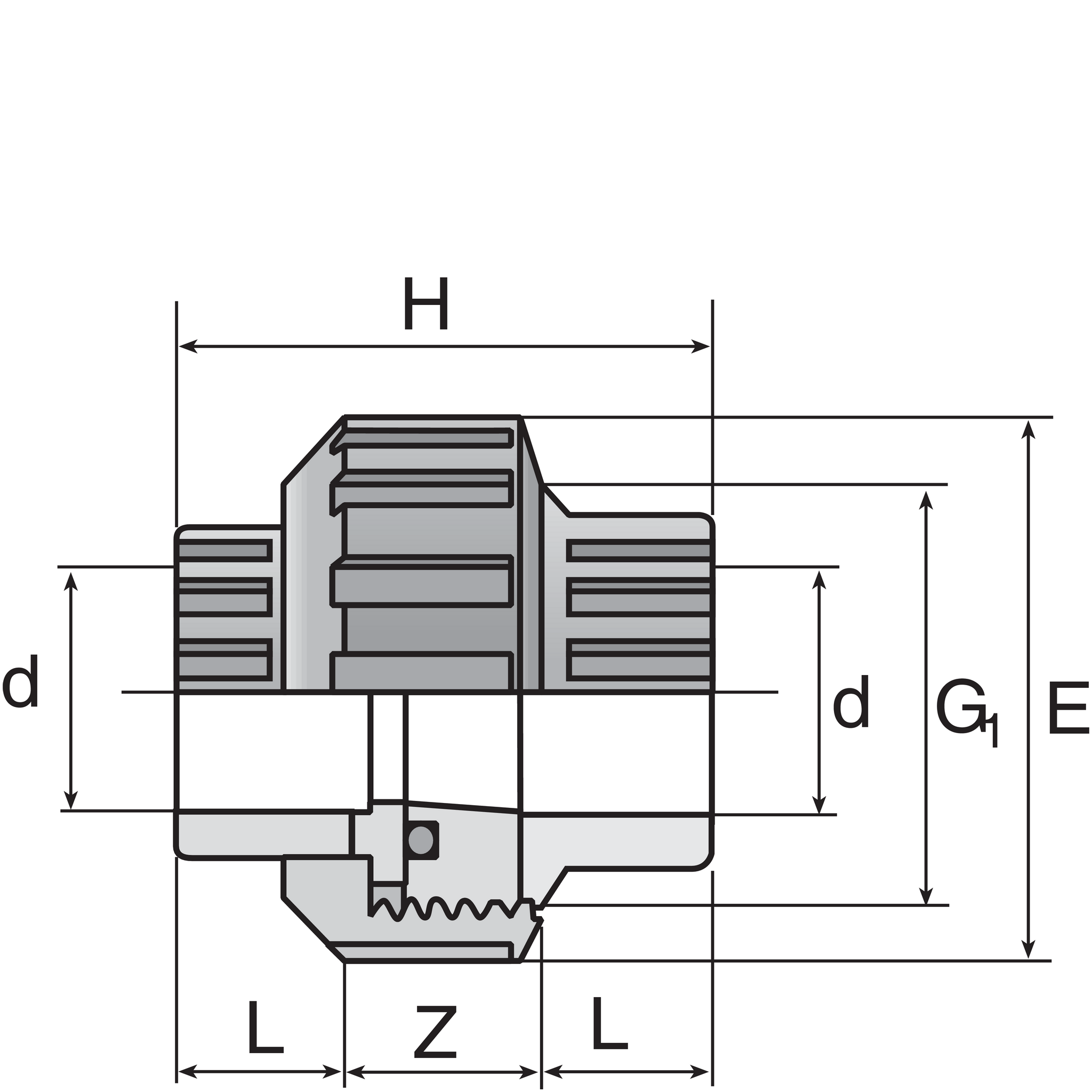

Visa alla mått +
Artikelnummer RSK PNdG1HLZEViktFiler
BIV012 2271013 16125/8"38121329 CAD/Step
BIV016 2271021 16163/4"4114133320 g CAD/Step
BIV020 2271039 16201"4516134135 g CAD/Step
BIV025 2271047 16251 1/4"5119135060 g CAD/Step
BIV032 2271054 16321 1/2"5722135885 g CAD/Step
BIV040 2271062 16402"67261572150 g CAD/Step
BIV050 2271070 16502 1/4"79311779175 g CAD/Step
BIV063 2271088 16632 3/4"98382298320 g CAD/Step
BIV090 2271104 10904"1355123140770 g CAD/Step
Datablad

Teknisk information
