Name: QEM11
SKU: 9142

Visa alla mått +

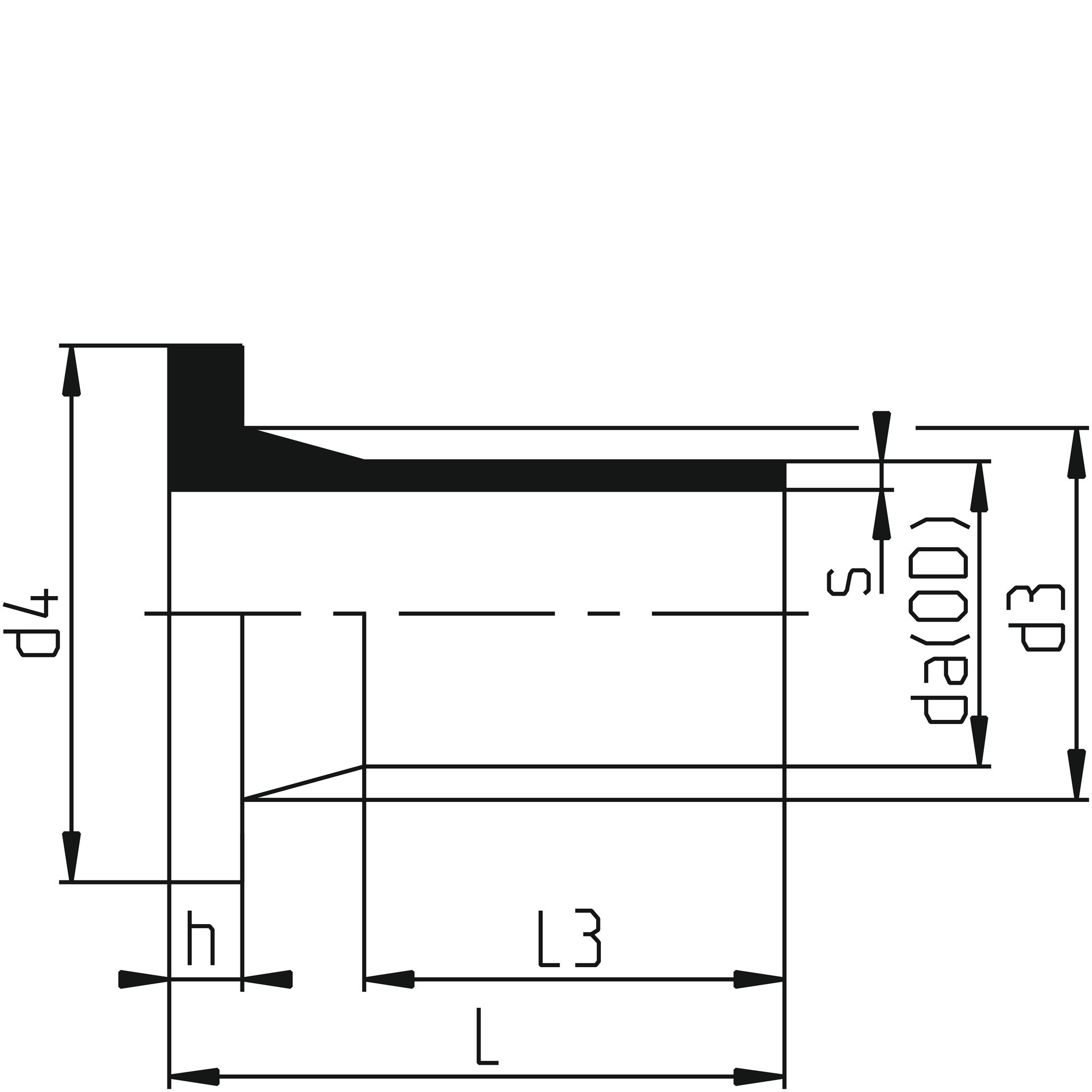

Artikelnummer	RSK	da(OD)	SDR	s	L	d3	d4	h	L3	Förpackningsantal	Filer
QEM11-020	2526012	20	SDR11	1.9	88	27	45	7	64		CAD/Step
QEM11-025	2526013	25	SDR11	2.3	88	33	58	9	64		CAD/Step
QEM11-032	2526014	32	SDR11	3	89	40	68	10	61	24	CAD/Step
QEM11-040	2526015	40	SDR11	3.7	102	50	78	11	67		CAD/Step
QEM11-050	2526016	50	SDR11	4.6	102	61	88	12	69		CAD/Step
QEM11-063	2526017	63	SDR11	5.8	124	75	102	14	78	12	CAD/Step
QEM11-075	2526018	75	SDR11	6.8	126	89	122	16	89		CAD/Step
QEM11-090	2526019	90	SDR11	8.2	143	105	138	17	104	6	CAD/Step
QEM11-110	2526020	110	SDR11	10	162	125	158	18	115		CAD/Step
QEM11-125	2526021	125	SDR11	11.4	173	132	158	25	124		CAD/Step
QEM11-140	2526022	140	SDR11	12.7	193	155	188	25	133		CAD/Step
QEM11-160	2526023	160	SDR11	14.6	203	175	212	25	148	4	CAD/Step
QEM11-180	2526024	180	SDR11	16.4	213	183	212	30	158		CAD/Step
QEM11-200	2526025	200	SDR11	18.2	213	232	268	32	140	4	CAD/Step
QEM11-225	2526026	225	SDR11	20.5	213	235	268	32	145		CAD/Step
QEM11-250	2526027	250	SDR11	22.7	210	285	320	35	132	2	CAD/Step
QEM11-280	2526028	280	SDR11	25.4	220	291	320	35	143	2	CAD/Step
QEM11-315	2526029	315	SDR11	28.6	238	335	370	35	154		CAD/Step

Datablad

Produktblad

EPD (Environmental Product Declaration)

EPD

Materialegenskaper

Materialegenskaper

QEM11
