Name: HEM11
SKU: 8936

Visa alla mått +

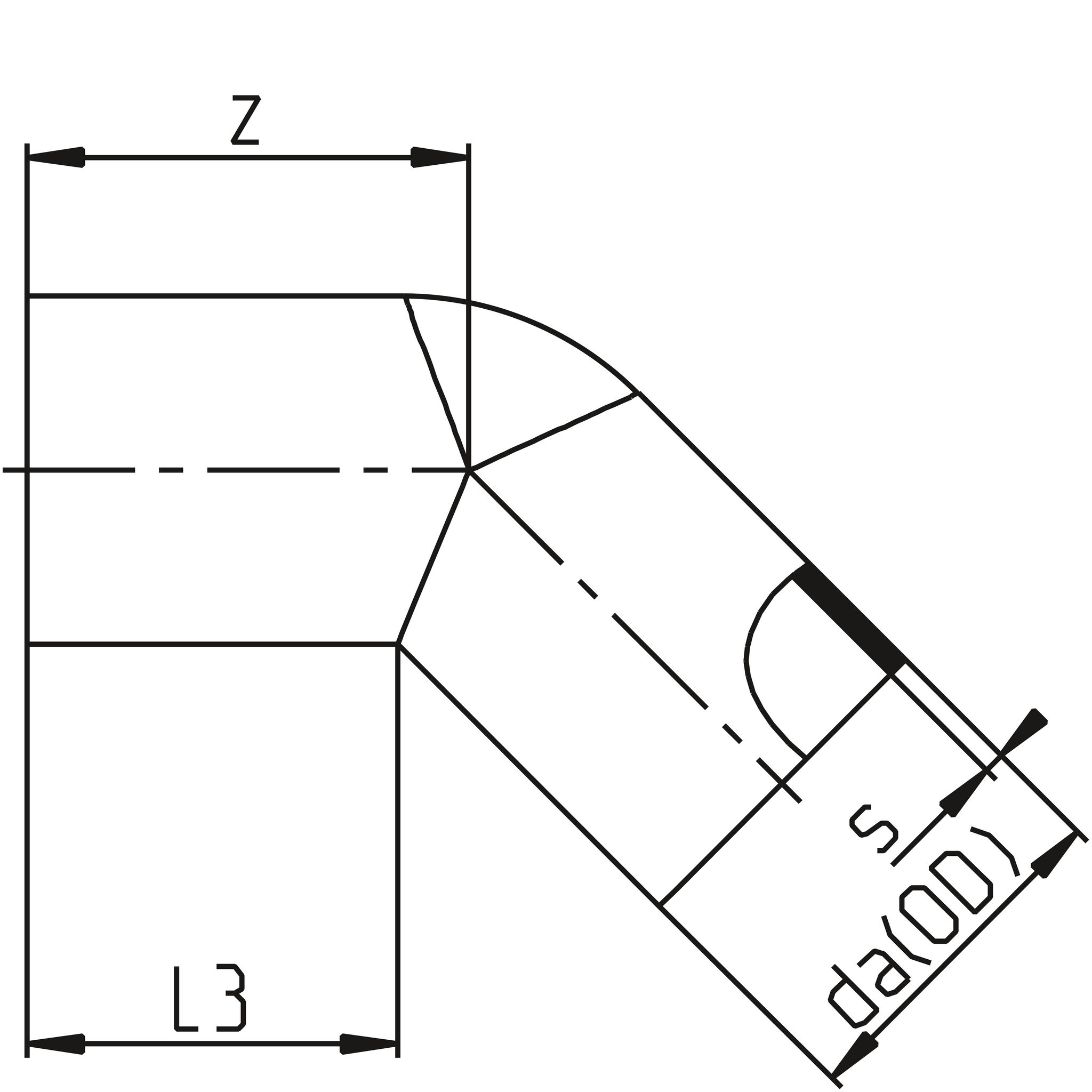

Artikelnummer	RSK	da(OD)	Förpackningsantal	SDR	s	z	L3	Filer
HEM11-020	2522544	20		SDR11	1.9	44	39	CAD/Step
HEM11-025	2522545	25		SDR11	2.3	48	42	CAD/Step
HEM11-032	2522546	32	35	SDR11	2.9	57	49	CAD/Step
HEM11-040	2522547	40		SDR11	3.7	63	53	CAD/Step
HEM11-050	2522548	50	15	SDR11	4.6	70	57	CAD/Step
HEM11-063	2522549	63		SDR11	5.8	80	67	CAD/Step
HEM11-075	2522550	75	12	SDR11	6.8	90	72.5	CAD/Step
HEM11-090	2522551	90		SDR11	8.2	104	82	CAD/Step
HEM11-110	2522552	110	4	SDR11	10	114	85	CAD/Step
HEM11-125	2522553	125		SDR11	11.4	132.5	99.5	CAD/Step
HEM11-140	2522554	140	3	SDR11	12.7	136	100	CAD/Step
HEM11-160	2522555	160	6	SDR11	14.6	156.5	116.5	CAD/Step
HEM11-180	2522556	180	2	SDR11	16.4	176.5	131.5	CAD/Step
HEM11-200	2522557	200		SDR11	18.2	170.5	120.5	CAD/Step
HEM11-225	2522558	225		SDR11	20.5	182.5	128	CAD/Step
HEM11-250	2522559	250		SDR11	22.7	217	160	CAD/Step
HEM11-280	2522560	280	3	SDR11	25.4	243	173	CAD/Step
HEM11-315	2522561	315	1	SDR11	28.6	256	179	CAD/Step

Datablad

Produktblad

EPD (Environmental Product Declaration)

EPD

Materialegenskaper

Materialegenskaper

HEM11
