Name: TRELP17
SKU: 55643

TRELP17

PE T-rör reducerat d280-630mm SDR17

Visa alla mått +

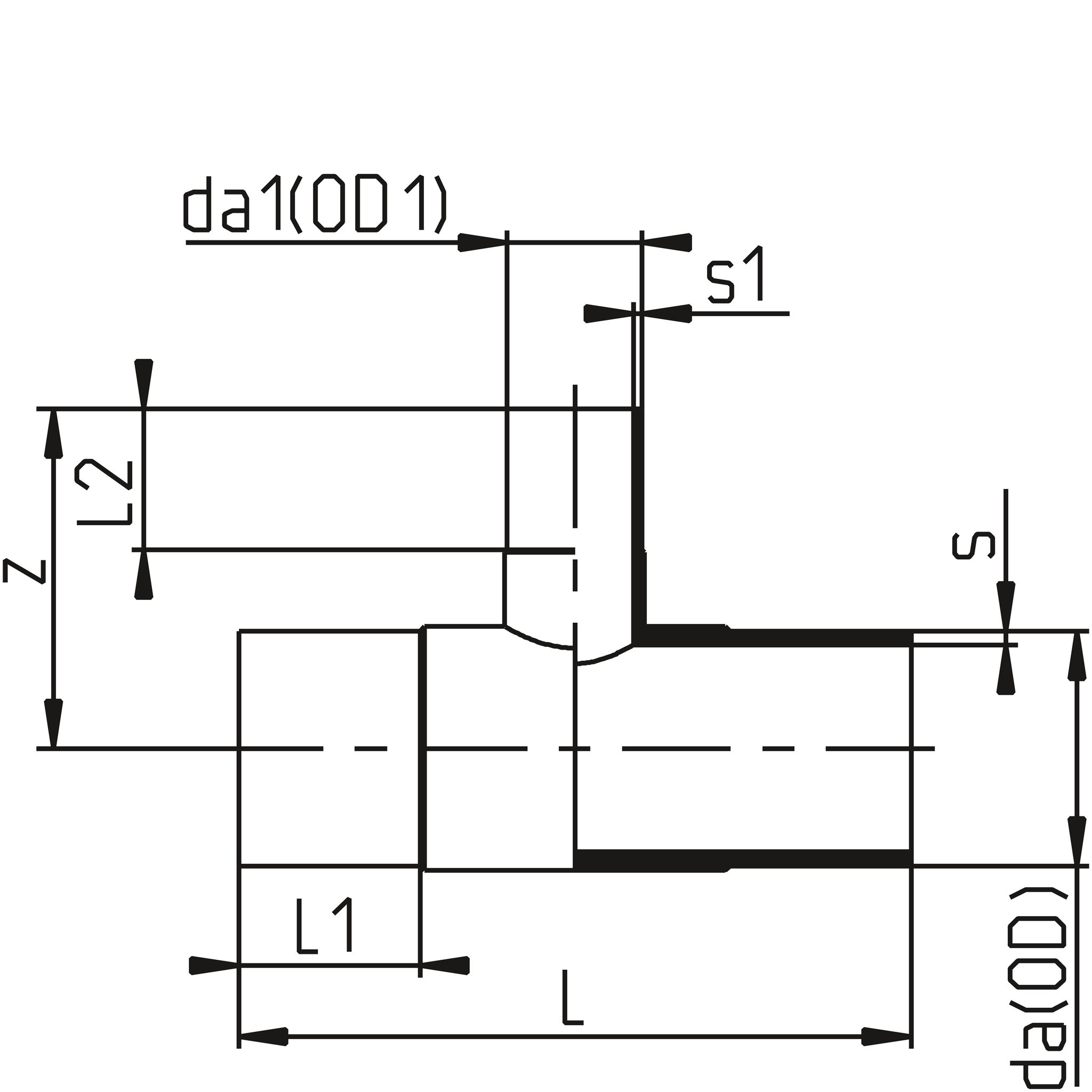

Artikelnummer	da*da1	SDR	s	s1	L	L1	Förpackningsantal	Filer
TRELP17-280-225	280x225	SDR17	16,6	13,4	678	142
TRELP17-355-110	355x110	SDR17	21.1	6.6	690	180	1	CAD/Step
TRELP17-355-250	355x250	SDR17	21.1	14.8	685	175	1	CAD/Step
TRELP17-400-225	400x225	SDR17	23.7	13.4	755	190	1	CAD/Step
TRELP17-450-160	450x160	SDR17	26.7	9.5	676	197	1	CAD/Step
TRELP17-450-225	450x225	SDR17	26.7	13.4	765	198	1	CAD/Step
TRELP17-450-315	450x315	SDR17	26.7	18.7	887	198	1	CAD/Step
TRELP17-500-160	500x160	SDR17	29.7	9.5	710	215	1	CAD/Step
TRELP17-500-250	500x250	SDR17	29.7	14.8	815	220	1	CAD/Step
TRELP17-500-315		SDR17	29.7	18.7	925	222	1
TRELP17-560-250	560x250	SDR17	33.2	14.8	960	240	1	CAD/Step
TRELP17-630-160	630x160	SDR17	37.4	9.5	800	255	1	CAD/Step
TRELP17-630-315	630x315	SDR17	37,4	18,7	1000	255	1	CAD/Step
TRELP17-630-250	630x250	SDR17	37.4	14.8	875	255	1	CAD/Step
