S60E17

PE Böj 60° SDR17

Visa alla mått +

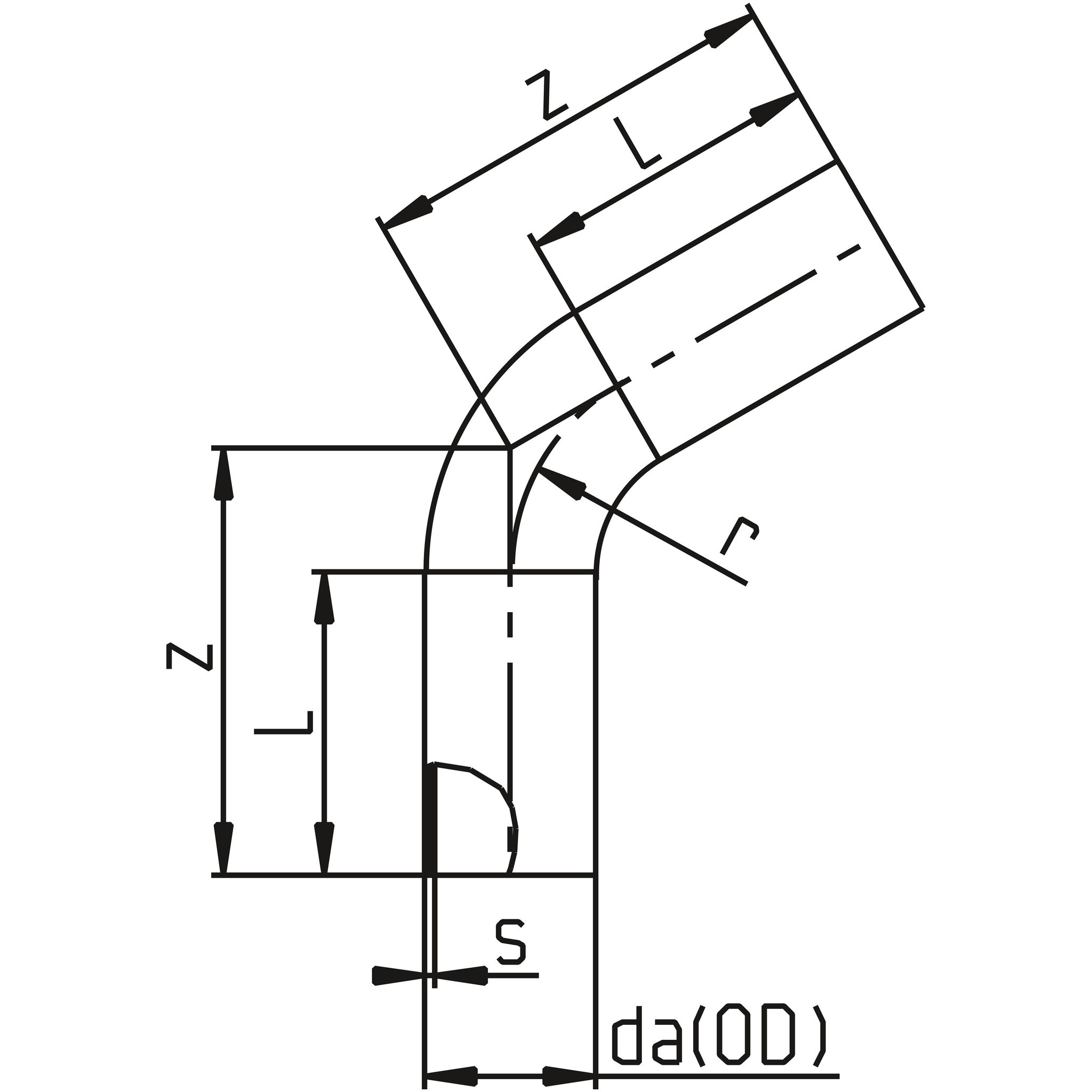

Artikelnummer	da(OD)	SDR	Z	L	R	S
S60E17-RC-090	90	SDR17	340	260	135	5.4
S60E17-RC-110	110	SDR17	340	240	165	6.6
S60E17-RC-125	125	SDR17	390	280	188	7.4
S60E17-RC-140	140	SDR17	400	280	210	8.3
S60E17-RC-160	160	SDR17	430	290	240	9.5
S60E17-RC-180	180	SDR17	460	300	270	10.7
S60E17-RC-200	200	SDR17	490	320	300	11.9
S60E17-RC-225	225	SDR17	530	330	338	13.4
S60E17-RC-250	250	SDR17	700	480	375	14.8
S60E17-RC-280	280	SDR17	630	271	420	16.6
S60E17-RC-315	315	SDR17	830	390	473	18.7
S60E17-RC-355	355	DSR17	900	415	533	21.1
S60E17-RC-400	400	SDR17	1000	458	600	23.7
S60E17-RC-450	450	SDR17	1115	417	900	26.7
S60E17-RC-500	500	SDR17	1300	506	1000	29.7
S60E17-RC-560	560	SDR17	980	350	877	33.2
S60E17-RC-630	630	SDR17	1200	350	955	37.4
