Name: S30E17
SKU: 55900

Visa alla mått +

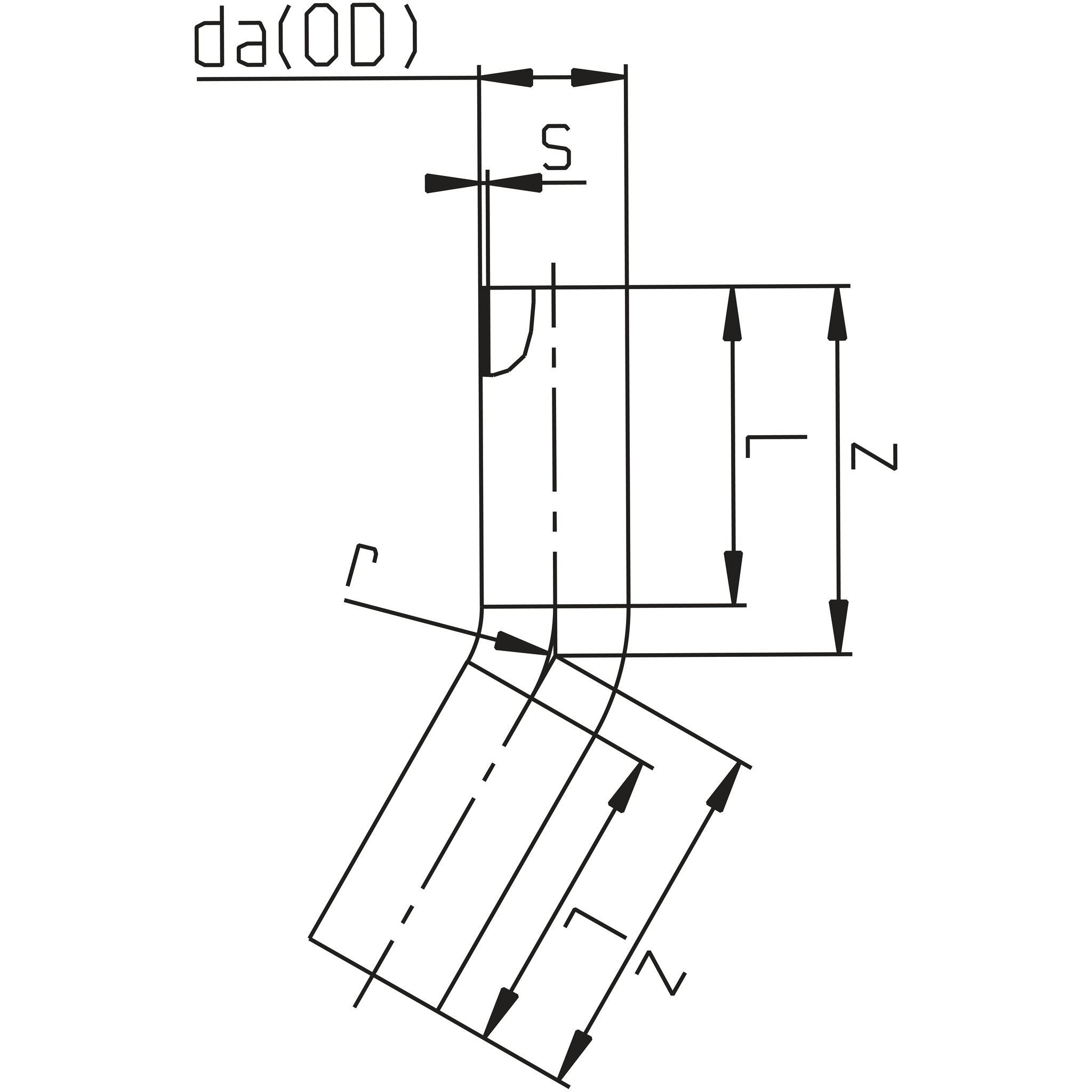

Artikelnummer	RSK	da(OD)	SDR	Z	L	S	Filer
S30E17-RC-090	077744090	90	SDR17	340	150	5.4	CAD/Step
S30E17-RC-110	077744110	110	SDR17	330	150	6.6	CAD/Step
S30E17-RC-125	077744125	125	SDR17	380	150	7.4	CAD/Step
S30E17-RC-140	077744140	140	SDR17	400	150	8.3	CAD/Step
S30E17-RC-160	077744160	160	SDR17	420	150	9.5	CAD/Step
S30E17-RC-180	077744180	180	SDR17	450	150	10.7	CAD/Step
S30E17-RC-200	077744200	200	SDR17	480	150	11.9	CAD/Step
S30E17-RC-225	077744225	225	SDR17	520	150	13.4	CAD/Step
S30E17-RC-250	077744250	250	SDR17	560	250	14.8	CAD/Step
S30E17-RC-280	077744280	280	SDR17	450	250	16.6	CAD/Step
S30E17-RC-315	077744315	315	SDR17	500	300	18.7	CAD/Step
S30E17-RC-355	077744355	355	SDR17	590	300	21.1	CAD/Step
S30E17-RC-400	077744400	400	SDR17	650	300	23.7	CAD/Step
S30E17-RC-450	077744450	450	SDR17	700	300	26.7	CAD/Step
S30E17-RC-500	077744500	500	SDR17	750	350	29.7	CAD/Step
S30E17-RC-560	077744560	560	SDR17	800	350	33.2	CAD/Step
S30E17-RC-630	077744630	630	SDR17	850	350	37.4	CAD/Step

Datablad

Produktblad

Teknisk information

Teknisk information

S30E17
