REL17

PE Reducering SDR17

  • PE100 Reducering koncentrisk SDR17
  • Långa ändar
  • Vatten PN10 vid +20 °C
  • Gas PN6 vid +20 °C
  • Se teknisk information för tillåtna tryck vid högre temperaturer
  • Formsprutad
  • Stum- och Elmuffsvetsning
  • Om artikelnummer innehåller RC så är materialet PE100-RC
  • Andra dimensioner mot förfrågan
Visa alla mått +

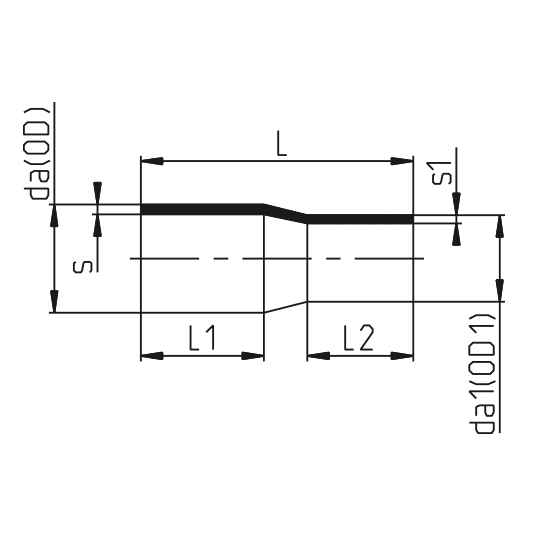

Artikelnummer RSK da*da1FörpackningsantalSDRsLs1L1L2Filer
REL17-075-040 75x4050SDR17
REL17-RC-075-063 2431836 75×6315SDR174.51463.87063
REL17-RC-090-063 2430762 90×6312SDR175.41723.87963
REL17-RC-090-075 2431837 90×7512SDR175.41634.57970
REL17-RC-110-063 2431838 110×638SDR176.61793.88263
REL17-110-075 2450395 110x7514SDR176.62154.59579
REL17-RC-110-090 2431839 110×905SDR176.61755.48279
REL17-RC-125-063 2431840 125×636SDR177.41873.88763
REL17-125-075 2450396 125x7512SDR177.42254.510075
REL17-RC-125-090 2431841 125×906SDR177.4191.55.48779
REL17-RC-125-110 2431842 125×1104SDR177.41936.68782
REL17-140-075 2450397 140x7510SDR178.32644.511672
REL17-140-090 2450398 140x9011SDR178.32485.411685
REL17-140-110 2427951 140x1107SDR178.32486.611690
REL17-RC-140-125 2431843 140×1256SDR178.32077.49590
REL17-RC-160-090 2431844 160×902SDR179.52155.49879
REL17-RC-160-110 2431845 160×1102SDR179.52226.69887.5
REL17-RC-160-125 2431846 160×1252SDR179.52277.49889.5
REL17-RC-160-140 2431847 160×1402SDR179.52348.39893.5
REL17-180-090 180x906SDR17
REL17-RC-180-125 2431848 180×1251SDR1710.72707.4132.595
REL17-RC-180-160 2431849 180×1601SDR1710.72709.5127101
REL17-200-110 200x110SDR1711.92556.612390
REL17-200-125 2450401 200×1252SDR1711.92837.4123103
REL17-200-140 2450402 200×140SDR1711.92518.3123100
REL17-RC-200-160 2426281 200×1601SDR1711.92539.511298.5
REL17-200-180 2450403 200×180SDR1711.925110.7126113
REL17-225-090 225x902SDR17
REL17-225-110 2450404 225x1101SDR1713.43116.613290
REL17-225-125 225x125SDR17
REL17-RC-225-160 2431851 225×1601SDR1713.42709.5125100.5
REL17-225-180 2426284 225x180SDR1713.428510.716399
REL17-225-200 2427941 225x200SDR1713.427010.7144112
REL17-RC-250-160 2426285 250×1603SDR1714.83189.5152112
REL17-250-180 2450405 250x180SDR1714.831010.7157113
REL17-RC-250-200 250×2001SDR1714.831711.9152124
REL17-RC-250-225 2431853 250×2251SDR1714.831213.4150132
REL17-280-200 2427942 280x200SDR1716.634011.9172123
REL17-280-225 2427943 280X225SDR1716.633413.4168138
REL17-RC-280-250 2431854 280×2501SDR1716.635514.8160156
REL17-RC-315-200 2431855 315×2001SDR1718.737511.9173134
REL17-RC-315-225 2431856 315×2251SDR1718.737513.4168132
REL17-RC-315-250 2431857 315×2501SDR1718.737514.8173154
REL17-315-280 2450408 315x280SDR1718.734616.6164164
REL17-355-250 2427946 355×2501SDR1721.142614.8175145
REL17-355-280 2427947 355×2801SDR1721.142616.6170155
REL17-355-315 2427948 355×3151SDR1721.142618.7175170
REL17-400-280 2430767 400×2801SDR1723.746516.6190155
REL17-400-315 2427949 400×3151SDR1723.746018.7190165
REL17-400-355 2427950 400×3551SDR1723.746321.1190185
REL17-450-280 2430768 450×280*SDR1726.7
REL17-450-315 2430769 450×315SDR1726.748018.7202157
REL17-450-355 2430770 450×355SDR1726.748021.1202172
REL17-450-400 2430771 450×400SDR1726.748023.7202187
REL17-500-315 2430773 500×315*SDR1729.7
REL17-500-355 2430774 500×3551SDR1729.752021.1222172
REL17-500-400 2430775 500×4001SDR1729.752023.7222187
REL17-500-450 2430776 500×4501SDR1729.752026.7222202
REL17-560-355 2430777 560×355*SDR1717
REL17-560-400 2430778 560×400*SDR1717
REL17-560-450 2430779 560×450SDR1717
REL17-560-500 2430780 560×500*SDR1717
REL17-630-355 630×3551SDR1737,465021,1265172
REL17-630-400 2430781 630×400SDR171765023.7265187
REL17-630-450 2430782 630×450SDR171765026.7265202
REL17-630-500 2430783 630×500SDR171765029.7265222
REL17-630-560 2430784 630×560*SDR1717
REL17-RC-500-315 500x31511729.777018.77140
