REL-EX17

PE Reducering excentrisk SDR17

  • PE100-RC Reducering excentrisk SDR17
  • Långa ändar
  • Vatten PN16 vid +20 °C
  • Gas PN10 vid +20 °C
  • Se teknisk information för tillåtna tryck vid högre temperaturer
  • Formsprutad
  • Stum- och Elmuffsvetsning

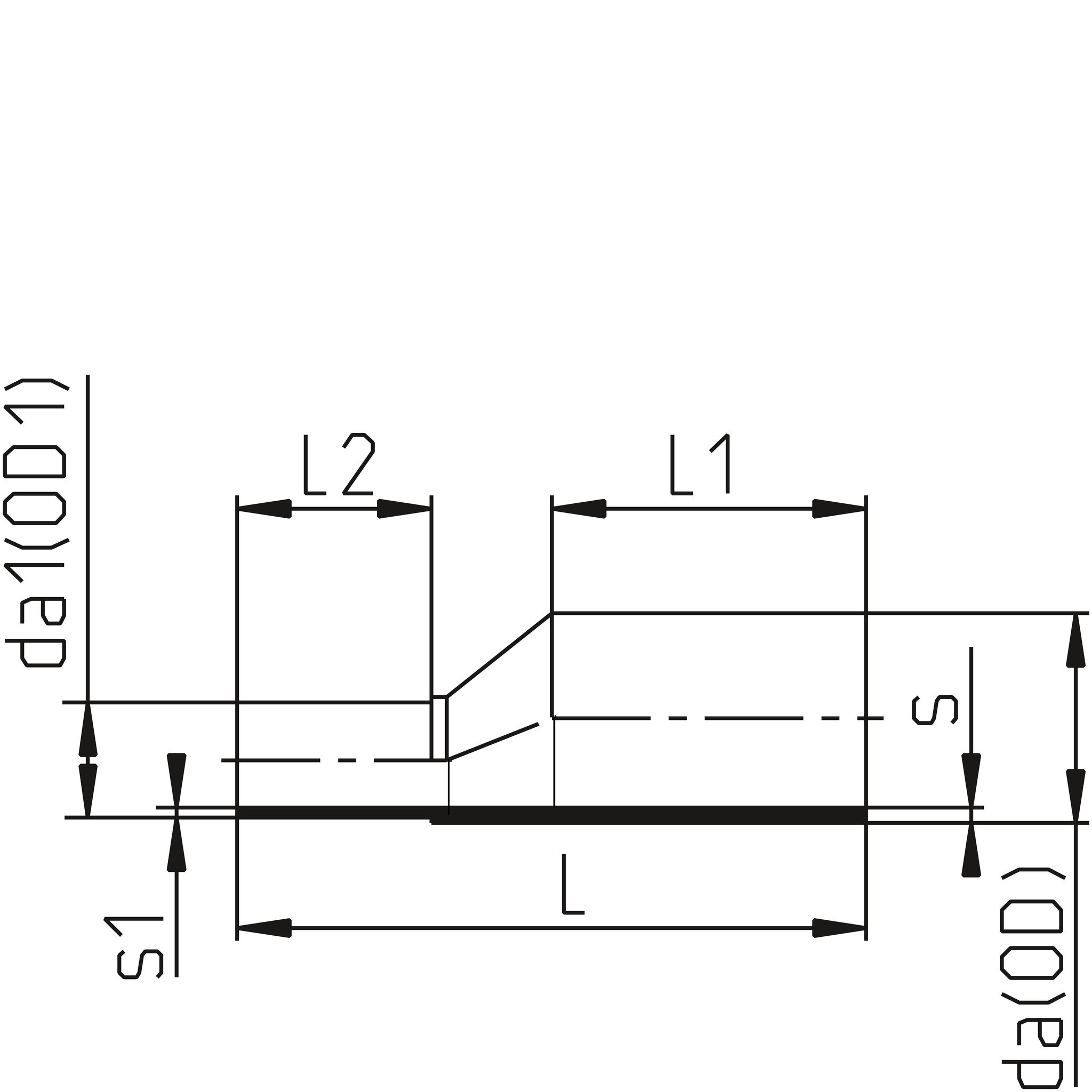

Visa alla mått +
Artikelnummer RSK dsp1FörpackningsantalSDRsLs1L1L2Filer
REL-EX17-RC-063-050 2519143 63×5020SDR173.817337256
REL-EX17-RC-075-050 2519144 75×5014SDR174.519538156
REL-EX17-RC-075-063 2519145 75×6312SDR174.51953.88263
REL-EX17-RC-090-063 2519146 90×639SDR175.42163.89464
REL-EX17-RC-090-075 2519147 90×759SDR175.42194.59570
REL-EX17-RC-110-063 2519148 110×635SDR176.62463.810163
REL-EX17-RC-110-090 2519149 110×905SDR176.62415.49679
REL-EX17-RC-125-063 2519150 125×638SDR177.42653.8107.563
REL-EX17-RC-125-090 2519151 125×908SDR177.42645.4106.579
REL-EX17-RC-125-110 2519152 125×1104SDR177.42646.6105.586
REL-EX17-RC-140-125 2519153 140×1257SDR178.32857.4111.593
REL-EX17-RC-160-090 2519154 160×906SDR179.53105.4117.579
REL-EX17-RC-160-110 2519155 160×1106SDR179.53106.6118.585
REL-EX17-RC-160-125 2519156 160×1257SDR179.53107.4118.591
REL-EX17-RC-160-140 2519157 160×1404SDR179.53098.3116.596
REL-EX17-RC-180-090 2519158 180×904SDR1710.73455.412579
REL-EX17-RC-180-125 2519159 180×1253SDR1710.73537.4134.592.5
REL-EX17-RC-180-160 2519160 180×1606SDR1710.73409.5131.5101.5
REL-EX17-RC-200-160 2519161 200×1602SDR1711.93739.5138.5100
REL-EX17-RC-200-180 2519162 200×1802SDR1711.938010.7142.5107
REL-EX17-RC-225-160 2519163 225×1601SDR1713.44049.5151.5101.5
REL-EX17-RC-225-180 2519164 225×1802SDR1713.439910.7151.5108.5
REL-EX17-RC-225-200 2519165 225×2002SDR1713.440411.9151.5115.5
REL-EX17-RC-250-200 2519166 250×2001SDR1714.844011.9180120
REL-EX17-RC-250-225 2519167 250×2251SDR1714.844513.4182.5124.5
