DU-DOG1E

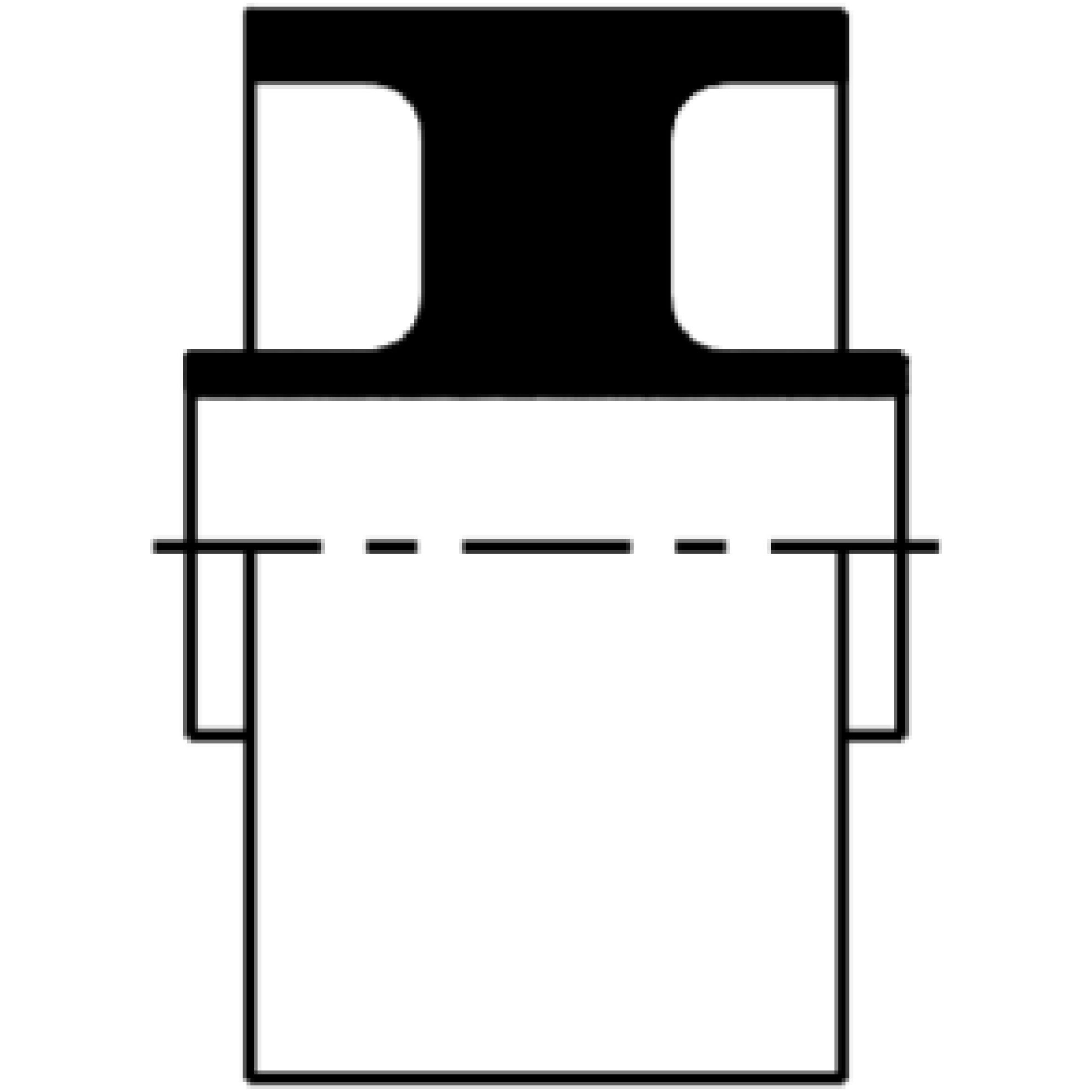

PE Dogbone typ 1

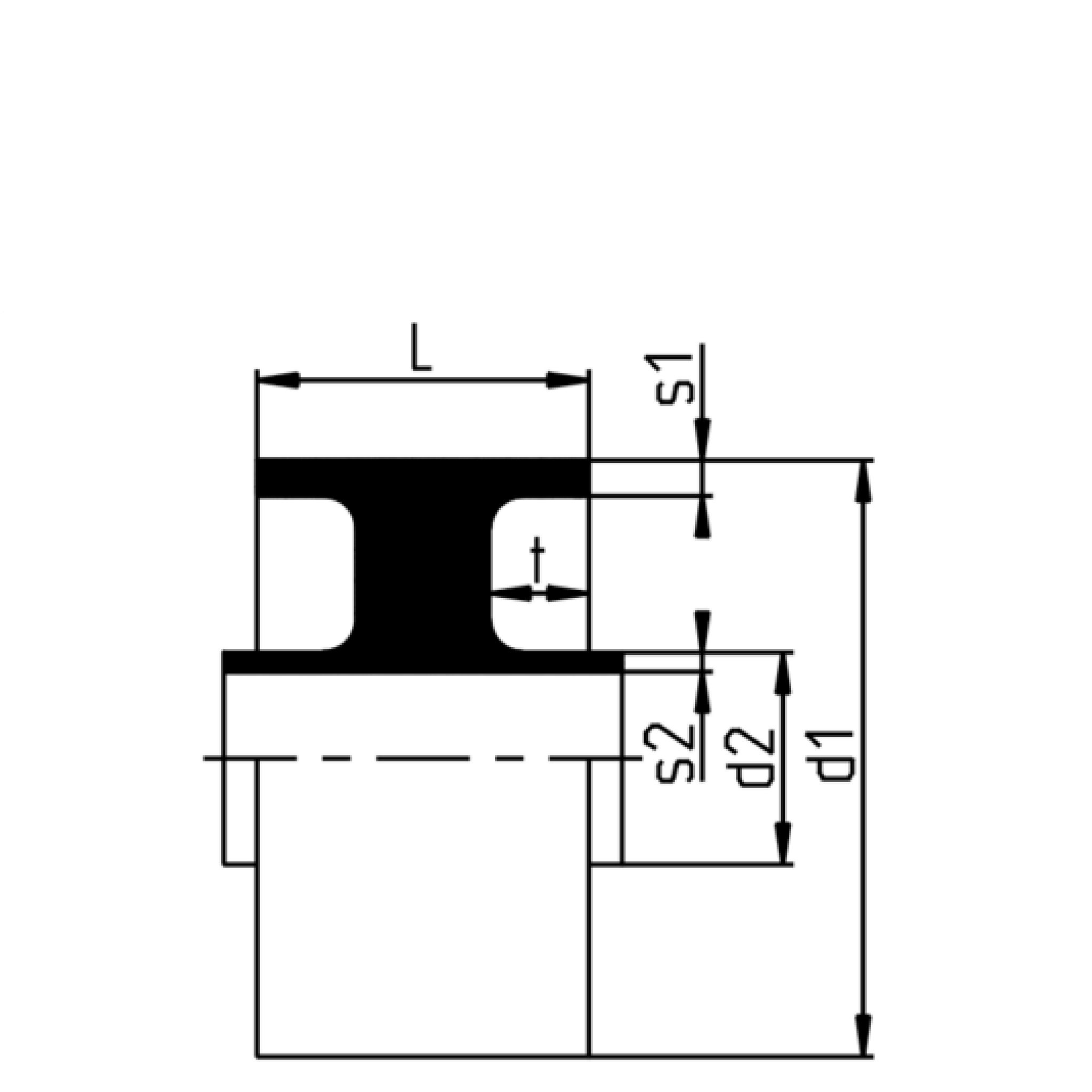

Visa alla mått +

Artikelnummer	d	SDR	PN	L	s1	s2	d1	d2
DU-DOG1E11-032	32/90	11/17	16	50	5.4	2.9	90	32
DU-DOG1E11-063	63/110	11/33	16	50	3.4	5.8	110	63
DU-DOG1E11-090	90/160	11/33	16	50	4.9	8.2	160	90
DU-DOG1E11-110	110/200	11/33	16	50	6.2	10	200	110
DU-DOG1E11-160	160/280	11/33	16	50	8.6	14.6	280	160
DU-DOG1E11-200	200/315	11/33	16	50	9.7	18.2	315	200
DU-DOG1E11-250	250/355	11/33	16	50	10.9	22.8	355	250
DU-DOG1E17-090	90/160	17/33	10	50	4.9	5.4	160	90
DU-DOG1E17-110	110/200	17/33	10	50	6.2	6.6	200	110

Datablad

Materialegenskaper
