SO83221

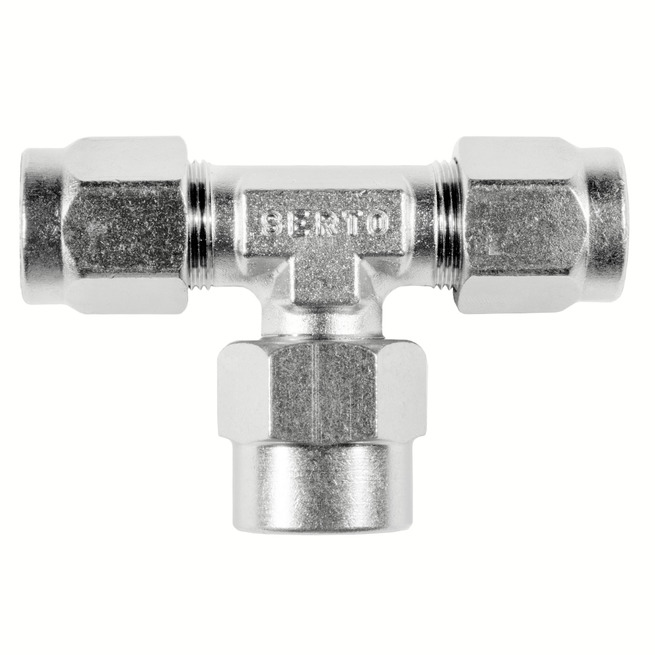

Mässing T-rör inv gänga förnicklad

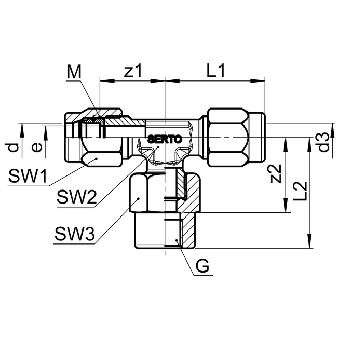

Artikelnummer	d	G	d3	bar	M	SW1/SW2/SW3	L1/L2	z1/z2	e
0383201100	6	1/8	6	200	M10x1	12/10/14	23.5/29	16/19	4
0383201110	6	1/4	6	200	M10x1	12/10/17	23.5/30	16/19	4
0383201270	10	1/4	10	80	M14x1	17/14/17	30.5/34.5	20.5/23.5	8
0383201280	10	3/8	10	80	M14x1	17/14/22	30.5/35.5	20.5/23.5	8
0383201390	12	3/8	12	80	M16x1	19/17/22	32.5/36.5	21.5/24.5	10
0383201580	15	3/8	15	25	M20x1.5	24/19/24	36/39	23.5/27	13
