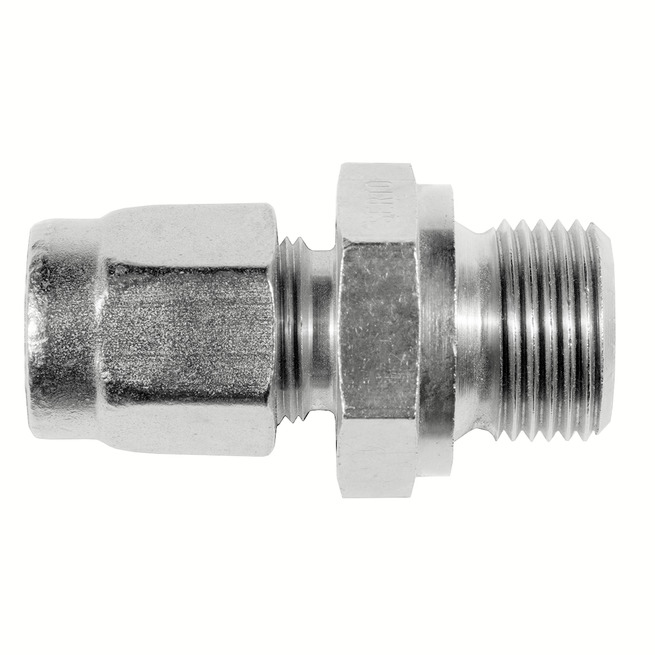

SO81124

union utv. gänga förnicklad

Visa alla mått +

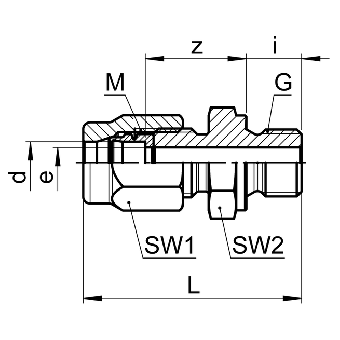

Artikelnummer	d	G	bar	M	SW1	SW2	L	D	i	z	e
0381141040	3	1/8	125	M6x0.75	8	14	25	14.5	8	12	2.5
0381141060	4	1/8	125	M8x1	10	14	28.5	14.5	8	14.5	3.4
0381141065	4	1/4	125	M10x1	12	19	35.5	18.5	8	16	3.4
0381141082	5	1/8	125	M8x1	10	14	29	14.5	8	14.5	3.5
0381141100	6	1/8	200	M10x1	12	14	30	14.5	8	14.5	4.5
0381141110	6	1/4	200	M10x1	12	19	35.5	18.5	12	16	4.5
0381141160	8	1/8	125	M12x1	14	14	31.5	14.5	8	15.5	4.5
0381141170	8	1/4	125	M12x1	14	19	37	18.5	12	17	6.5
0381141180	8	3/8	125	M12x1	14	22	38.5	22.5	12	18.5	6.5
0381141280	10	3/8	80	M14x1	17	22	40.5	22.5	12	18.5	8.5
0381141380	12	1/4	40	M16x1	19	19	40	18.5	12	17	7
0381141390	12	3/8	40	M16x1	19	22	41.5	22.5	12	18.5	10

Datablad
