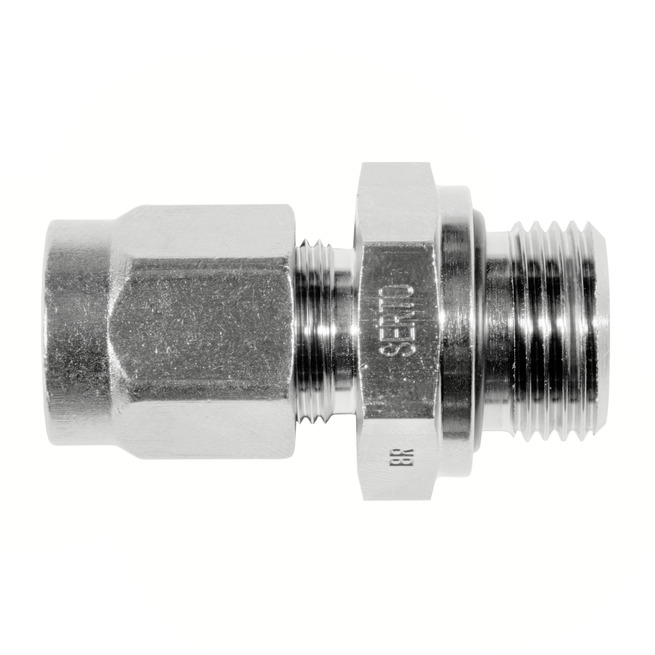

SO81124 OR

Union utv gänga förnicklad

Visa alla mått +

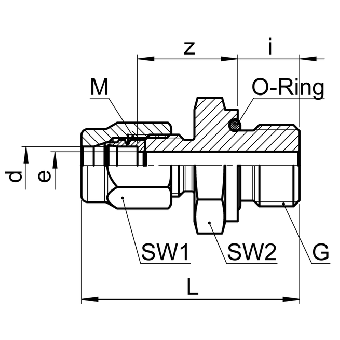

Artikelnummer	d	G	bar	M	SW1	SW2	L	D	i	OR	z	e
0381171060	4	1/8	100	M10x1	12	14	30	14.5	8	8.73x1.78	14.5	3.4
0381171065	4	1/4	100	M10x1	12	19	33.5	18.5	10	11.1x1.78	16	3.4
0381171082	5	1/8	100	M10x1	12	14	30	14.5	8	8.73x1.78	14.5	4
0381171110	6	1/4	200	M10x1	12	19	33.5	18.5	10	11.1x1.78	16	4.5
0381171170	8	1/4	125	M12x1	14	19	35	18.5	10	11.1x1.78	17	6.5
0381171270	10	1/4	80	M14x1	17	19	37	18.5	10	11.1x1.78	17	6.5
0381171280	10	3/8	80	M14x1	17	22	38.5	22.5	10	14x1.78	18.5	8.5
0381171390	12	3/8	80	M16x1	19	22	39.5	22.5	10	14x1.78	18.5	10
0381171400	12	1/2	80	M16x1	19	27	42	27	12	18.72x2.62	19	10
0381171646	12	1/2	25	M24x1.5	27	27	47.5	27	12	18.72x2.62	21.5	13

Datablad
