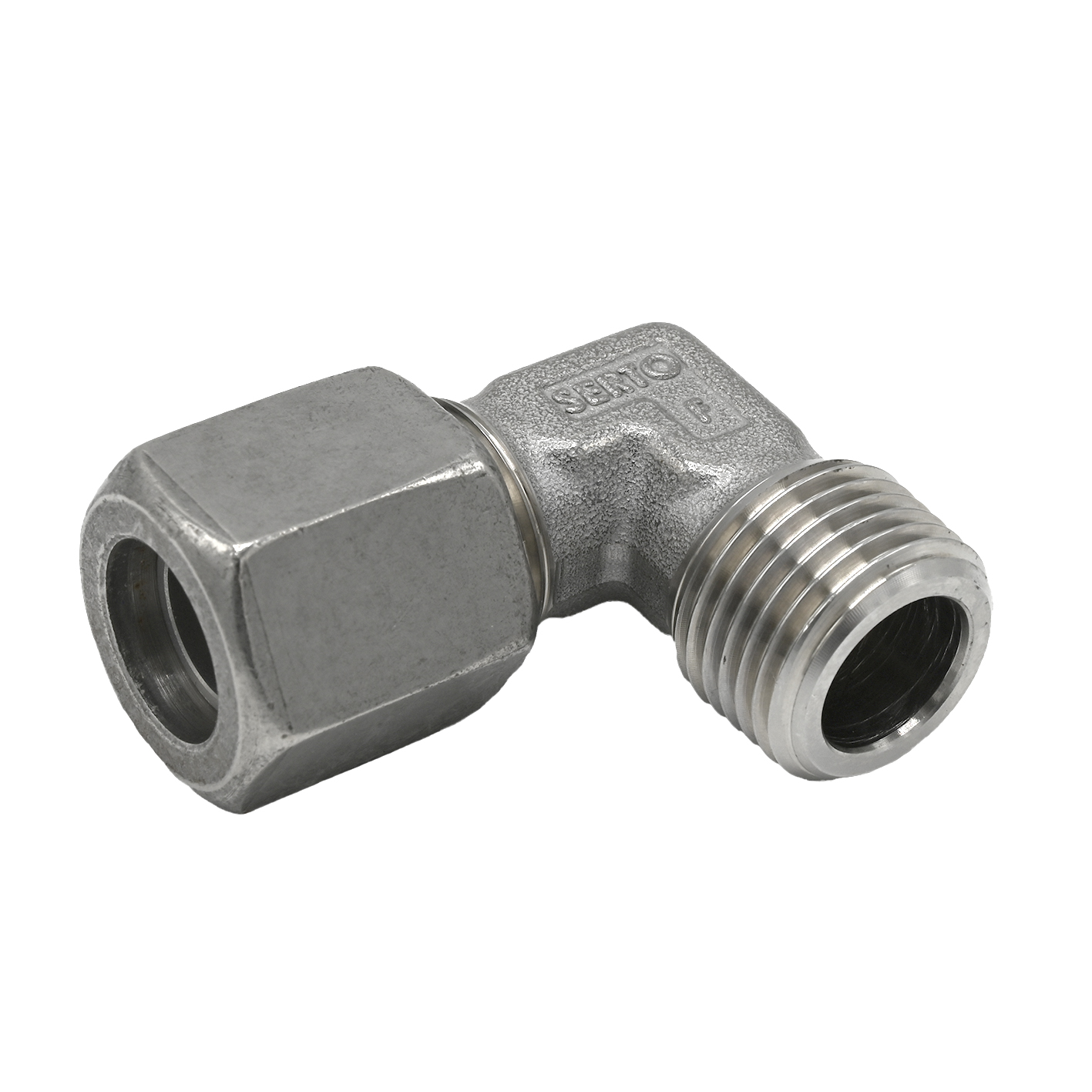

Name: SO52421
SKU: 39285

Visa alla mått +

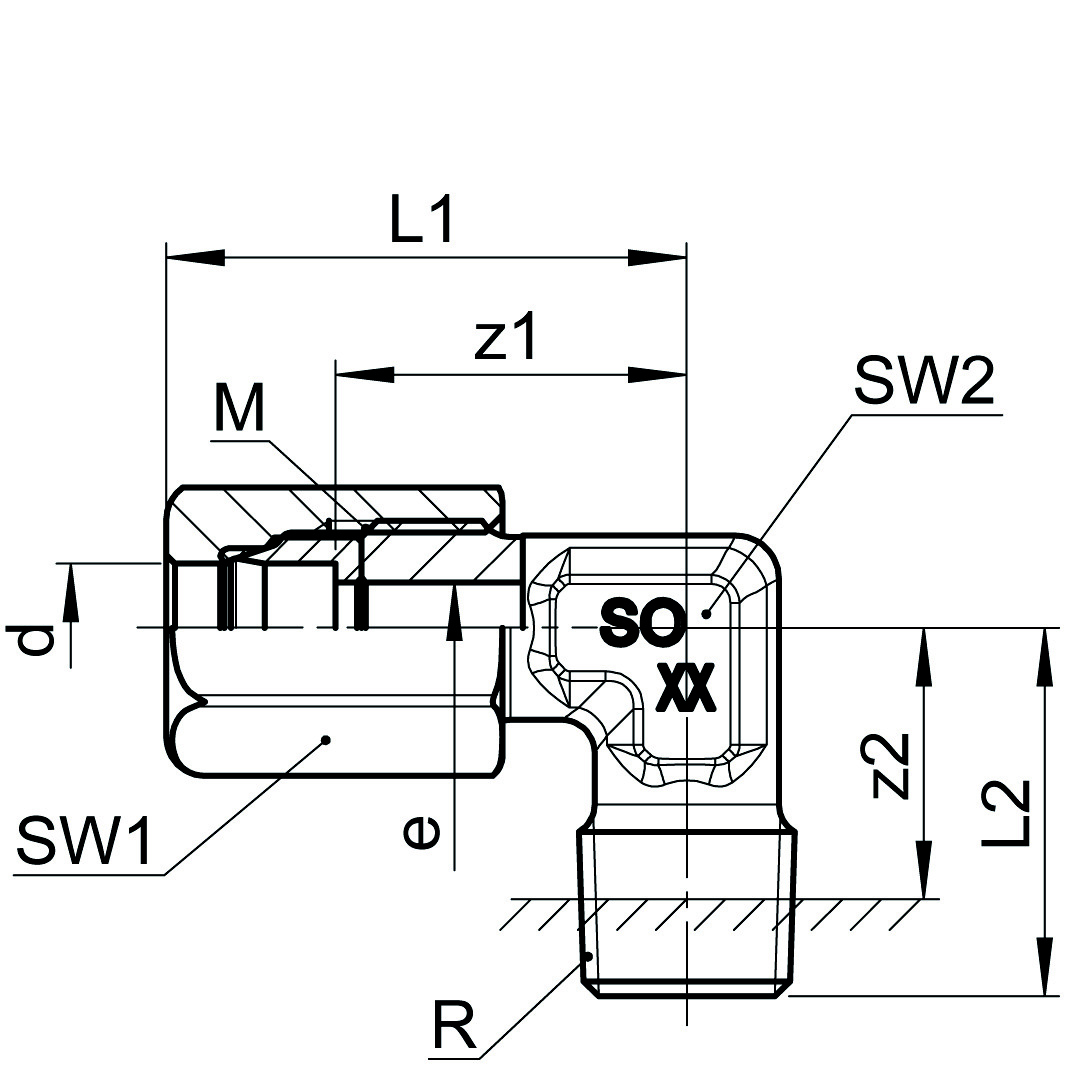

Artikelnummer	d	R	bar	M	e	SW1/SW2	z1/z2	L1/L2
0582401020	2	1/8	250	8 x 1	1.5	10/9	16/13	21,5/17
0582401040	3	1/8	250	8 x 1	2.5	10/9	16/13	22/17
0582401060	4	1/8	250	8 x 1	3.5	10/9	16/13	21,5/17
0582401082	5	1/8	250	8 x 1	3.5	10/9	16/13	22/17
0582401100	6	1/8	200	10 x 1	4.5	12/9	16/13	24/17
0582401110	6	1/4	200	10 x 1	4.5	12/10	18/18,5	26/22,5
0582401160	8	1/8	200	12 x 1	6	14/10	18/13,5	26,5/18
0582401170	8	1/4	200	12 x 1	6.5	14/10	18/18,5	26,5/22,5
0582401180	8	3/8	200	12 x 1	6.5	14/14	22/19,5	30,5/26
0582401270	10	1/4	160	14 x 1	8.5	17/12	20,5/19	32/25
0582401280	10	3/8	160	16 x 1	8.5	19/14	21,5/19,5	34/26
0582401380	12	1/4	160	16 x 1	8.5	19/14	21,5/19	33,5/25,4
0582401390	12	3/8	160	16 x 1	10	19/14	21,5/19,5	33,5/26
0582401400	12	1/2	100	20 x 1,5	10	24/17	24/21,5	38/29,5
0582401504	14	1/2	100	20 x 1,5	12	24/17	24,5/21,5	38,5/29,5
0582401534	15	1/2	100	20 x 1,5	13	24/17	24,5/21,5	38,5/29,5
0582401646	18	1/2	100	24 x 1,5	15	30/24	33,5/27	49/35
0582401768	22	3/4	64	28 x 1,5	19	32/27	37,5/35,5	56,5/45
0582401850	28	1	40	36 x 2	24	41/36	38/29	57,5/45
0582401135	6.35	1/8	200	10 x 1	4.5	12/9	16/13	24/17
0582401140	6.35	1/4	200	12 x 1	4.5	14/10	18/18,5	26,5/22,5
0582401230	9.52	1/4	160	14 x 1	8	17/12	20,5/19	32/25
0582401434	12.7	1/2	100	20 x 1,5	11	24/17	24,5/21,5	38/29,5
0582401474	13.5	1/2	100	20 x 1,5	12	24/17	24,5/21,5	38,5/29,5
