Name: SO02421 NPT
SKU: 70442

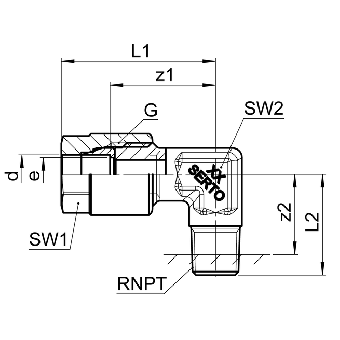

Artikelnummer	d	G	bar	R	SW1	SW2	L1	L2	z1	z2	e
2482402060	4	1/8	125	NPT1/8	12	10	26.5	19.5	20	13	3.4
2482402065	4	1/8	125	NPT1/4	12	11	30	25	22	15	3.4
2482402082	5	1/8	125	NPT1/8	12	10	27	19.5	20	13	4
2482402120	6	1/8	125	NPT3/8	12	11	30	25	22	16	4
2482402135	6.35	1/8	125	NPT1/8	12	10	28	19.5	20	13	4
2482402140	6.35	1/8	125	NPT1/4	12	11	30	25	22	15	4
2482402180	8	1/4	125	NPT3/8	14	11	31.5	25	23	16	6
2482402230	9.52	3/8	125	NPT1/4	17	14	35	25	23	15	8
2482402235	9.52	3/8	125	NPT3/8	17	14	35	25	23	16	8
2482402280	10	3/8	100	NPT3/8	17	14	35	25	23	16	8
2482402285	12	3/8	100	NPT1/2	19	19	41	31.5	29	18	8
2482402380	12	1/2	100	NPT1/4	19	17	39	25.5	26	15	7
2482402400	12	1/2	100	NPT1/2	19	19	42	31.5	29	18	12
2482402432	12.7	1/2	100	NPT3/8	22	17	39	25	26	16	10
2482402434	12.7	1/2	100	NPT1/2	22	19	42	31.5	29	18	11
2482402502	14	1/2	64	NPT3/8	22	17	42.5	25	26.5	16	10
2482402504	14	1/2	64	NPT1/2	22	19	45.5	31.5	29.5	18	12
2482402532	15	1/2	64	NPT3/8	22	17	42.5	25	26.5	16	10
2482402534	15	1/2	64	NPT1/2	22	19	45.5	31.5	29.5	18	12

Datablad

Produktblad

SO02421 NPT
